CP-643ME-04 - 第47页

番号 図番 & ｺ ｰ ﾄ ﾞ 番号 個数 品名 規格 備考 N o . D r g . N o . & C o d e N o . Q T Y D e s c r i p t i o n R a t i n g R e m a r k s 1 0 8 H 5 2 7 5 A B O L T , H E X S O C K E T ﾎ ﾞ ﾙ ﾄ 六角穴 M 3 X 8 L 1 0 9 H 5 2 7 6 A B O L…

100%1 / 224
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WSS4911 4 COVER ｶﾊﾞｰ
3WSS4351 2 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ
5WSS4720 1 BKT, SENSOR BKT ｾﾝｻ
6WSS4730 1 BKT, SENSOR BKT ｾﾝｻ
7WSS4740 2 PLATE ﾌﾟﾚｰﾄ
8ACSSS8020 4 DOG ﾄﾞｯｸﾞ X86∼
16Y3079N 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-M5
18H1063T 1
VALVE, MECHANICAL
ﾊﾞﾙﾌﾞ ﾒｶﾆｶﾙ VM133-M5-01
19S4032T 1
SENSOR
ｾﾝｻ UM-T50TV
20H5056M 1
HOLDER
ﾎﾙﾀﾞ TM-06
21K5169A 10
SCREW, C/R COUNTERSUNK
小ﾈｼﾞ 十穴皿        
M2.5X4L
27WSS4842 1 GUIDE ｶﾞｲﾄﾞ
28WSS4874 1 CLAMPER ｸﾗﾝﾊﾟ
29WSS4884 1 CLAMPER ｸﾗﾝﾊﾟ
30WSS4892 1 BLOCK ﾌﾞﾛｯｸ
31WSS4921 1 COVER 蓋
32WSS4934 1 COVER 蓋
33CSSS1200 3 PIN, PIVOT ﾋﾟﾝ 支点
34WSS5330 3 SPRING ｽﾌﾟﾘﾝｸﾞ
35WSS4902 1 BLOCK ﾌﾞﾛｯｸ
60CSSS1150 2 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ R→L…1
61CSSS1180 1 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ R→L…2
62CSSS1170 1 SLIDER ｽﾗｲﾀﾞ
63CSSS1190 1 LEVER ﾚﾊﾞｰ
64CSSS1140 2 SLIDER ｽﾗｲﾀﾞ
65CSSS1160 2 LEVER ﾚﾊﾞｰ
66CCSY0200 1 BKT BKT X146∼
73CSSS0550 1 BKT BKT
74CSSS0560 1 BKT BKT
82H10661 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL F15T4-F4-PL3-DC24V X116∼
84K4150H 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ TKP013-2B-R18-24L X146∼
96Y3049W 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-01S(ｼﾛ)
97S1056A 4 SILENCER ｻｲﾚﾝｻ AN101-01
98CSSZ0440 1 BKT, VALVE BKT ﾊﾞﾙﾌﾞ X116∼
99S1021A 3
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-3
107H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
6.2.基板クランプ Board ciamping unit(CSSS)
CP-643ME PARTS LIST ver04
6-7
6.2.基板クランプ(CSSS)
6.2.Board clamping unit(CSSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
108H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L
109H5276A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X10L
111H5287A
BOLT, HEX
ﾎﾞﾙﾄ 六角         
M4X8L
112H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L
114H5293A
BOLT, HEX
ﾎﾞﾙﾄ 六角         
M4X25L
116H5298A
BOLT, HEX
ﾎﾞﾙﾄ 六角         
M5X10L
118H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L
119H5304A
BOLT, HEX
ﾎﾞﾙﾄ 六角         
M5X25L
120W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
121W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
122W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
123K5359E
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿       
M4X10L
128W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L
129K5255T
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X6L
131K5261A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M5X10L
133CSSS0910 1 SPACER ｽﾍﾟｰｻ X116∼
134H5326A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X25L
135W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-6-H
136Y30491 4
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJW06-01S(ｼﾛ)
137CSSS0671 1 BKT BKT
138.
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M3X35L
139WSS4302 2 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
140WSS4312 2 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
141CSSS1360 2 PIN, LOCATING ﾋﾟﾝ 位置決め φ3 X116∼
142CSSS1370 2 PIN, DIAMOND-SHAPED ﾋﾟﾝ ﾀﾞｲﾔ φ3 X116∼
144H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L
145CSSS1380 2 PIN, LOCATING ﾋﾟﾝ 位置決め φ4 X116∼
146CSSS1390 2 PIN, DIAMOND-SHAPED ﾋﾟﾝ ﾀﾞｲﾔ φ4 X116∼
[注1.仕様選択部品]WSS4760(3ﾟ),WSS4781(4ﾟ),WSS5000(3.2ﾟ),WSS5020(2.4ﾟ),WSS5040(2.5ﾟ),WSS5060(3.07ﾟ),WSS5080(3.4ﾟ)
WSS5100(3.9ﾟ),WSS5120(3.95ﾟ),WSS5140(3.5ﾟ),WSS5310(3.4ﾟ)
[注2.仕様選択部品]AWSS8510(3ﾟ),AWSS8520(4ﾟ),AWSS8530(3.2ﾟ),AWSS8540(2.4ﾟ),AWSS8550(2.5ﾟ),AWSS8560(3.07ﾟ),AWSS8570(3.4ﾟ)
AWSS8580(3.9ﾟ),AWSS8590(3.95ﾟ),AWSS8600(3.5ﾟ),AWSS8610(3.45ﾟ)
[Note.1:(Specified part selection)]WSS4760(3ﾟ),WSS4781(4ﾟ),WSS5000(3.2ﾟ),WSS5020(2.4ﾟ),WSS5040(2.5ﾟ),WSS5060(3.07ﾟ),WSS5080(3.4ﾟ)
WSS5100(3.9ﾟ),WSS5120(3.95ﾟ),WSS5140(3.5ﾟ),WSS5310(3.4ﾟ)
6.2.基板クランプ Board ciamping unit(CSSS)
CP-643ME PARTS LIST ver04
6-8
6.2.基板クランプ(CSSS)
6.2.Board clamping unit(CSSS)
[Note.2:(Specified part selection)]AWSS8510(3ﾟ),AWSS8520(4ﾟ),AWSS8530(3.2ﾟ),AWSS8540(2.4ﾟ),AWSS8550(2.5ﾟ),AWSS8560(3.07ﾟ),AWSS8570(3.4ﾟ)
AWSS8580(3.9ﾟ),AWSS8590(3.95ﾟ),AWSS8600(3.5ﾟ),AWSS8610(3.45ﾟ)

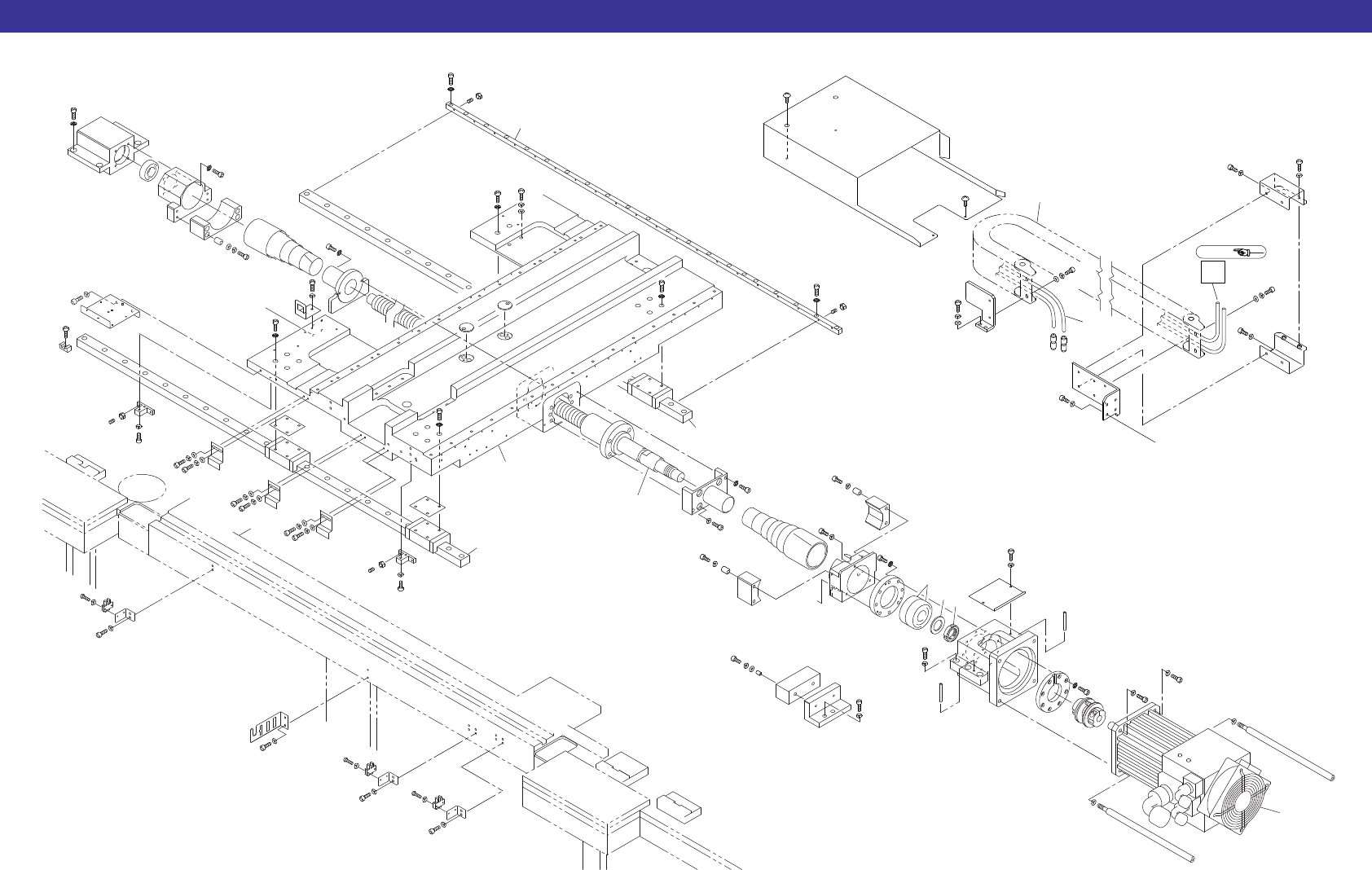

7.Ｘスライド Ｘ Slide (CSSX)
