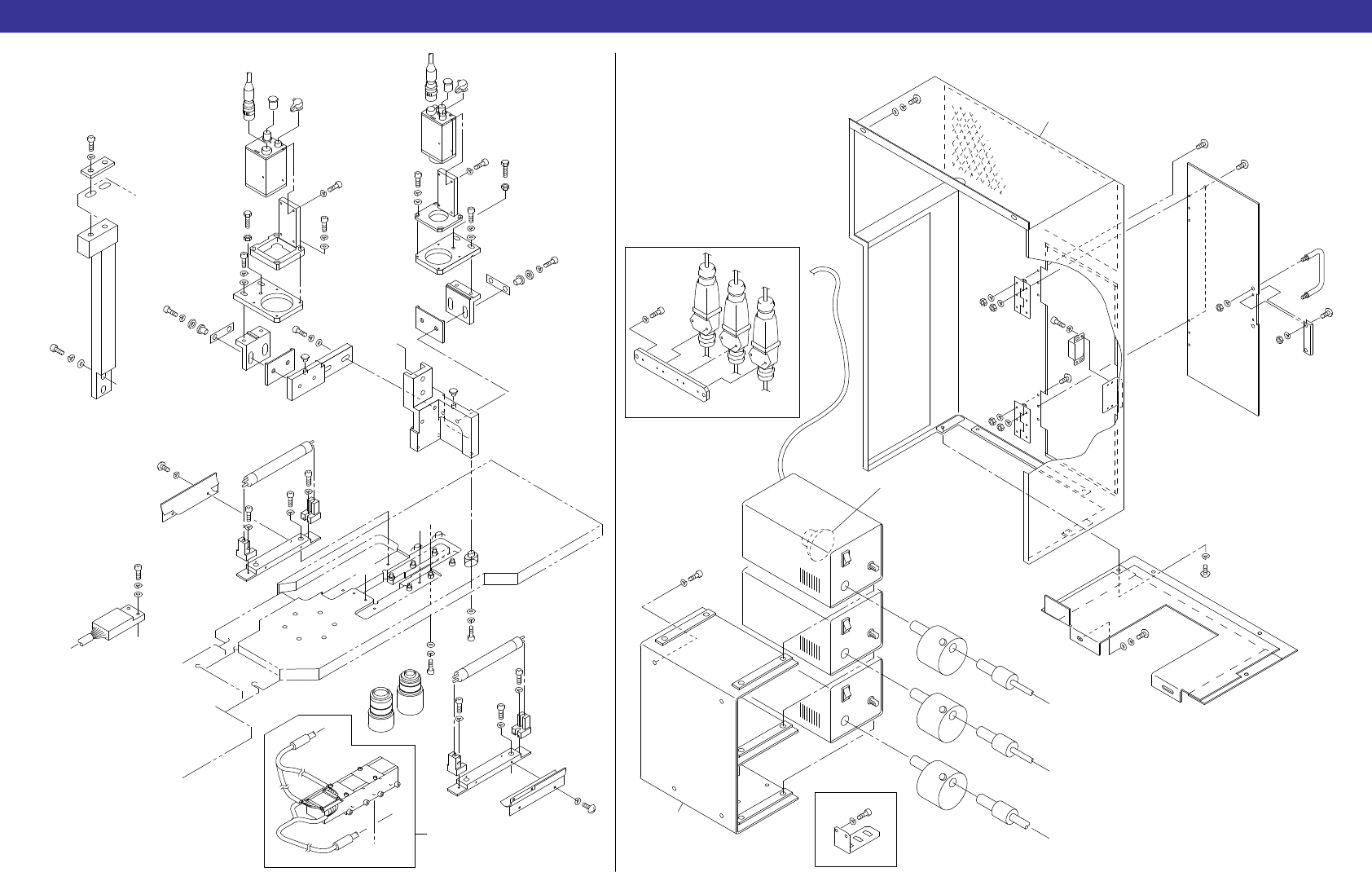

15.1.第6ｽﾃｰｼｮﾝ(画像処理) Station 6(Vision processing)(WGC)
CP-643ME PARTS LIST ver04
15-1
15.1.第6ｽﾃｰｼｮﾝ(画像処理)(WGC)
15.1.Station 6(Vision processing)(WGC)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
0.5 1 2 10
45
52
76
79
78
63
52
56
31
61
61
32
64
50
33
61
34
52
65
64
50
36
39
50
35
61
36
64
50
46
53
28
89
28
28
25
26
29
29
27
29
42
51
77
30
88
81
52
63
56
52
1
3
2
3
2
1
82
83
84
66
54
50
40
39
59
56
52
87
85
65
80
62
51
21
18
17
51
42
51
42
17
50
41
19
27
55
51
44
26
24
25
23
43
51
55
57
53
47
18
17
51
42
17
51
42
41
50
19
20
62
51
49
53
13
12
11
9
10
7
56
52
45
5
54
50
40
65
66
39
59
4
16
15
49
53
13
12
11
8
10
14
15
48
53
57
70
72
73
68
69
72
71
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
x6.5
A
B
C
D
D
F
E
C
G
G
F
E
A
B
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1K40101 2 CABLE ｹｰﾌﾞﾙ DD-T98081H
2K2008A 5 CAP ｷｬｯﾌﾟ BNC-BR1
3K2001T 4 CAP ｷｬｯﾌﾟ HR10-7R-C
4K1129T 1 CAMERA, CCD ｶﾒﾗ CCD XC-75
5WGC0260 1 HOLDER ﾎﾙﾀﾞ
7WGC0190 1 PLATE ﾌﾟﾚｰﾄ
8WGC0182 1 BKT BKT
9WGC0171 1 BKT BKT
10WGC0031 2 SPACER ｽﾍﾟｰｻ
11WGC0050 2 PLATE ﾌﾟﾚｰﾄ
12WGC0060 4 BUSHING ﾌﾞｯｼｭ
13WGC0070 4 WASHER ﾜｯｼｬ
14WGC0043 1 BKT BKT
15WGC0220 2 STOPPER ｽﾄｯﾊﾟ
16WGC0232 1 BKT BKT
17S5022A 4 SOCKET ｿｹｯﾄ FS-285W
18MPG0162 2 PLATE ﾌﾟﾚｰﾄ
19R1016A 2 LAMP ﾗﾝﾌﾟ FL4BLB
20MPG1231 1 REFLECTING PLATE 反射板
21MPG0175 1 REFLECTING PLATE 反射板
23R4023C 1 LENS ﾚﾝｽﾞ FML-26016
24H5449D 1 BOX, PRISM BOX ﾌﾟﾘｽﾞﾑ MFPB2-1000
25H5057T 1 HOLDER, LIGHT ﾎﾙﾀﾞ ﾗｲﾄ FKPW25-2100FB
26H5057Z 1 HOLDER, LIGHT ﾎﾙﾀﾞ ﾗｲﾄ FKPW25-2100LR
27R10195 1 LAMP ﾗﾝﾌﾟ MFP32-2100
28H1004Z 3 LIGHT EMITTING BODY 発光体 MHF-50L2-214C
29S2001T 3 SHUTTER ｼｬｯﾀ FSH-08NCC
30WGC0112 1 STAND ｽﾀﾝﾄﾞ
31WGC1060 1 COVER ｶﾊﾞｰ X116∼
32AWGC8011 1 COVER ｶﾊﾞｰ WGC0163+BHPZ0170
33WGC0142 1 PLATE ﾌﾟﾚｰﾄ
34T5012T 1 HANDLE 取手 THA-240(No.8)
35M1010T 1 MAGNET CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-77
36T2127H 2 HINGE 蝶番 TH78SUS No.5
39H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
40H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L
15.1.第6ｽﾃｰｼｮﾝ(画像処理) Station 6(Vision processing)(WGC)
CP-643ME PARTS LIST ver04
15-2
15.1.第6ｽﾃｰｼｮﾝ(画像処理)(WGC)
15.1.Station 6(Vision processing)(WGC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
41H5278A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X15L
42H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
43H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L
44H5291A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X18L
45H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
46H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
47H5323A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X18L
48H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L
49H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L
50W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
51W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
52W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
53W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
54W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
55W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
56W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
57W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
59W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L
61K5204A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X8L
62K5208A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X6L
63K5172A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X15L
64N1076A NUT, HEX ﾅｯﾄ 六角 M3 P=0.5
65N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
66WGC0090 2 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ
68WGC0241 1 BKT BKT
69WGC0250 1 PLATE ﾌﾟﾚｰﾄ
70H5341A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X20L
71H5345A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X40L
72W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
73W1046A WASHER, FLAT ﾜｯｼｬ ﾋﾗ 4W-8
76WWZ0242 1 PLATE ﾌﾟﾚｰﾄ
77WWZ0271 1 PLATE ﾌﾟﾚｰﾄ
78K5049N 3 CONNECTOR ｺﾈｸﾀ F-H-D7S
79K5049L 3 CONNECTOR ｺﾈｸﾀ F-H-D7B
80H5449T 1 BOX, PRISM BOX ﾌﾟﾘｽﾞﾑ FPB-200
81WGC1050 1 COVER, LOWER ｶﾊﾞｰ 下 X116∼
15.1.第6ｽﾃｰｼｮﾝ(画像処理) Station 6(Vision processing)(WGC)
CP-643ME PARTS LIST ver04
15-3
15.1.第6ｽﾃｰｼｮﾝ(画像処理)(WGC)
15.1.Station 6(Vision processing)(WGC)
