番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1H4197T 2 BEARING ﾍﾞｱﾘﾝｸﾞ 6804ZZ
2WPQ0720 2 HOUSING ﾊｳｼﾞﾝｸﾞ
3WPQ0382 2 COLLAR ｶﾗｰ
4WPQ5075 2 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ
5WPQ5092 2 PULLEY ﾌﾟｰﾘ
6WPQ0212 1 BEARING ﾍﾞｱﾘﾝｸﾞ
7WPQ0250 2 SPRING ｽﾌﾟﾘﾝｸﾞ
8WPQ0730 1 HOLDER ﾎﾙﾀﾞ
9WPQ0230 2 RING ﾘﾝｸﾞ
10WPQ0242 2 RING ﾘﾝｸﾞ
11WPQ0463 2 DOG ﾄﾞｯｸﾞ
12H4104A 2 BEARING ﾍﾞｱﾘﾝｸﾞ A-2520
13S1038A 2 CIR-CLIP ｻｰｸﾘｯﾌﾟ STW20
14S1002A 4 CIR-CLIP ｻｰｸﾘｯﾌﾟ RTW15
15S1040A 2 CIR-CLIP ｻｰｸﾘｯﾌﾟ STW30
16WPQ0740 1 HOLDER ﾎﾙﾀﾞ
17WPQ0602 1 BEARING ﾍﾞｱﾘﾝｸﾞ
18SAM6371 2 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ
19WPQ0661 1 PLATE ﾌﾟﾚｰﾄ
20WPQ5021 2 PULLEY ﾌﾟｰﾘ
21H5065A 8 BALL, STEEL ﾎﾞｰﾙ ｽﾁｰﾙ 3.0 mm
23WPQ0440 1 BKT BKT
24WPQ0540 1 BKT, SENSOR BKT ｾﾝｻ
25WPQ0522 1 BKT BKT
26WPQ0621 1 BKT BKT
27WPQ0510 2 SPRING ｽﾌﾟﾘﾝｸﾞ
28WPQ0330 2 COLLAR ｶﾗｰ
29WPQ0644 1 BRAKE ﾌﾞﾚｰｷ
30H4287T 2 BEARING, SLIDE ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ LM5UU
31WPQ0320 2 SHAFT ｼｬﾌﾄ
32WPQ0634 1 BKT, SENSOR BKT ｾﾝｻ
33WPQ0551 1 BKT, SENSOR BKT ｾﾝｻ
34WPQ0563 1 BKT, SENSOR BKT ｾﾝｻ
35WPQ0683 1 BKT BKT
37H4521K 2 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 295-5GT-9
38N4014A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X4L
16-2
16.第10ｽﾃｰｼｮﾝ(装着角度ﾌｧｲﾝθ),第12ｽﾃｰｼｮﾝ(F角度ﾘﾊﾞｰｽ)(WPQ)
16.Station 10(Fine theta),Station 12(Reverse fine theta)(WPQ)
16.第10ｽﾃｰｼｮﾝ(装着角度ﾌｧｲﾝθ),第12ｽﾃｰｼｮﾝ(F角度ﾘﾊﾞｰｽ) Station 10(Fine theta),Station 12(Reverse fine theta)(WPQ)
CP-643ME PARTS LIST ver04
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
39N4012A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X8L
40H5263A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X18L
41H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
42N4036A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X5L
43H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
45H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L
46W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
47W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L
48W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
49S40541 4 SENSOR, FIBER ｾﾝｻ ﾌｧｲﾊﾞ HPF-S054-A(0.55M)
50W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
51W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
52W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
53N1076A NUT, HEX ﾅｯﾄ 六角 M3
54N1082A NUT, HEX ﾅｯﾄ 六角 M5
55WPQ0670 1 BKT BKT
56WPQ0690 1 PLATE ﾌﾟﾚｰﾄ
57W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
58H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
59H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L
60W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
61H5330A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X40L
63WPQ0811 2 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ
64WPQ0850 2 PIN ﾋﾟﾝ
65H42726 2 BEARING, SPHERICAL ﾍﾞｱﾘﾝｸﾞ 球面 NB-5
66WPQ0791 2 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
67WPQ0771 2 NUT ﾅｯﾄ
68H4118T 4 BEARING ﾍﾞｱﾘﾝｸﾞ SST-1810DSG
69W1008T 2 WASHER, SPHERICAL ﾜｯｼｬ ぎざ付き皿 WW-12
70WPQ0760 2 COLLAR ｶﾗｰ
71WPQ0784 2 HOLDER ﾎﾙﾀﾞ
72K5255H SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ 六角穴ﾎﾞﾀﾝ M3X5L
73H2025A 2 PIN, SNAP ﾋﾟﾝ ｽﾅｯﾌﾟ SSP-5
74AWPQ8024 1 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ For 10st
75AWPQ8034 1 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ For 12st
16-3
16.第10ｽﾃｰｼｮﾝ(装着角度ﾌｧｲﾝθ),第12ｽﾃｰｼｮﾝ(F角度ﾘﾊﾞｰｽ)(WPQ)
16.Station 10(Fine theta),Station 12(Reverse fine theta)(WPQ)
16.第10ｽﾃｰｼｮﾝ(装着角度ﾌｧｲﾝθ),第12ｽﾃｰｼｮﾝ(F角度ﾘﾊﾞｰｽ) Station 10(Fine theta),Station 12(Reverse fine theta)(WPQ)
CP-643ME PARTS LIST ver04
17-1

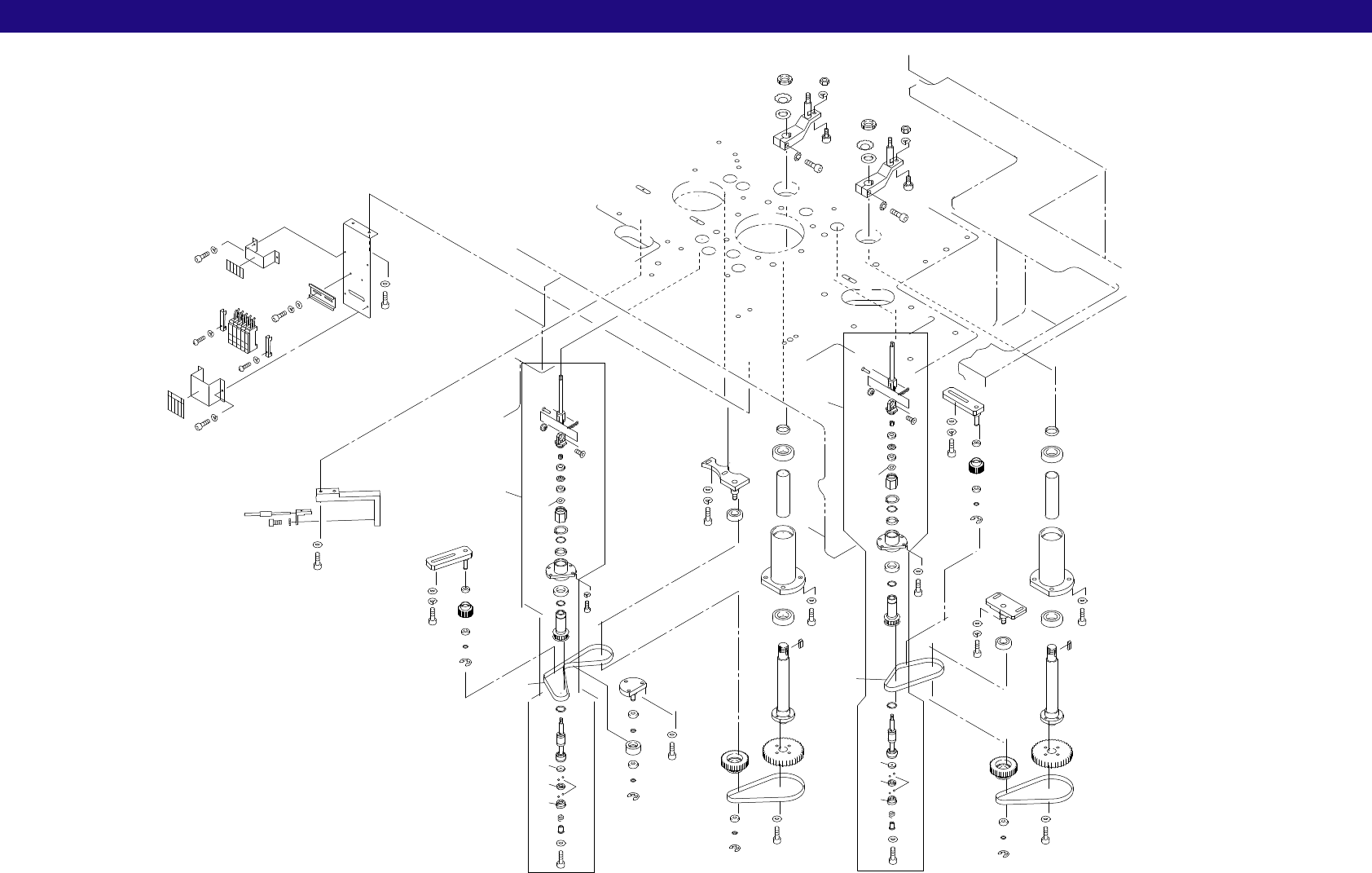

17.第3ｽﾃｰｼｮﾝ(装着角度ﾌﾟﾘθ),第13ｽﾃｰｼｮﾝ(P角度ﾘﾊﾞｰｽ)(WPQ)
17.Station 3(Pre theta),Station 13(Reverse pre theta)(WPQ)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
0.5 1 2 10
75
54
17.第3ｽﾃｰｼｮﾝ(装着角度ﾌﾟﾘθ),第13ｽﾃｰｼｮﾝ(P角度ﾘﾊﾞｰｽ)Station 3(Pre theta),Station 13(Reverse pre theta)(WPQ)
CP-643ME PARTS LIST ver04
33
34
37
31
65
77
30
32
31
35
62
72
22
18
19
47
28
29
64
71
70
40
22
18
25
24
25
23
63
71
70
4
56
66
1
2
3
5
6
7
8
48
9
8
11
60
69
12
10
13
14
82
87
91
92
89
88
27
29
64
71
70
30
32
31
35
31
65
77
37
34
33
62
72
22
18
19
47
28
61
72
22
18
19
21
20
19
17
56
66
1
2
4
7
8
46
9
8
11
60
69
12
10
13
14
82
90
83
84
83
85
86
86
87
91
92
89
88
63
71
70
22
18
25
24
25
23
75
68
44
45
64
72
43
49,78,95
50
57
68
94
68
93
94
68
93
51
58
68
67
52
81
57
68
80
97
69
53
75
73
39
64
72
36
38
55
54
64
72
39
73
41
38
55
90
83
84
83
85
3
5
6
96
96
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
x10
