18-1

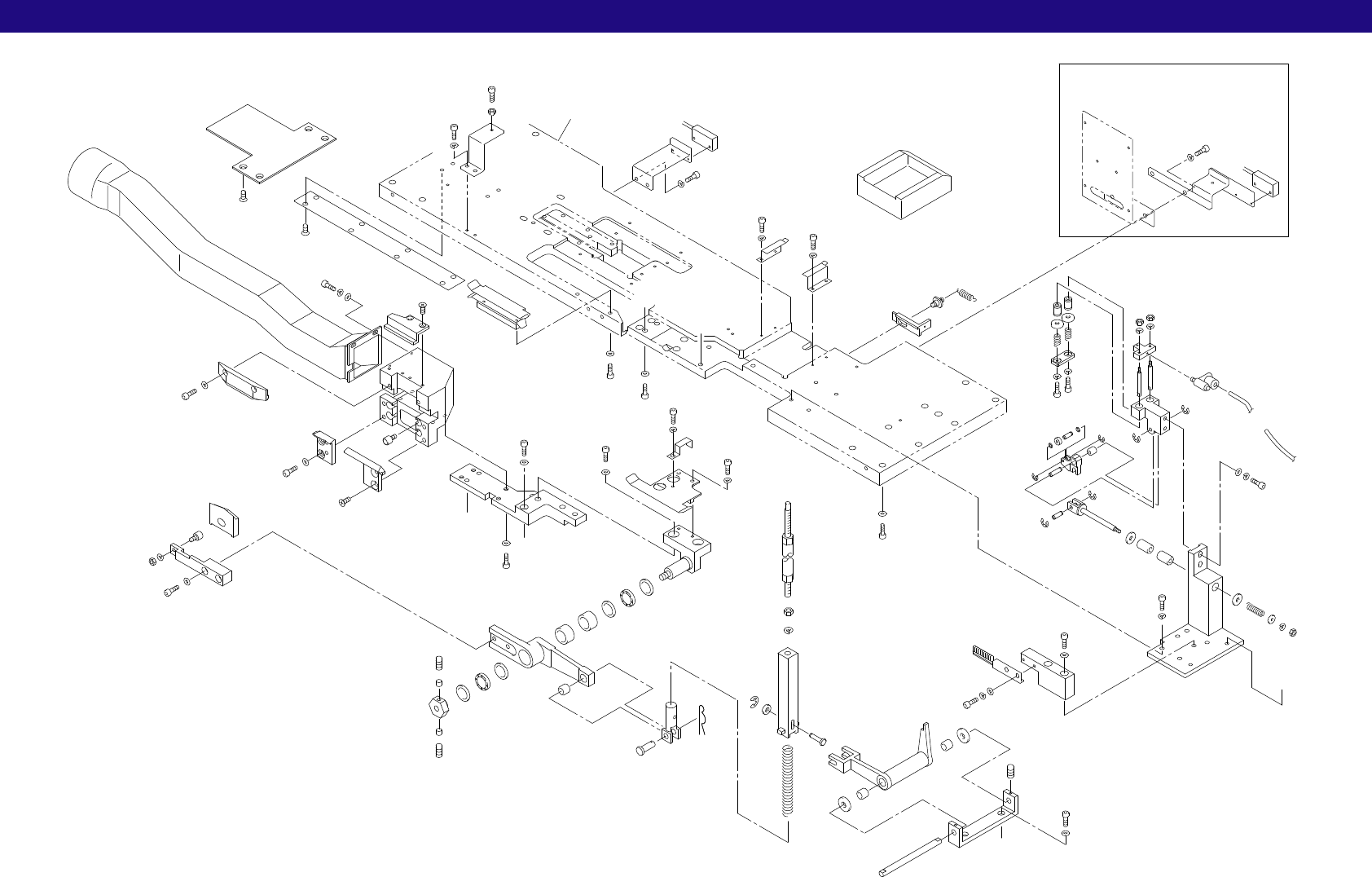

18.第16ｽﾃｰｼｮﾝ(NG部ﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部(WPU,WPK)
18.Station 16(Parts eject),Waste tape cutter(WPU,WPK)
18.第16ｽﾃｰｼｮﾝ(NGﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部 Station 16(Parts eject),Waste tape cutter(WPU,WPK)
CP-643ME PARTS LIST ver04
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
87
63
79
59
32
34
33
25
31
25
33
29
37
56
38
28
83
86
30
24
26
27
62
14
13
14
62
15
15
16
25
12
19
19
17
18
17
60
76
2
11
88
94
75
93
75
89
72
82
90
81
69
81
85
78
7
20
8
66
6
68
81
5
20
64
79
4
3
95
96
61
75
74
1
113
75
61
9
61
84
67
81
115
82
91
76
58
10
97
98
22
55
92
61
75
57
73
50
21
57
73
51
53
54
52
61
75
74
36
23
81
71
35
78
116
84
75
44
45
46
48
48
47
43
49
56
56
100
102
100
101
103
42
40
41
103
39
104
56
56
65
78
77
114
112
111
73
108
110
73
105
107
106
109
65
78
92
99
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
x6
Right-to-left board flow
逆流れ (Option)
A
C
B
A
C
B
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1WPK0370 1 DUCT ﾀﾞｸﾄ
2WPK0023 1 PLATE ﾌﾟﾚｰﾄ
3WPK0330 1 BKT BKT
4WPK0241 1 CUTTER, STATIONARY ｶｯﾀ 固定
5WPK0260 1 PLATE ﾌﾟﾚｰﾄ
6WPK0271 1 PLATE ﾌﾟﾚｰﾄ
7WPK0071 1 PLATE ﾌﾟﾚｰﾄ
8WPK0312 1 CUTTER, MOVABLE ｶｯﾀ 可動
9WPK0100 1 CLAMPER ｸﾗﾝﾊﾟ
10WPK0111 1 PLATE ﾌﾟﾚｰﾄ
11WPK0122 1 SHAFT, PIVOT ｼｬﾌﾄ 支点
12WPK0130 1 LEVER ﾚﾊﾞｰ
13GPK0880 1 NUT ﾅｯﾄ
14GPK2220 2 BLOCK 駒
15H4296A 2 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ AS1629
16H4300A 1 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1629
17H4297A 2 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ AS1831
18H4301A 1 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1831
19H4412A 2 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA1612Z
20K1091A 5 CAM FOLLOWER ｶﾑﾌｫﾛｱ CFS-05
21WPU0281 1 BOX BOX
22WPK0159 1 PLATE ﾌﾟﾚｰﾄ
23WPU0370 1 BKT BKT
24GPH1795 1 PIN ﾋﾟﾝ
25H4403A 3 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA810Z
26WPU0212 1 JOINT ｼﾞｮｲﾝﾄ
28WPU0220 1 JOINT ｼﾞｮｲﾝﾄ
29WPU0340 1 SPRING ｽﾌﾟﾘﾝｸﾞ
30WPU0331 1 JOINT ｼﾞｮｲﾝﾄ
31WPU0203 1 LEVER ﾚﾊﾞｰ
32WPU0030 1 BKT BKT
33WPU0070 2 COLLAR ｶﾗｰ
34WPU0151 1 SHAFT ｼｬﾌﾄ
35WPU0361 1 BKT BKT
36WPU0290 1 BRUSH ﾌﾞﾗｼ
37WPU0241 1 PIN ﾋﾟﾝ
18-2
18.第16ｽﾃｰｼｮﾝ(NG部ﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部(WPU,WPK)
18.Station 16(Parts eject),Waste tape cutter(WPU,WPK)
18.第16ｽﾃｰｼｮﾝ(NGﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部 Station 16(Parts eject),Waste tape cutter(WPU,WPK)
CP-643ME PARTS LIST ver04
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
38WPU0250 1 WASHER ﾜｯｼｬ
39WPU0382 1 BKT BKT
40WPU0482 1 LEVER ﾚﾊﾞｰ
41H4400A 1 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA59Z
42WPU0181 1 PIN ﾋﾟﾝ
43WPU0121 1 SHAFT ｼｬﾌﾄ
44WPU0141 1 WASHER ﾜｯｼｬ
45WPU0190 1 SPRING ｽﾌﾟﾘﾝｸﾞ
46WPU0130 1 WASHER ﾜｯｼｬ
47WPU0270 1 STOPPER ｽﾄｯﾊﾟ
48H4431A 2 BEARING, BALL ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ LM6UU
49WPU0170 1 PIN ﾋﾟﾝ
50WPU0090 1 RETAINER 押え
51WPU0100 1 RETAINER 押え
52MPK0281 1 PLATE ﾌﾟﾚｰﾄ
53MPK0300 1 SPRING ｽﾌﾟﾘﾝｸﾞ
54MPK0294 1 PIN ﾋﾟﾝ
55WQC0590 1 BKT BKT
56S1022A 5 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-4
57H5273A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X5L
58K5170k SCREW, C/R COUNTERSUNK 小ﾈｼﾞ 十穴皿 M4X8L
59N4031A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X10L
60H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
61H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
62N4036A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X5L
63H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L
64H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
65H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
66K5198A SCREW, COUNTERSUNK 小ﾈｼﾞ 皿 M6X15L
67H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
68H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
69H5323A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X18L
71H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L
72H5341A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X20L
73W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
74W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9
18-3
18.第16ｽﾃｰｼｮﾝ(NG部ﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部(WPU,WPK)
18.Station 16(Parts eject),Waste tape cutter(WPU,WPK)
18.第16ｽﾃｰｼｮﾝ(NGﾊﾟｰﾂ排出),残ﾃｰﾌﾟｶｯﾄ部 Station 16(Parts eject),Waste tape cutter(WPU,WPK)
CP-643ME PARTS LIST ver04
