ZSfdr_KLJ_rev06_PartsList_1910_OK - 第46页

4 5 10 6 1 14 9 13 7 13 12 11 8 2 3 8-6 KLJ-1910 Box 88mm OLD 4 5 10 6 1 14 9 13 7 13 12 11 8 2 3 <Note-1> In case of your parts order , the concerned feeder's serial number is required. 部品発注の際には、該当するフィーダーのシリア…

100%1 / 58
14
13
13
5
15
2
4
3
10
11
12
3
1
6
16
8-5

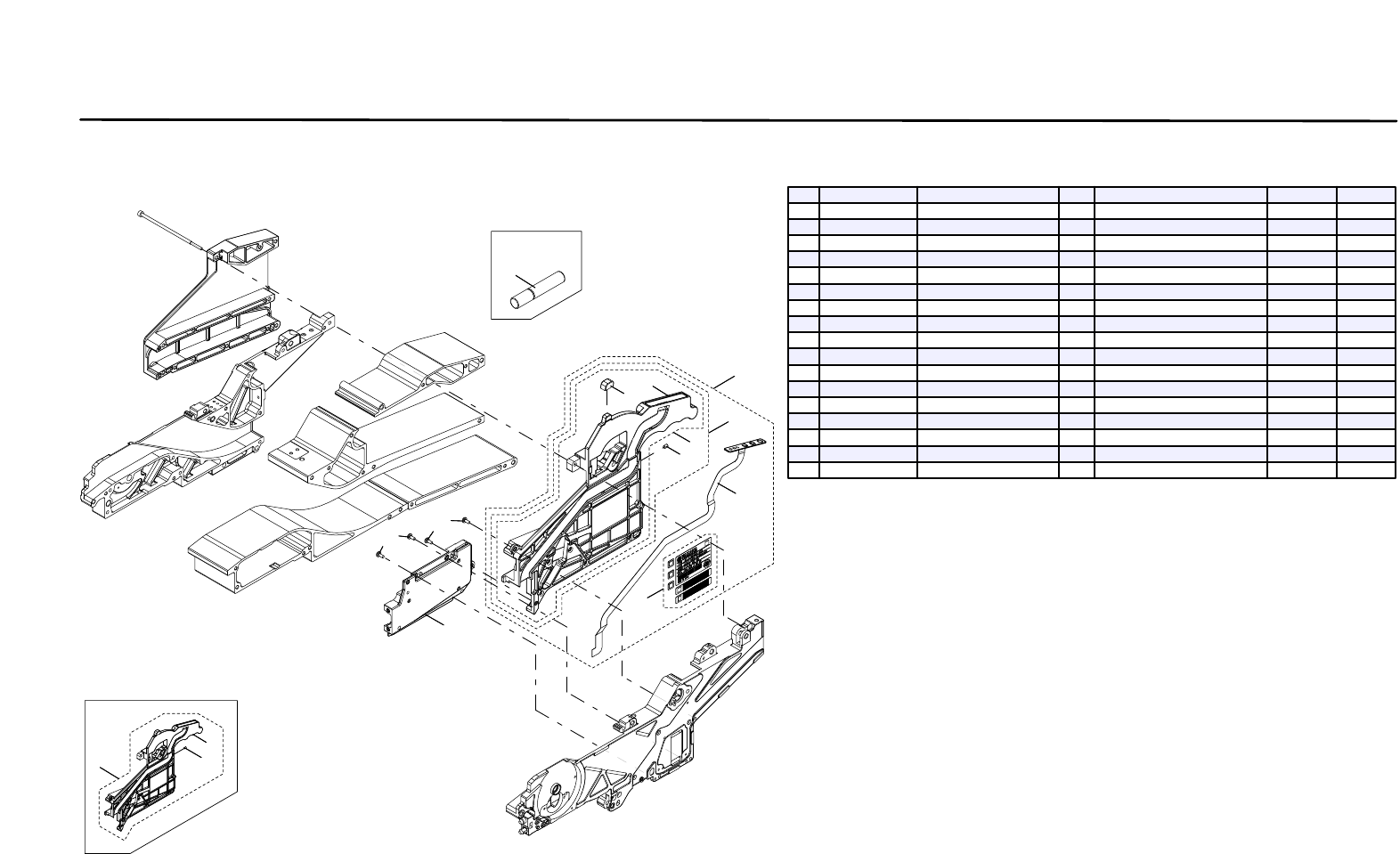

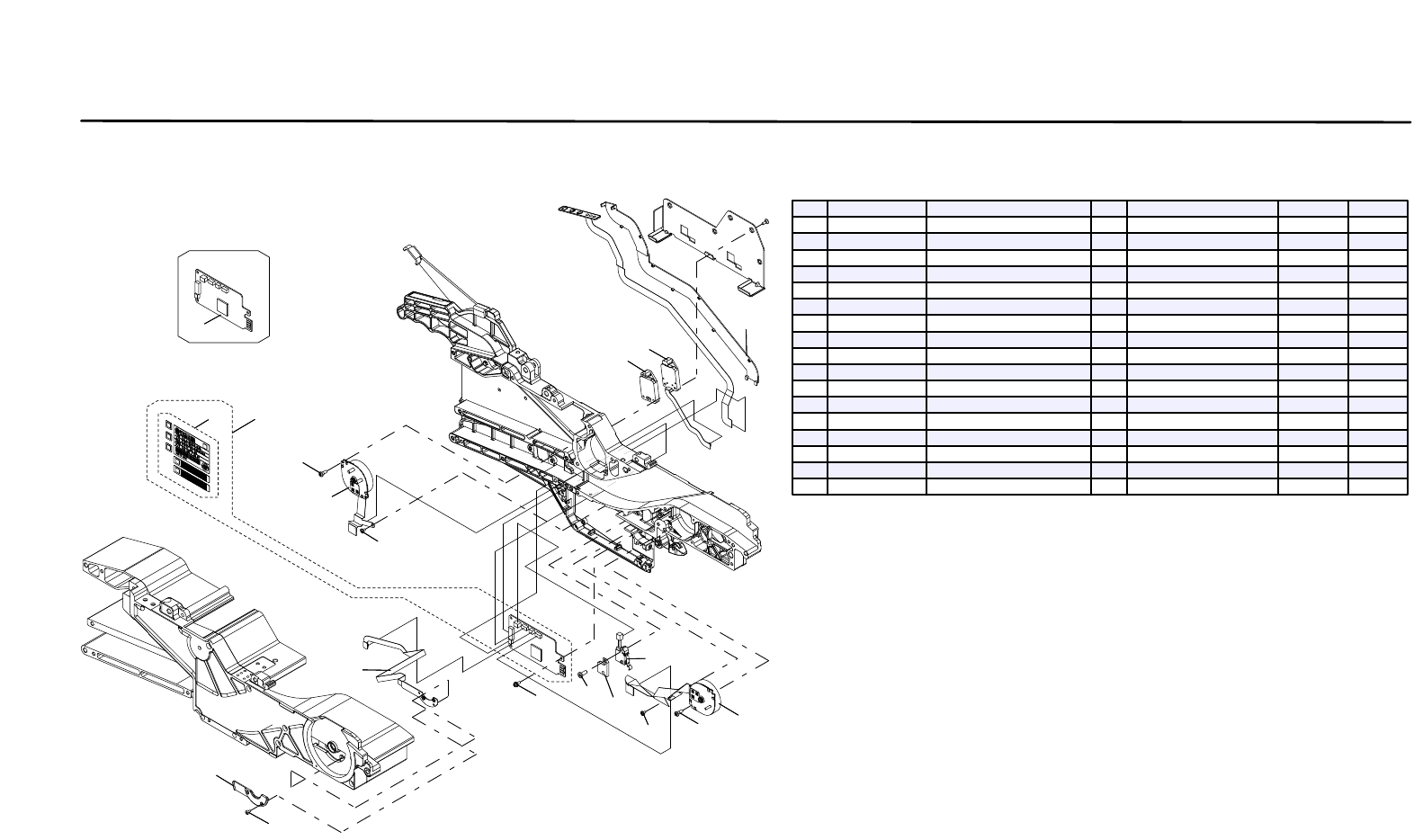

KLJ-1910
Electric
88mm
OLD
14
13
13
5
15
2
4
3
10
11
12
3
1
6
16
<Note-1> In [KLJ-MC900-00], this dummy is adopted.
<Note-2> In [KLJ-MC900-10], this sensor is adopted.
「KLJ-MC900-00」 では、ダミーを用います。
「KLJ-MC900-10」 では、センサーを用います。
<Note-3> In case of your parts order, the concerned feeder's serial number is required.
部品発注の際には、該当するフィーダーのシリアル番号が必要です。
At the shipment, the serial number & the latest firmware are installed.
出荷時に、シリアル番号と最新ファームウェアがインストールされます。
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Change
Compati
1
KHJ-MC510-01
MOTOR,FEED
1
2
KHJ-MC210-11
MOTOR,PEEL
1
3
90990-08J021
SCREW,STAD
4
4
90166-02JA03
SCREW,PAN HEAD
2
5
KLJ-MC167-00
COVER,MENBRANE
1
6
KLJ-MC5A4-00
COVER,ABS
1
7
KLJ-MC1A5-00
DUMMY SPLICE SENS.
1
<Note-1>
8
KHJ-MC2A5-10
SPLICE SENS. LARGE
1
<Note-2>
9
KLJ-MC1AL-00
SW,LIMIT
1
10
KLJ-MC1AJ-00
NUT,PLATE
1
11
KLJ-MC1AK-00
EXTRA,LOW HEAD CAP
1
12
KHJ-M4664-21
ABS BOARD ASSY
1
13
KLJ-M4488-A0
PARTS,FEEDER BOARD
1
<Note-3> MM60052
2015/11/27
-
13-1
KLJ-M4488-A0
PARTS,FEEDER BOARD
1
<Note-3> MN50027
2016/06/16
OK
14
KLJ-MC1CE-00
SEAL,MAIN LABEL
1
<Note-3> [QR code] added
2017/06/12
-
15
90166-12JA06
SCREW,PAN HEAD W/W
3
16
90115-02J003
BOLT HEX.SOCKET HEAD
2
4
5
10
6
1
14
9
13
13
12
11
8
2
3
8-6
KLJ-1910
Box
88mm
OLD
4
5
10
6
1
14
9
13
13
12
11
8
2
3
<Note-1> In case of your parts order, the concerned feeder's serial number is required.
部品発注の際には、該当するフィーダーのシリアル番号が必要です。
<Note-2> It is available for sale. It is fixed with [14] adhesive.
販売可能です。 [14] の接着剤で固定します。
<Note-3> For details of the built-in & connection-path, see page [8-5].
組込と接続経路の詳細については、[8-5] ページを参照してください。
OPTION
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Change
Compati
1
KLJ-MC56Y-01
TOP TAPE BOX COMP.
1
1-1
_
*deleted
1
ML30105
2014/07/28
-
2
KLJ-MC561-A0
TOP TAPE BOX ASSY.
1
2-1
_
*deleted
1
ML30105
2014/07/28
-
3
KHJ-MC165-00
MAGNET,TAIL
1
3-1
_
*deleted
1
ML30105
2014/07/28
-
4
KLJ-MC96Y-S0
PARTS,TOP TAPE BOX
1
<Note-1> ML30105
2014/07/28
OK
5
KLJ-MC56Y-01
TOP TAPE BOX COMP.
1
ML30105
2014/07/28
OK
6
KLJ-MC561-A0
TOP TAPE BOX ASSY.
1
not for sale : MM80133
2015/11/11
-
7
KLJ-MC561-01
BOX,TOP TAPE
1
not for sale
2015/11/11
-
8
KLJ-MC164-00
CAP,TOP TAPE BOX
1
<Note-2> MM80133
2015/11/11
OK
9
KHJ-MC165-00
MAGNET,TAIL
1
assembled at factory
-
10
KLJ-MC90C-S0
SEAL,MAIN LABEL
1
<Note-1> [QR code] added
2017/06/12
OK
11
KLJ-MC1AA-00
SWITCH,OPERATION
1
<Note-3> ML30105
2014/07/28
OK
12
KLJ-MC1A1-00
BOX,EL
1
13
98502-03006
SCREW,PAN HEAD
4
14
KLJ-M86B0-00
ADHESIVE
1
<OP> AronAlpha Extra2000 2g
2015/12/09
-
3
15
19
3
3
29
30
36
34
25
42
1
38
21
16
37
43
17
20
23
43
18
39
40
41
24
11
22
43
12
10
13
9
7
35
33
28
26
8
27
31
4
14
4
32
9-1

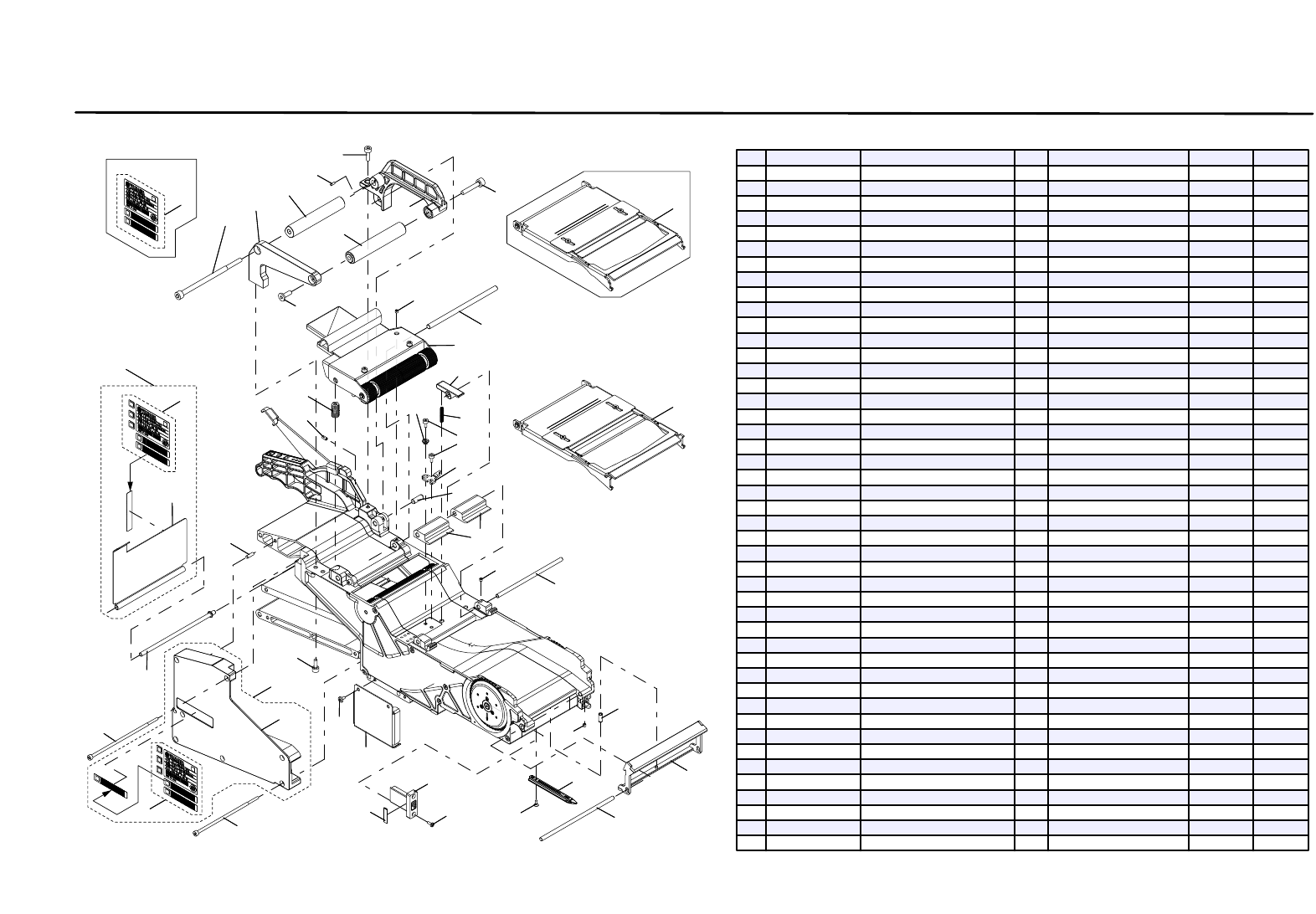

KLJ-1910
Guide / Lever
104mm
<Note-1> In case of your parts order, the concerned feeder's serial number is required.
部品発注の際には、該当するフィーダーのシリアル番号が必要です。
OLD
OLD
3
15
19
3
3
29
30
36
34
25
42
1
38
21
16
37
43
17
20
23
43
18
39
40
41
24
11
22
43
12
10
13
9
7
35
33
28
26
8
27
31
4
14
4
32
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Change
Compati
1
KHJ-MC60J-00
PIN,PARALLEL
3
2
KHJ-MC104-00
RAIL,UNDER
1
3
KLJ-MCA0C-S0
SEAL,MAIN LABEL
1
<Note-1>
3-1
KLJ-MCA0C-S0
SEAL,MAIN LABEL
1
<Note-1> [QR code] added
2017/06/12
OK
4
KLJ-MCA41-00
TAPE GUIDE ASSY.
1
4-1
KLJ-MCA41-01
TAPE GUIDE ASSY. 104
1
H025412
2018/07/12
OK
5
KHJ-MC244-00
LEVER,TAPE GUIDE R
1
6
KLJ-MCA4A-00
SHAFT,LEVER
1
7
KLJ-MCA45-00
LEVER,TAPE GUIDE F
1
8
KLJ-MCA4E-00
SHAFT,LEVER
1
9
KHJ-MC146-02
SPRING,TAPE GUIDE R
1
10
KLJ-MC547-00
SPRING,TAPE GUIDE F
1
11
KLJ-MCA4F-00
BASE,LEVER R
2
12
KLJ-MC54Y-00
PLATE,STOPPER
1
13
KLJ-MC1H1-00
COLLOR,STOPPER R
1
14
91312-03006
BOLT,HEX.SOCKET HEAD
2
15
KLJ-MCA62-S0
PARTS,BOX COVER
1
<Note-1> MP90025
2017/09/28
-
16
KLJ-MC562-00
COVER, TOP TAPE BOX
1
17
90990-01J083
BOLT,HEX.S/H
6
18
90990-01J085
BOLT,HEX.S/H
1
19
KLJ-MCA63-S0
PARTS,TAIL COVER
1
<Note-1> MM60163
2015/07/10
-
20
KLJ-MCA63-00
COVER,TAIL
1
21
KLJ-MCA75-00
PIN,TAIL COVER
1
22
KLJ-MCA6V-00
P/O LEVER ASSY.
1
23
KLJ-MCA6B-00
SHAFT,P/O LEVER 2
1
24
KHJ-MC26E-00
SPRING,P/O LEVER
1
25
90990-09J008
SCREW,FLAT HEAD
2
26
KLJ-MC281-01
HANDLE W
1
27
KLJ-MCA8G-00
SHAFT,HANDLE SUPPORT
1
28
KHJ-MC53N-00
PIN,DOWEL
1
29
91317-05090
BOLT HEX.SOCKET HEAD
1
30
KLJ-MC88M-00
STAY,HANDLE
1
31
KLJ-MCA8N-00
BAR,HANDLE
1
32
90990-01J059
BOLT,HEX.SOCKET HEAD
1
33
91317-05025
BOLT HEX.SOCKET HEAD
1
34
91312-04010
BOLT,HEX.SOCKET HEAD
2
35
91317-04012
BOLT HEX.SOCKET HEAD
1
36
99480-05014
PIN, PARALLEL
1
37
98902-03005
SCREW,BINDING HEAD
2
38
KLJ-MC5F4-00
PLATE,SUPPORT
1
39
KHJ-MC1A9-00
CONNECTOR,BOARD
1
40
90166-02JA06
SCREW,PAN HEAD
2
41
KLJ-MC1AM-00
SHIELD,CONNECTOR
1
42
92A08-03306
SCREW,SET
1
M3*L6
43
92A08-03303
SCREW, SET
3
M3*L3
