MACHINE OVERVIEW
ELECTRICAL SCHEMATIC
4.20 Technical Reference Manual Chapter Issue 8 Oct 06
ELECTRICAL SCHEMATIC

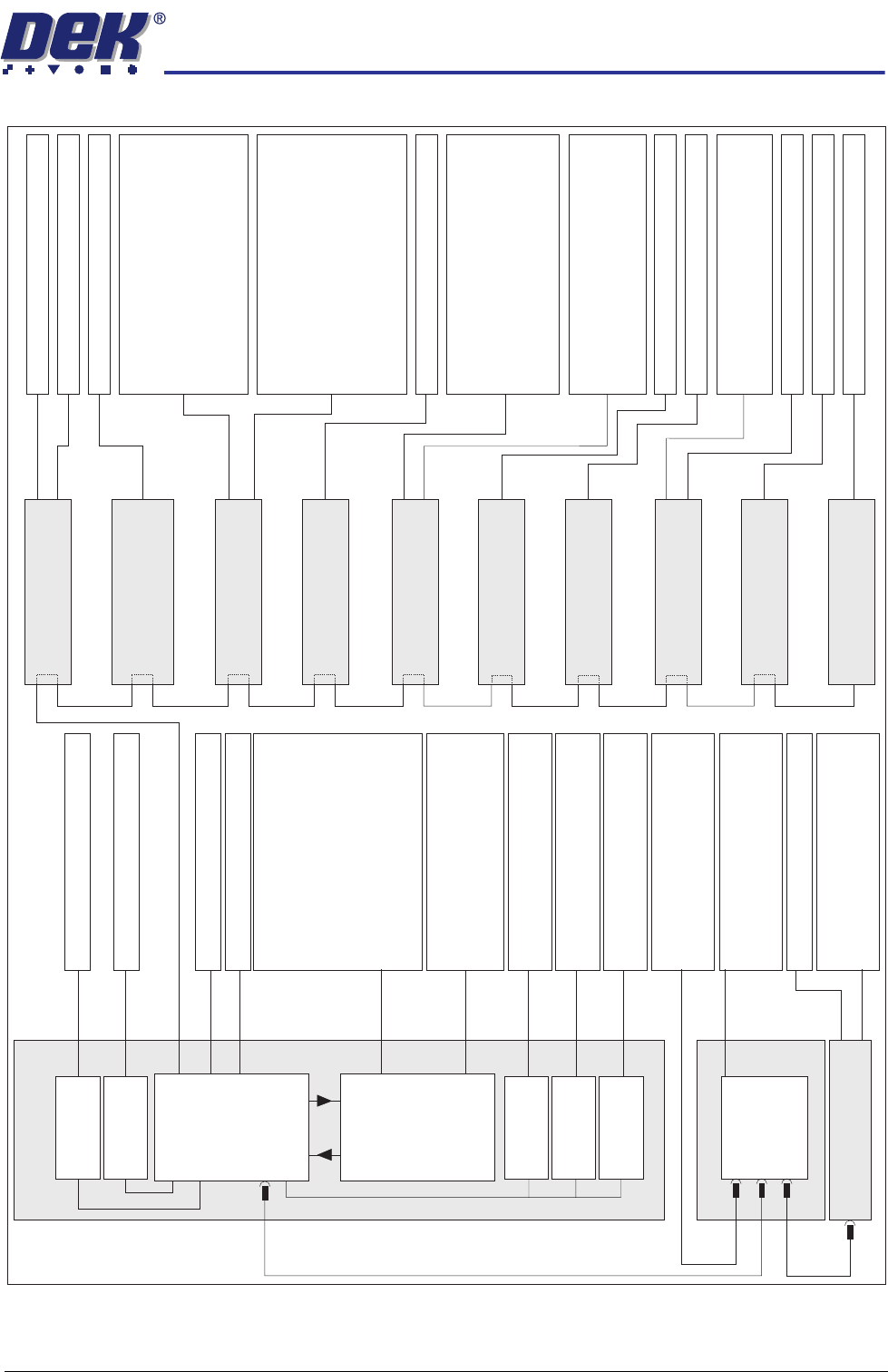

Figure 4-21 Standard Machine
X Forward Actuator
X Rear Actuator
USB
USB
USB
PC
Motherboard
M36 Machine
Control Enclosure
NextMove
Interface
Dual Stepper
Card X3
Dual Stepper
Card X2
Dual Stepper
Card X1
NextMove ES
(I/O Node 1)
I/Ps
O/Ps
CAN Bus
O/Ps
O/Ps
I/Os
Front Squeegee Motor
Rear Squeegee/ProFlow Motor
Y Actuator
Moving Rail Motor
M37 Power
Supply Module
O/P
I/Ps
O/Ps
Camera Trigger
Transport Belt Motors
FMI
E Stop Power
I/Ps
Squeegee Home Sensors
Transport Rail Sensors
Board Stop Sensors
Jog Buttons (via M37)
Cover Interlock
FMI
Power ‘ON’ Monitor
Camera X Home (Linear Motor)
Camera Y Home (Linear Motor)
System Switch
Jog Buttons
E Stop
MMI Touchscreen
IR Keyboard/Mouse
USB Flash Drive
Host Comms
DEK Interactiv
Camera System (vision)
Aout
Temperature to ECM
Ain
O/Ps
USC Solvent Level
System Lamp
Chase/Screen/Board Clamps
Lid Bolt
USC Cleaner Squeegee
Board Stop
Tricolour Beacon
Vacuum Tooling Power
Air Pressure Sensor
Lid Bolt Sensor
Vacuum Tooling Sensor
Screen Sensor
Camera Y Home (Rotary Motor)
Print Carriage Home Sensor
Paste Carriage Home Sensor
Servo Node 8
(Camera X Rotary Motor)
I/P
Camera X Home (Rotary Motor)
Rising Table Motor
Rising Table Home Sensor
USC Sensors
USC Home Clamps
Solvent PumpUSC Motors and
Vacuum Power
Drip Tray Solenoid
Paste Cartridge Tilt Solenoid
Paste Dispense Solenoid
Screen Actuator
Paste Height Laser
ProFlow Paste Pressure
ProFlow SCAR
Drip Tray Sensor
Paste Cartridge Horizontal/Vertical
Paste Level Sensor
ProFlow Link - ProFlow SCAR
Screen Cylinder Sensors
Paste Roll Low
Screen Position Sensor
Squeegee Pressure
O/P
I/Ps
Servo Node 6
(Rising Table Drive)
I/P
Stepper Node 10
(Paste Dispense
Stepper Motor)
O/Ps
I/Ps
I/O Node 3 Board
(Print Carriage)
I/P
Servo Node 7
(Print Carriage Motor)
O/Ps
I/Ps
I/O Node 2 Board
(Main Machine)
I/P
Servo Node 9
(Camera Y Rotary Motor)
O/Ps
I/Ps
I/O Node 4 Board
(Screen Cleaner)
EuroFlex
Card X7
EuroFlex
Card X6
Camera X MotorLinear
Camera Y MotorLinear
MACHINE OVERVIEW
ELECTRICAL SCHEMATIC
Chapter Issue 8 Oct 06 Technical Reference Manual 4.21

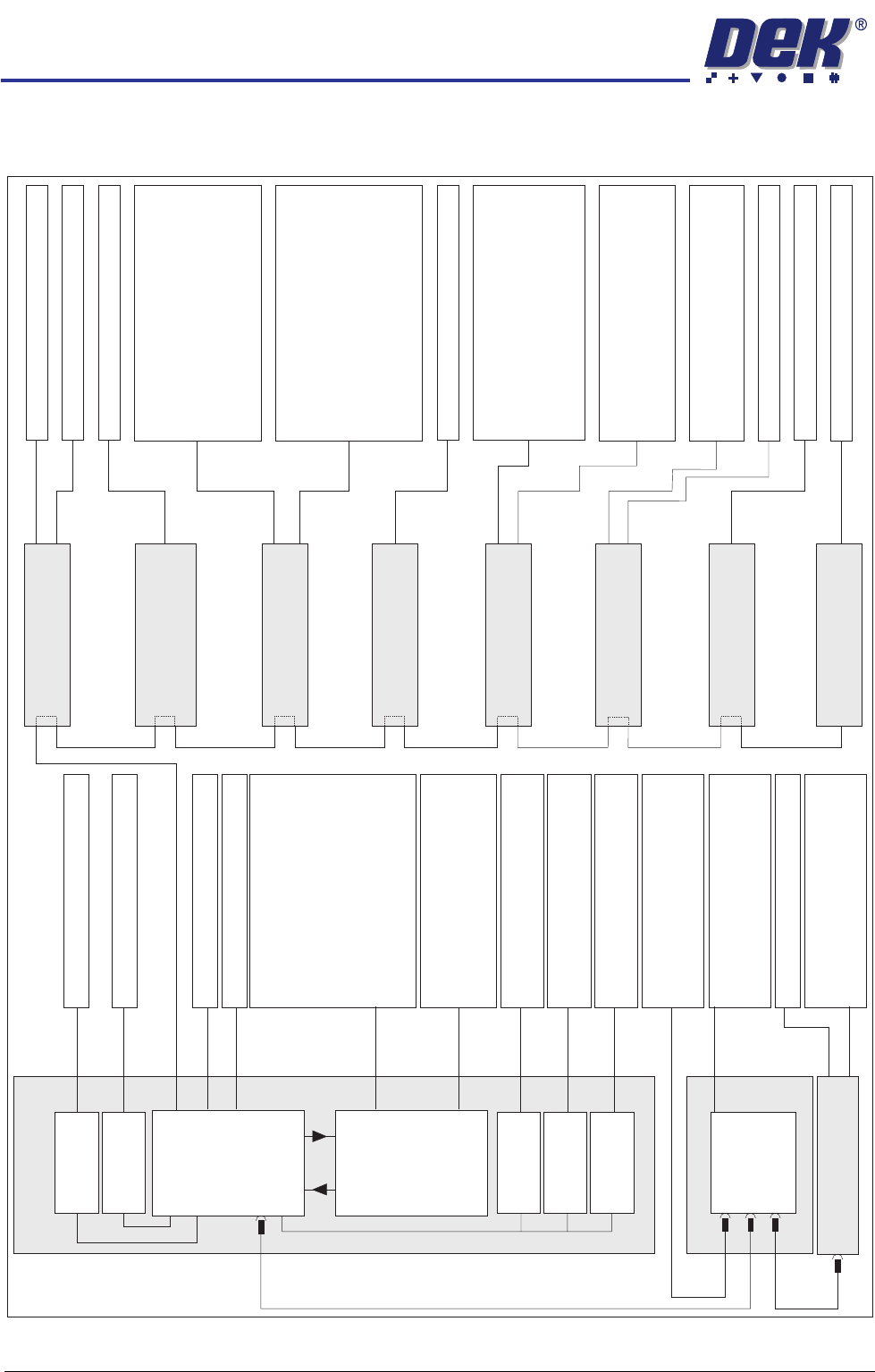

Figure 4-22 Rapid Transit Conveyor (RTC) Machine
X Forward Actuator
X Rear Actuator
USB
USB
USB
PC
Motherboard
M36 Machine
Control Enclosure
NextMove
Interface
Dual Stepper
Card X3
Dual Stepper
Card X2
Dual Stepper
Card X1
NextMove ES
(I/O Node 1)
I/Ps
O/Ps
CAN Bus
O/Ps
O/Ps
I/Os
Front Squeegee Motor
Rear Squeegee/ProFlow Motor
Y Actuator
Vane Stepper Motor
M37 Power
Supply Module
O/P
I/Ps
O/Ps
Camera Trigger
Transport Belt Motors
FMI
E Stop Power
I/Ps
Squeegee Home Sensors
Transport Rail Sensors
Board Stop Sensors
Jog Buttons (via M37)
Cover Interlock
FMI
Power ‘ON’ Monitor
Camera X Home (Linear Motor)
Camera Y Home (Linear Motor)
System Switch
Jog Buttons
E Stop
MMI Touchscreen
IR Keyboard/Mouse
USB Flash Drive
Host Comms
DEK Interactiv
Camera System (vision)
Aout
Temperature to ECM
Ain
O/Ps
USC Solvent Level
System Lamp
Chase/Screen/Board Clamps
Lid Bolt
USC Cleaner Squeegee
Board Stop
Tricolour Beacon
Vacuum Tooling Power
Air Pressure Sensor
Lid Bolt Sensor
Vacuum Tooling Sensor
Screen Sensor
Camera Y Home (Rotary Motor)
Print Carriage Home Sensor
Paste Carriage Home Sensor
Servo Node 8
(Camera X Rotary Motor)
I/P
Camera X Home (Rotary Motor)
Rising Table Motor
Rising Table Home Sensor
USC Sensors
Transport Mechanism Home
Moving Rail Home
USC Home Clamps
Solvent PumpUSC Motors and
Vacuum Power
Drip Tray Solenoid
Paste Cartridge Tilt Solenoid
Paste Dispense Solenoid
Screen Actuator
Paste Height Laser
ProFlow Paste Pressure
ProFlow SCAR
Drip Tray Sensor
Paste Cartridge Horizontal/Vertical
Paste Level Sensor
ProFlow Link - ProFlow SCAR
Screen Cylinder Sensors
Paste Roll Low
Screen Position Sensor
Squeegee Pressure
O/P
I/Ps
Servo Node 6
(Rising Table Drive)
I/P
Stepper Node 10
(Paste Dispense
Stepper Motor)
O/Ps
I/Ps
I/O Node 3 Board
(Print Carriage)
I/P
Servo Node 7
(Print Carriage Motor)
O/Ps
I/Ps
I/O Node 2 Board
(Main Machine)
I/P
Servo Node 9
(Camera Y Rotary Motor)
O/Ps
I/Ps
I/O Node 4 Board
(Screen Cleaner)
EuroFlex
Card X7
EuroFlex
Card X6
Camera X MotorLinear
Camera Y MotorLinear
Servo Node 11
(Transport Mech. Motor)
I/P
Stepper Node 12
(Moving Rail Motor)
I/P
