1002-002 103 Key No. P AR T No. P AR T NAME Q’ty REMARKS OLD P AR TS No. NOTE 1 01 1F 0 1 1 1 ASSY ,BRACKET 1 (GREEN) 753YL-010-001 630 122 6019 1 -01 21 1F 7 734 BRACKET(GRIP) 1 630 121 0995 1 -02 21 1F 5 084 BRACKET 1 …

0402-001

102

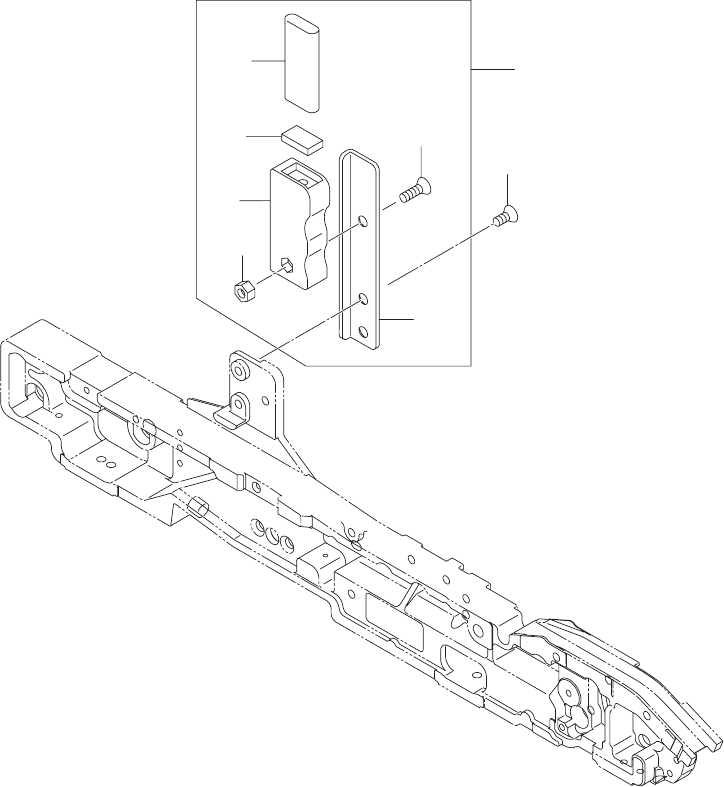

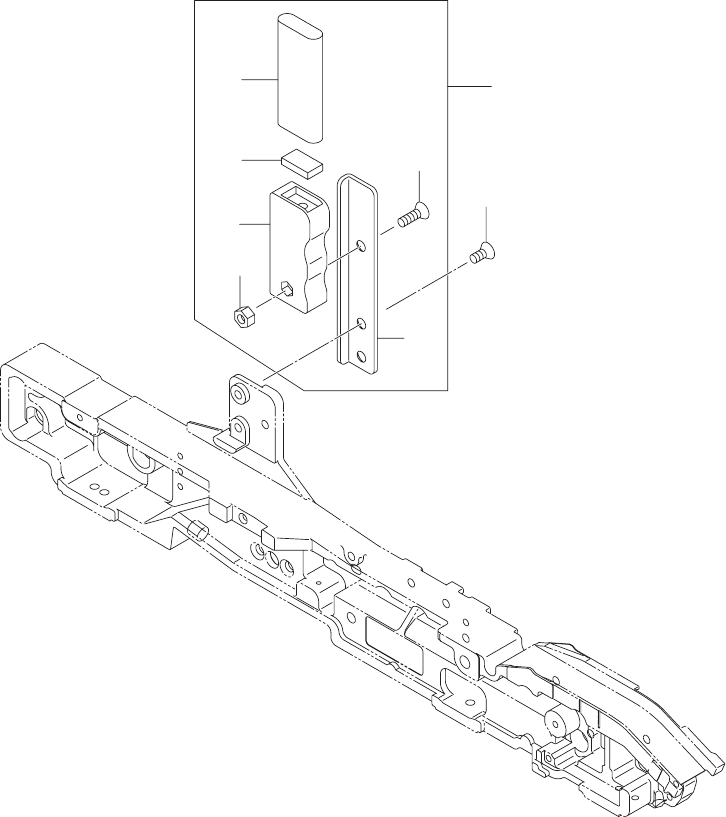

TAG ASSY(ACV) TAG ASSY(ACV)

Fig. YL-1 TY-1610 TY-1610

1-05

1-08

1-01

1-03

1-04

1-02

1002-002

103

Key No. PART No. PART NAME Q’ty REMARKS OLD PARTS No.

NOTE

1 011F 0 111 ASSY,BRACKET 1 (GREEN)

753YL-010-001 630 122 6019

1 -01 211F 7 734 BRACKET(GRIP) 1 630 121 0995

1 -02 211F 5 084 BRACKET 1 630 091 7253

1 -03 221F 0 082 NUT HEX 4 1 411 141 0307

1 -04 221D 0 219 SCR FLT 4X10 1 411 113 4708

1 -05 23N2 0 037 TUBE,WIRING 1 GREEN 630 041 6213

1 -08 4U25 0 147 UNIT,I/O 1 630 121 4122

2 221D 0 224 SCR FLT 4X6 2 753YL-010-002 411 140 7208

TY-1610

YL-1
