1002-002 91 Key No. P AR T No. P AR T NAME Q’ty REMARKS OLD P AR TS No. NOTE 1 0753 0 K00 ASSY ,BRACKET 1 (GREEN) 753TL-010-001 1 -01 21 1F 3 395 BRACKET(GRIP) 1 630 070 7601 1 -02 21 1F 5 084 BRACKET 1 630 091 7253 1 -0…
0402-001
90
TAG ASSY TAG ASSY

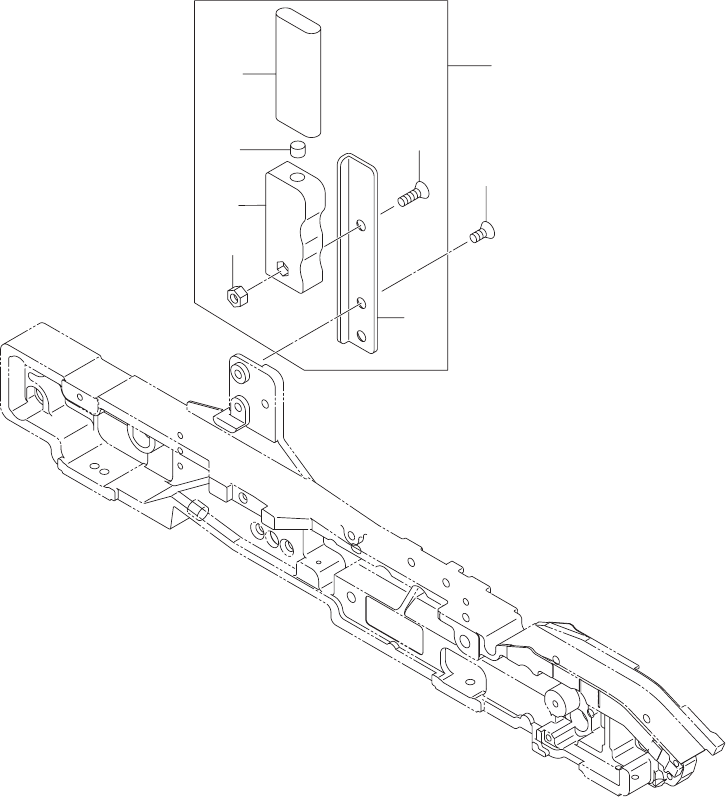

Fig. TL-1 TX-1610 TX-1610
1-05
1-08
1-01
1-03
1-04
2
1
1-02
1002-002
91
Key No. PART No. PART NAME Q’ty REMARKS OLD PARTS No.
NOTE
1 0753 0 K00 ASSY,BRACKET 1 (GREEN)
753TL-010-001
1 -01 211F 3 395 BRACKET(GRIP) 1 630 070 7601
1 -02 211F 5 084 BRACKET 1 630 091 7253
1 -03 221F 0 082 NUT HEX 4 1 411 141 0307
1 -04 221D 0 219 SCR FLT 4X10 1 411 113 4708
1 -05 23N2 0 037 TUBE,WIRING 1 GREEN 630 041 6213
1 -08 4U25 0 084 UNIT,I/O 1 630 085 1526
2 221D 0 224 SCR FLT 4X6 2 753TL-010-002 411 140 7208
TX-1610
TL-1
0402-001
92
TAG ASSY TAG ASSY

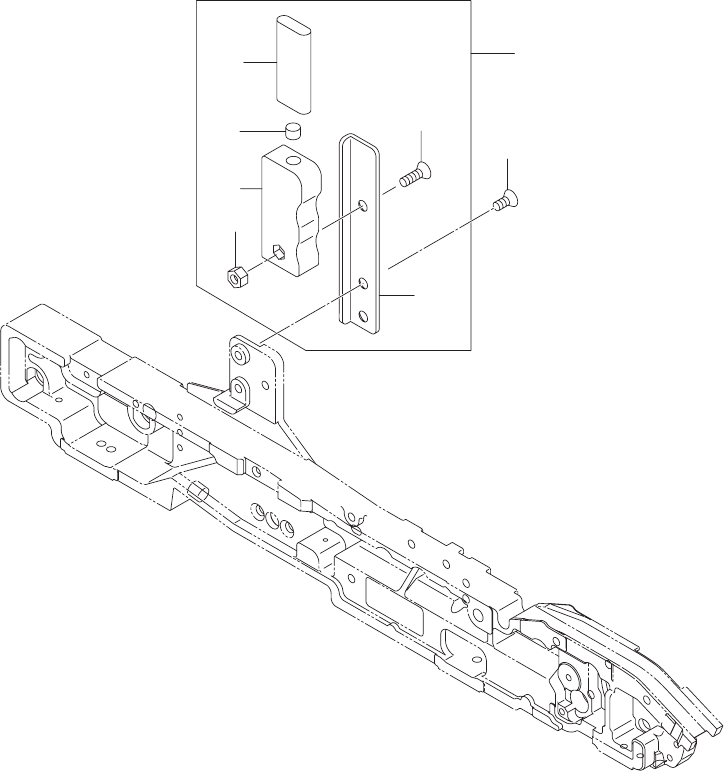

Fig. TP-1 TX-2410, 2411 TX-2410, 2411
2
1-04
1-02
1-03
1-01
1-08
1-05
1
