P-0208-001 - 第109页
MODEL TCM-X300 0203-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 107 JB-1 1 630 107 7185 BASE 1 784JB-010-001 2 630 109 2843 BR AC KE T ,L O CA TE 1 784JB-010-002 3 630 064 5460 BRA CK ET 1 784JB-010-003 4 630 0…
MODEL TCM-X300
0203-001
106
X ゲޔY ゲ X AXIS, Y AXIS
Fig. JB-1 X ゲ㚟േㇱ X Axis Driver
18
14
6
41
23
11
9
41
7
24
15
8
30
33
16
19
19
28
31
21
12
10
5
26
30
33
38
39
40
36
4
31
28
20
31
25
30
34
1
25
30
34
28
20
13
17
3
2
32
29
22
14
18
Fig.JB-1
4797L
TCM-X300
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
107
JB-1
1 630 107 7185 BASE 1 784JB-010-001
2 630 109 2843 BRACKET,LOCATE 1 784JB-010-002
3 630 064 5460 BRACKET 1 784JB-010-003
4 630 064 5569 HOLDER 1 784JB-010-004
5 630 084 3651 SPACER 1 784JB-010-005
6 630 066 1408 COVER 1 784JB-010-006
7 630 053 2104 COVER 1 784JB-010-007
8 630 064 4005 BRACKET,LOCATE 1 784JB-010-008
9 630 064 5989 MECH PARTS(URETHANES) 1 784JB-010-009
10 630 064 5996 MECH PARTS(URETHANES) 1 784JB-010-010
11 630 064 6023 COLLAR 1 784JB-010-011
12 630 064 6030 COLLAR 1 784JB-010-012
13 630 109 2874 BALL SCREW 1 784JB-010-013
14 630 083 7292 GUIDE,LINEAR 1 784JB-010-014
15 630 063 9278 COUPLING 1 784JB-010-015
16 630 086 3529 MOTOR,AC-SERVO 1 MSVM6(X),#SGMSH-30ACA-TV11
784JB-010-016
17 630 037 6647 BEARING,UNIT 1 784JB-010-017
18 630 000 7770 BOLT,HEX-SCT 38 784JB-010-018
19 630 000 7909 BOLT,HEX-SCT 8 784JB-010-019
20 630 000 7916 BOLT,HEX-SCT 2 784JB-010-020
21 630 000 8005 BOLT,HEX-SCT 1 784JB-010-021
22 630 000 8036 BOLT,HEX-SCT 4 784JB-010-022
23 630 000 8098 BOLT,HEX-SCT 1 784JB-010-023
24 630 000 8159 BOLT,HEX-SCT 4 784JB-010-024
25 630 000 8166 BOLT,HEX-SCT 10 784JB-010-025
26 630 000 8180 BOLT,HEX-SCT 2 784JB-010-026
28 411 141 3001 WASHER SPR 6 6 784JB-010-028
29 411 141 3100 WASHER SPR 8 4 784JB-010-029
30 411 141 3209 WASHER SPR 10 16 784JB-010-030
31 411 141 4305 WASHER V 6X12.5X1.6 6 784JB-010-031
32 411 141 4503 WASHER V 8X17X1.6 4 784JB-010-032
33 411 141 4701 WASHER V 10X21X2 6 784JB-010-033
34 630 001 0251 WASHER 10 784JB-010-034
36 630 110 3754 COVER 1 784JB-010-036
38 630 000 7602 BOLT,HEX-SCT 4 784JB-010-038
39 411 141 2905 WASHER SPR 4 4 784JB-010-039
40 411 141 4008 WASHER V 4X9X0.8 4 784JB-010-040
41 630 111 3906 BOLT,HEX-SCT(BUTTON HEAD) 6 784JB-010-041
MODEL TCM-X300
0203-001
108
X ゲޔY ゲ X AXIS, Y AXIS

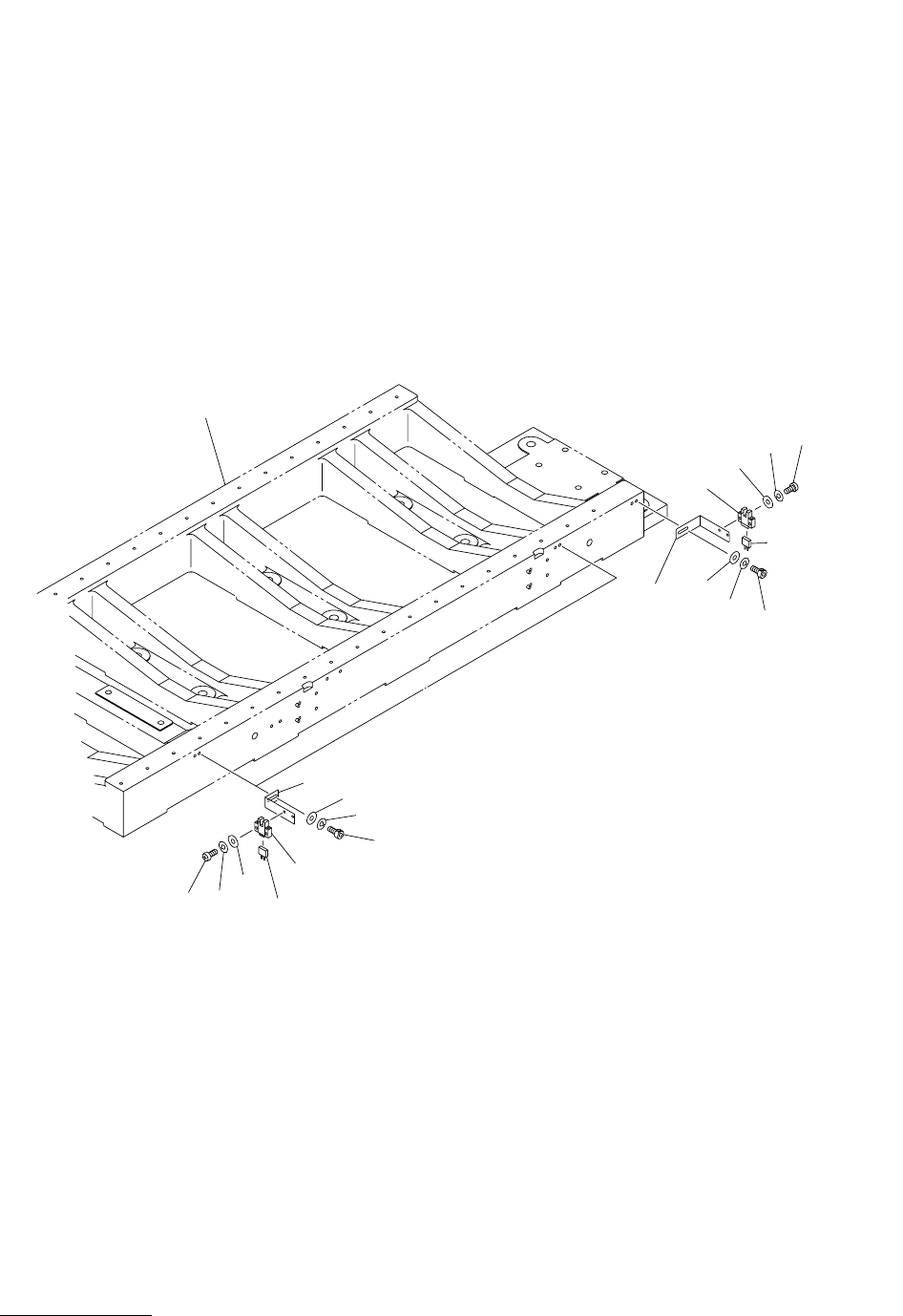

Fig. JB-2 X ࠹ࡉ࡞ᬌㇱ X Table Detector
102
103
109
107
105
104
See Fig.JB-1
Key No.1
110
108
106
108
110
104
101
109
107
105
103
106
Fig.JB-2
4797L
TCM-X300
