MODEL TCM-X300 0203-001 124 XY ࠻࠶ࡊࡌࠬㇱ XY TOP BASE SECTION Fig. JC-5 ࡃ࠶ࠢࠕ࠶ࡊࡌࠬਅ㚟േㇱ Back-up Base Leveller Driver Fig.JC-5 419 421 422 404 408 414 408 420 See Fig.JC-1 Key No.4 401 420 409 406 412 422 421 418 405 4797L TC…
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
123
JC-4
302 630 093 5677 PLATE 4 784JC-010-302
305 630 064 6146 BOSS 4 784JC-010-305
306 630 093 5684 DISK 4 784JC-010-306
307 630 093 5691 DISK 4 784JC-010-307
309 630 093 5707 PLATE 4 784JC-010-309
310 630 065 8897 PULLEY,TIMING 4 784JC-010-310
311 630 064 6801 BEARING,RADIAL 8 784JC-010-311
312 630 064 3435 BALL SCREW 4 784JC-010-312
313 630 093 5714 GUIDE,SLIDE 4 784JC-010-313
314 630 064 6818 SPRING 4 784JC-010-314
316 411 141 9003 RING C 21 4 784JC-010-316
318 630 000 7503 BOLT,HEX-SCT 16 784JC-010-318
320 630 000 7626 BOLT,HEX-SCT 16 784JC-010-320
324 411 141 2905 WASHER SPR 4 24 784JC-010-324
326 411 141 4008 WASHER V 4X9X0.8 20 784JC-010-326
328 411 141 0307 NUT HEX 4 5 784JC-010-328
330 630 000 8890 SET SCREW 8 784JC-010-330
334 630 094 3528 SET SCREW 4 784JC-010-334
335 630 000 7633 BOLT,HEX-SCT 5 784JC-010-335
336 630 001 0213 WASHER 4 784JC-010-336
MODEL TCM-X300
0203-001
124

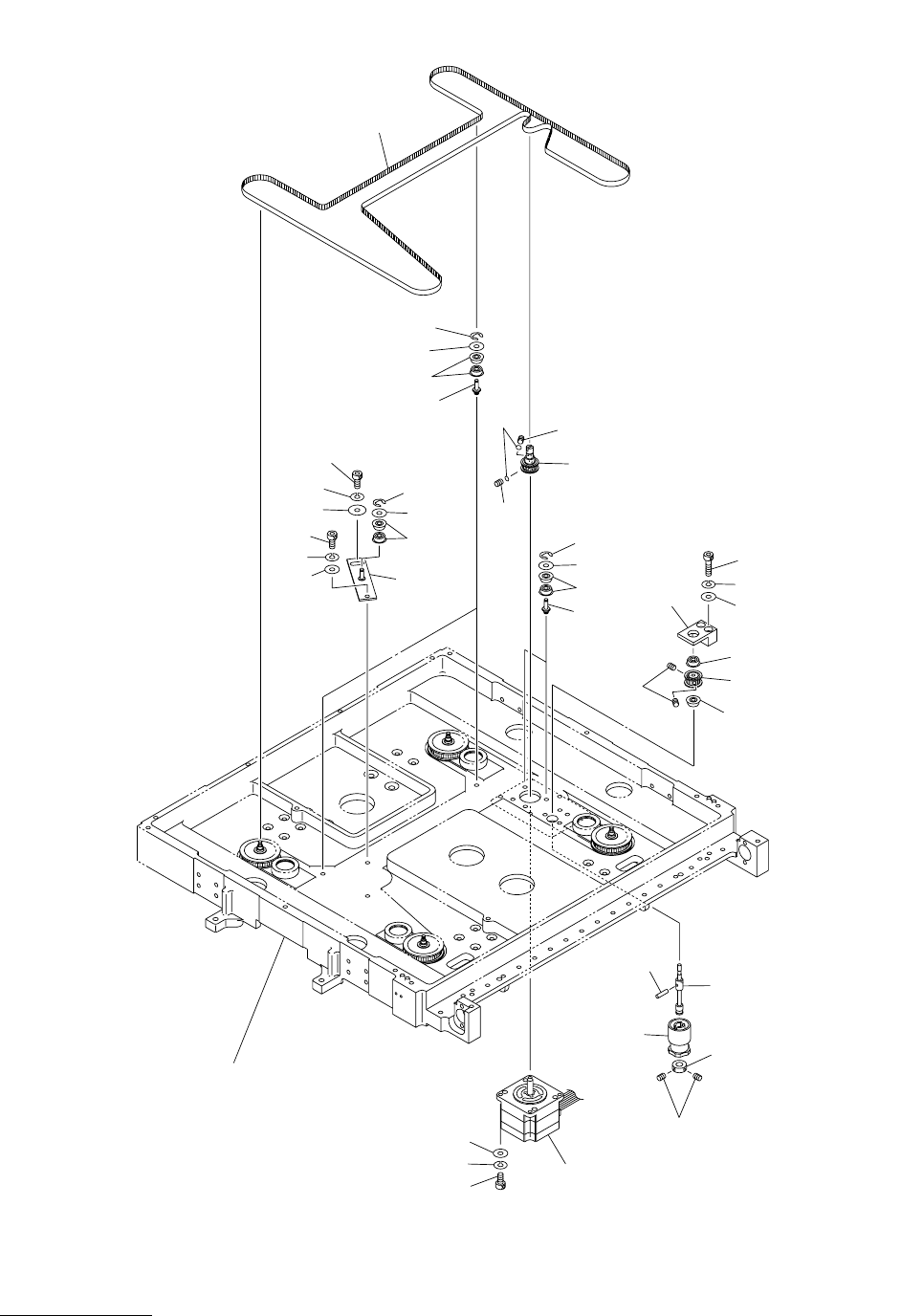

XY ࠻࠶ࡊࡌࠬㇱ XY TOP BASE SECTION
Fig. JC-5
ࡃ࠶ࠢࠕ࠶ࡊࡌࠬਅ㚟േㇱ
Back-up Base Leveller Driver
Fig.JC-5
419
421
422
404
408
414
408
420
See Fig.JC-1
Key No.4
401
420
409
406
412
422
421
418
405
4797L
TCM-X300
415
425
424
424
410
413
417
421
411
417
421
422
422
408
402
410
422
408
410
422
408
402
403
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
125
JC-5
401 630 059 5888 PIN,GUIDE 1 784JC-010-401
402 630 064 6153 SHAFT 4 784JC-010-402
403 630 064 6160 SHAFT 1 784JC-010-403
404 630 064 5590 HOLDER 1 784JC-010-404
405 630 066 1163 SHAFT 1 784JC-010-405
406 630 064 6061 COLLAR 1 784JC-010-406
408 630 001 1388 BEARING,RADIAL 12 784JC-010-408
409 630 059 6823 CLUTCH/BRAKE 1 784JC-010-409
410 411 000 9809 RING E 3 5 784JC-010-410
411 630 001 0213 WASHER 1 784JC-010-411
412 630 092 9799 ASSY,MOTOR,STEPPING 1 MPM19(BPC),103H7121-0440
784JC-010-412
413 630 064 6436 PULLEY,TIMING 1 784JC-010-413
414 630 059 6755 PULLEY,TIMING 1 784JC-010-414
415 630 064 6795 BELT,TIMING 1 784JC-010-415
417 630 000 7633 BOLT,HEX-SCT 2 784JC-010-417
418 630 000 7640 BOLT,HEX-SCT 4 784JC-010-418
419 630 000 7664 BOLT,HEX-SCT 2 784JC-010-419
420 630 000 8883 SET SCREW 4 784JC-010-420
421 411 141 2905 WASHER SPR 4 8 784JC-010-421
422 411 141 4008 WASHER V 4X9X0.8 12 784JC-010-422
424 630 008 1053 SET SCREW 2 784JC-010-424
425 630 061 1434 SHEET 2 784JC-010-425
