P-0208-001 - 第197页
MODEL TCM-X300 021 1-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 195 LB-1 1 630 1 18 3367 F R A M E 1 784LB-010-001 2 630 1 16 0078 C A S T E R 4 784LB-010-002 4 41 1 141 2905 WAS HE R S PR 4 12 784LB-010-004 5…
MODEL TCM-X300
0211-002
194
࠳ࠬ࠻ࡏ࠶ࠢࠬㇱ DUST BOX SECTION

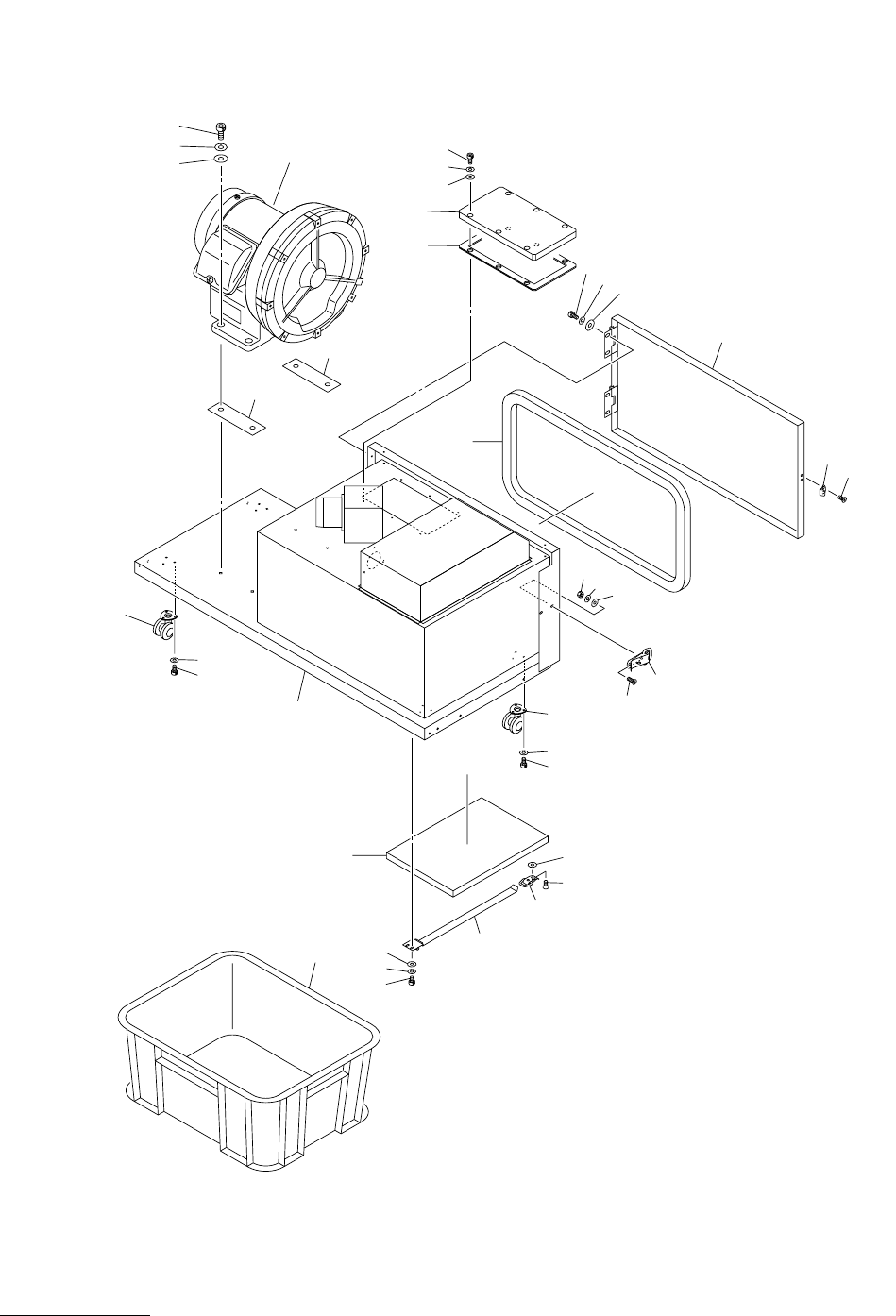

Fig. LB-1 ࠳ࠬ࠻ࡏ࠶ࠢࠬ Dust Box
45
44
43
42
24
25
23
22
21
31
30
29
27
32
7
37
36
35
32
2
4
5
16
15
14
9
11
8
26
1
2
41
41
4
5
12
13
34
33
Fig.LB-1
4797L-002
TCM-X300-002
TCM-X100-002
TCM-X200-002
4797A-002
MODEL TCM-X300
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
195
LB-1
1 630 118 3367 FRAME 1 784LB-010-001
2 630 116 0078 CASTER 4 784LB-010-002
4 411 141 2905 WASHER SPR 4 12 784LB-010-004
5 630 000 7619 BOLT,HEX-SCT 12 784LB-010-005
7 630 003 6206 MECH PARTS(LATEX SPONGE) 1 784LB-010-007
8 630 003 6718 AIR LINE EQPT 1 784LB-010-008
9 630 058 0259 BRACKET 1 784LB-010-009
11 411 141 3902 WASHER V 3X7X0.5 2 784LB-010-011
12 411 141 2806 WASHER SPR 3 2 784LB-010-012
13 630 000 7510 BOLT,HEX-SCT 2 784LB-010-013
14 630 003 6220 MECH PARTS(SNAP LOCKS) 1 784LB-010-014
15 411 002 2600 SCR FLT 3X6 2 784LB-010-015
16 411 141 4107 WASHER V 5X10X1 2 784LB-010-016
21 630 117 8226 SHEET 1 784LB-010-021
22 630 059 7189 PLATE 1 784LB-010-022
23 411 141 4107 WASHER V 5X10X1 6 784LB-010-023
24 411 141 6705 WASHER SPR 5 6 784LB-010-024
25 630 000 7763 BOLT,HEX-SCT 6 784LB-010-025
26 630 003 6503 MECH PARTS(CONTAINER) 1 784LB-010-026
27 630 097 5451 COVER 1 784LB-010-027
29 630 001 0220 WASHER 4 784LB-010-029
30 411 141 6705 WASHER SPR 5 4 784LB-010-030
31 630 000 7756 BOLT,HEX-SCT 4 784LB-010-031
32 630 003 6244 MECH PARTS(SNAP FASTENER) 1 784LB-010-032
33 411 002 2600 SCR FLT 3X6 2 784LB-010-033
34 411 108 7103 SCR FLT 3X10 2 784LB-010-034
35 411 141 3902 WASHER V 3X7X0.5 4 784LB-010-035
36 411 141 2806 WASHER SPR 3 4 784LB-010-036
37 411 140 9905 NUT HEX 3 4 784LB-010-037
41 630 087 6918 MECH PARTS(RUBBER PLATE) 2 784LB-010-041
42 630 116 3116 MOTOR,AC 1 M2,VFC-408AN 784LB-010-042
43 411 141 4503 WASHER V 8X17X1.6 4 784LB-010-043
44 411 141 3100 WASHER SPR 8 4 784LB-010-044
45 630 000 8043 BOLT,HEX-SCT 4 784LB-010-045
MODEL TCM-X300
0211-002
196
࠳ࠬ࠻ࡏ࠶ࠢࠬㇱ DUST BOX SECTION

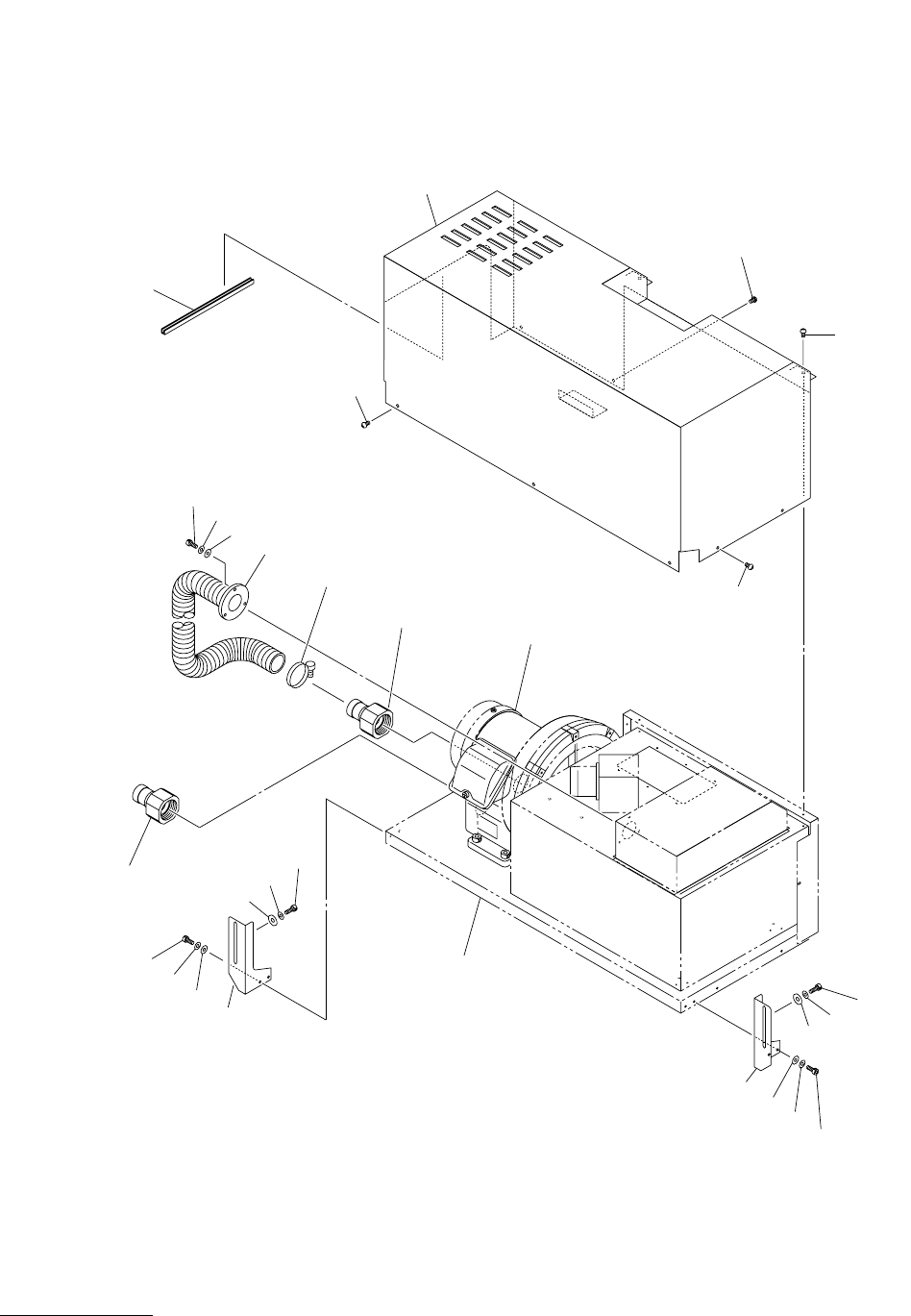

Fig. LB-2 ࠳ࠬ࠻ࡏ࠶ࠢࠬࠞࡃ Dust Box Cover
131
131
131
132
131
112
111
110
107
109
106
128
See Fig.LB-1
Key No.1
See Fig.LB-1
Key No.42
127
126
122
128
127
126
121
123
124
125
123
124
125
130
Fig.LB-2
4797L-002
TCM-X300-002
TCM-X100-002
TCM-X200-002
4797A-002
106
