MODEL TCM-X300 021 1-002 198 ࠞࡃㇱ COVER SECTION Fig. MA-1 ᧄࠞࡃ Body Cover 11 11 21 20 Fig.MA-1 23 11 11 11 11 11 22 11 21 19 18 24 11 11 10 11 11 7 11 11 9 11 24 25 11 11 26 15 11 17 16 4797L-002 TCM-X300-002 30 11 11 1…
MODEL TCM-X300
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
197
LB-2
106 630 116 9606 PIPE FITTINGS 2 784LB-010-106
107 630 118 4074 TUBE 1 784LB-010-107
109 630 009 3544 PIPE FITTINGS(BAND) 1 784LB-010-109
110 411 141 4107 WASHER V 5X10X1 3 784LB-010-110
111 411 141 6705 WASHER SPR 5 3 784LB-010-111
112 630 000 7763 BOLT,HEX-SCT 3 784LB-010-112
121 630 110 5260 BRACKET 1 784LB-010-121
122 630 110 5277 BRACKET 1 784LB-010-122
123 411 141 4107 WASHER V 5X10X1 4 784LB-010-123
124 411 141 6705 WASHER SPR 5 4 784LB-010-124
125 630 000 7763 BOLT,HEX-SCT 4 784LB-010-125
126 630 001 0220 WASHER 4 784LB-010-126
127 411 141 6705 WASHER SPR 5 4 784LB-010-127
128 630 000 7770 BOLT,HEX-SCT 4 784LB-010-128
130 630 110 5291 COVER 1 784LB-010-130
131 411 140 8007 SCR TRS 5X6 8 784LB-010-131
132 630 087 1203 ACCESSORY,WIRING 1 784LB-010-132
MODEL TCM-X300
0211-002
198

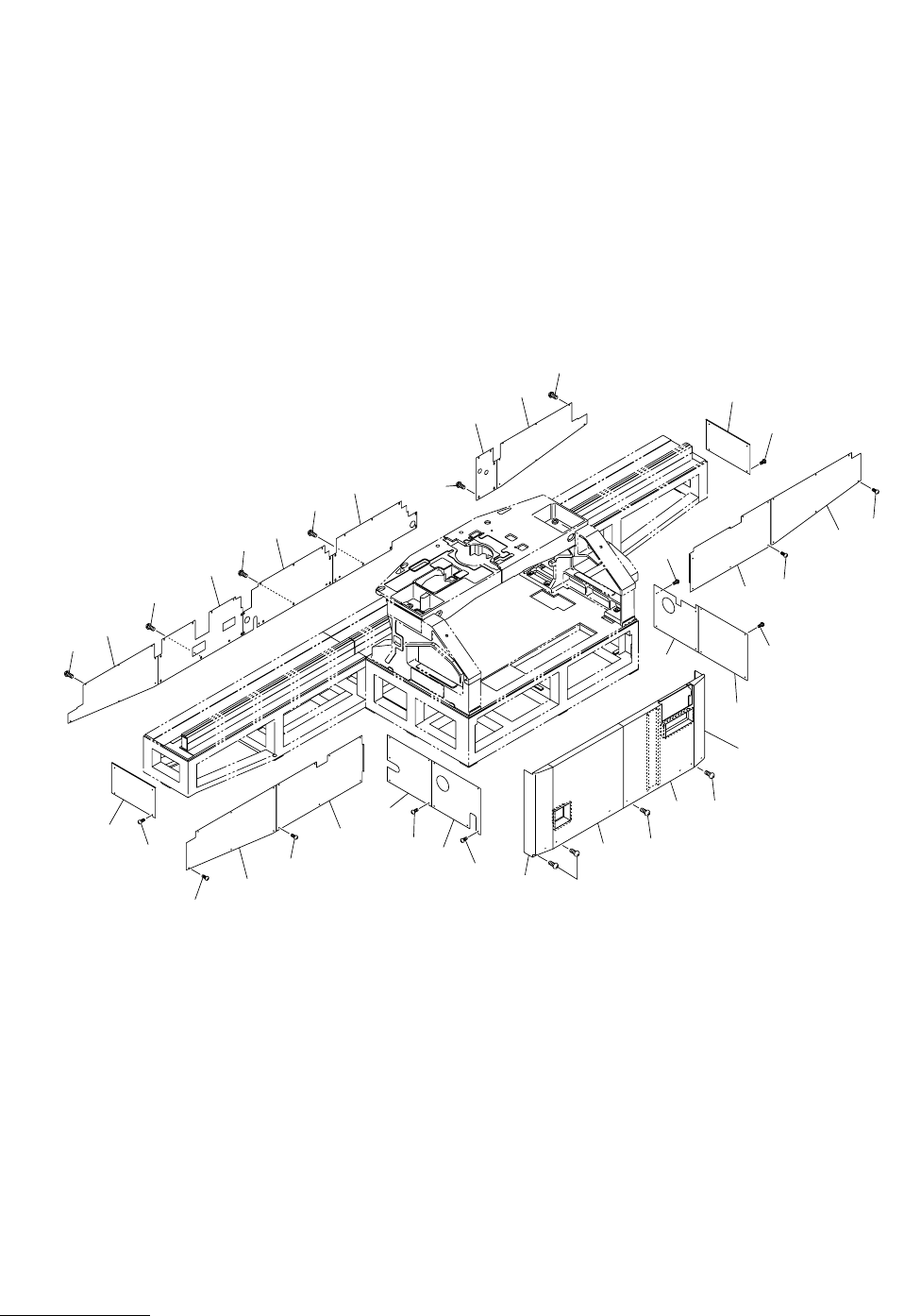

ࠞࡃㇱ COVER SECTION
Fig. MA-1 ᧄࠞࡃ Body Cover
11
11
21
20
Fig.MA-1
23
11
11
11
11
11
22
11
21
19
18
24
11
11
10
11
11
7
11
11
9
11
24
25
11
11
26
15
11
17
16
4797L-002
TCM-X300-002
30
11
11
11
31
32
33
MODEL TCM-X300
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
199
MA-1
7 630 109 3529 COVER(RFR) 1 784MA-010-007
9 630 095 0960 COVER(RFR) 1 784MA-010-009
10 630 116 2744 COVER(FSL) 1 784MA-010-010
11 411 113 9109 SCR TRS 5X10 106 784MA-010-011
15 630 109 3536 COVER(FSL) 1 784MA-010-015
16 630 109 3543 COVER(RFL) 1 784MA-010-016
17 630 095 1011 COVER(RFL) 1 784MA-010-017
18 630 097 2924 COVER 1 784MA-010-018
19 630 097 2931 COVER 1 784MA-010-019
20 630 116 2713 COVER(RBC) 1 784MA-010-020
21 630 116 2720 COVER(RBC) 1 784MA-010-021
22 630 097 2962 COVER 1 784MA-010-022
23 630 097 2979 COVER 1 784MA-010-023
24 630 117 3283 COVER(RS) 2 784MA-010-024
25 630 109 3574 COVER(FSR) 1 784MA-010-025
26 630 109 3581 COVER(FSR) 1 784MA-010-026
30 630 095 1127 COVER 1 784MA-010-030
31 630 097 2139 COVER(ML) 1 784MA-010-031
32 630 098 1223 COVER(MR) 1 784MA-010-032
33 630 097 7790 COVER 1 784MA-010-033
