P-0208-001 - 第216页
MODEL TCM-X300 021 1-002 214 ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION Fig. MB-1 ᓟ㕙ࠞࡃ Rear Cover Fig.MB-1 40 41 42 49 45 39 1 47 45 46 46 45 47 40 41 42 18 36 44 46 45 43 44 44 19 44 47 24 46 45 47 38 28 20 38 49 45 4…
MODEL TCM-X300
0304-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
213
MA-10
901 630 118 1615 COVER(PANEL) 1 784MA-010-901
902 630 110 6663 ASSY,UNIT,DISPLAY 1 784MA-010-902
902 -01 630 110 6618 UNIT,DISPLAY(FRONT) 1
902 -02 630 110 6632 CORD(3M) 1
902 -03 630 110 6656 UNIT,DISPLAY(REAR) 1
902 -04 630 110 6649 CORD(5M) 1
902 -05 630 110 6625 UNIT,DRIVER(CONTROLLER) 1
903 630 118 1783 COVER 1 784MA-010-903
904 630 109 6346 SWITCH,KEYBOARD(JOYSTICK) 1 SPB1,LED1,SPB10(LED10),SPB11,
LED11,SPB12(LED12),SPB13(LED13),
SW3 784MA-010-904
905 630 109 3017 COVER 1 784MA-010-905
906 630 109 3024 STAY 1 784MA-010-906
907 630 109 6919 BRACKET 1 784MA-010-907
908 630 110 1767 MECH PARTS(STAY) 1 784MA-010-908
909 630 110 6120 SPRING,TENSION 2 784MA-010-909
910 630 000 7619 BOLT,HEX-SCT 6 784MA-010-910
911 411 141 2905 WASHER SPR 4 10 784MA-010-911
912 411 141 4008 WASHER V 4X9X0.8 10 784MA-010-912
913 630 106 5670 MECH PARTS(URETHANS) 2 784MA-010-913
914 630 000 7725 BOLT,HEX-SCT 2 784MA-010-914
918 630 000 7626 BOLT,HEX-SCT 4 784MA-010-918
919 411 042 0703 SCR PAN 3X8 7 784MA-010-919
920 411 086 4408 WASHER SPR 3 7 784MA-010-920
921 411 119 1909 WASHER V 3X7X0.5 7 784MA-010-921
922 411 140 8007 SCR TRS 5X6 2 784MA-010-922
923 411 140 7208 SCR FLT 4X6 4 784MA-010-923
924 411 051 1708 SCR TRS 4X6 8 784MA-010-924
925 630 000 7879 BOLT,HEX-SCT 2 784MA-010-925
926 411 141 3001 WASHER SPR 6 2 784MA-010-926
927 630 001 0237 WASHER 2 784MA-010-927
928 630 120 7988 NAME PLATE,PARTS 1 784MA-010-928
929 630 118 1790 PLATE 1 784MA-010-929
930 630 118 1806 PLATE 1 784MA-010-930
931 630 118 1813 PLATE 1 784MA-010-931
932 630 118 1974 PLATE 1 784MA-010-932
933 630 118 1981 PLATE 1 784MA-010-933
934 411 140 7901 SCR TRS 3X4 10 784MA-010-934
MODEL TCM-X300
0211-002
214

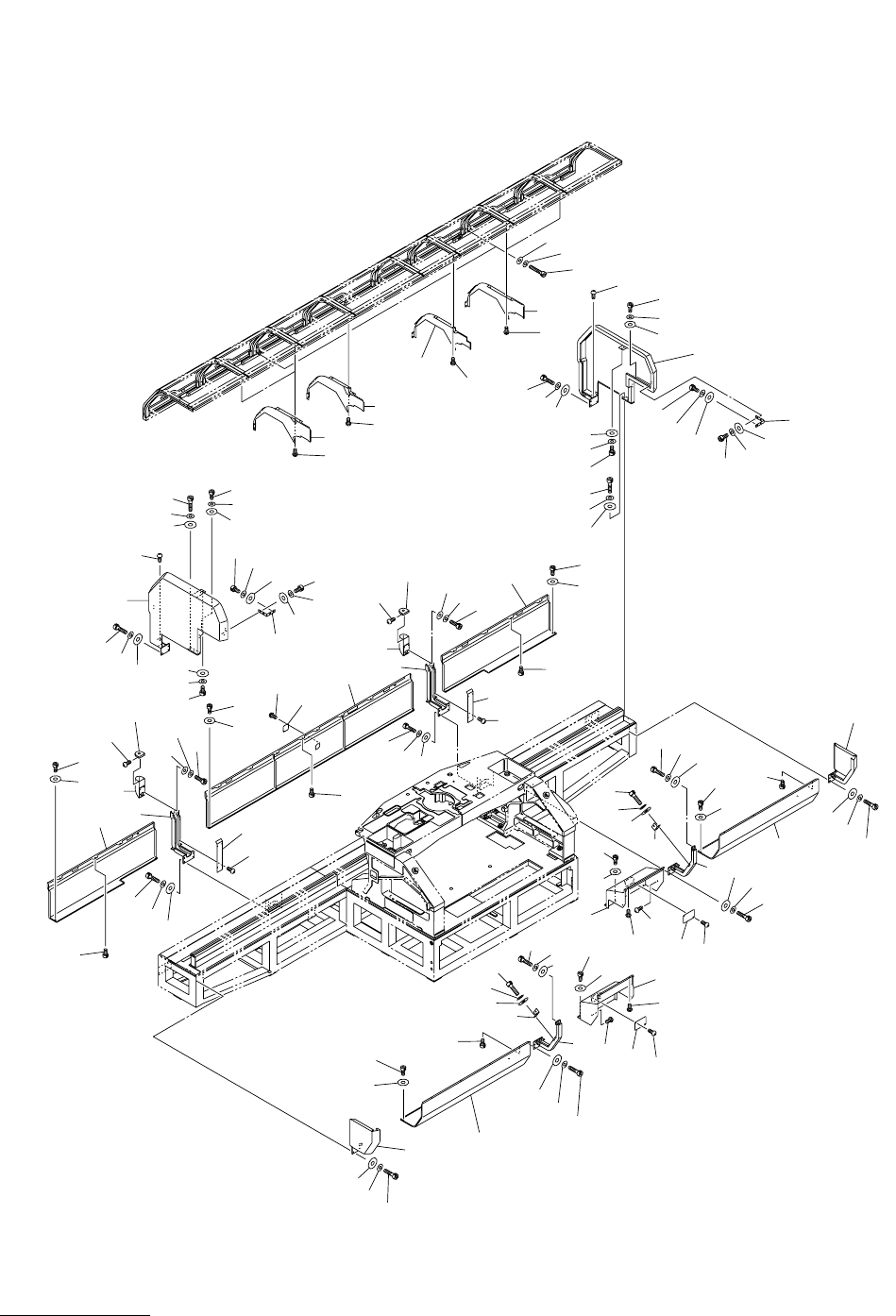

ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION
Fig. MB-1 ᓟ㕙ࠞࡃ Rear Cover
Fig.MB-1
40
41
42
49
45
39
1
47
45
46
46
45
47
40
41
42
18
36
44
46
45
43
44
44
19
44
47
24
46
45
47
38
28
20
38
49
45
43
21
46
29
30
32
6
7
21
6
7
21
8
38
40
41
42
21
46
46
45
47
21
46
21
21
46
17
21
42
21
46
48
48
45
46
34
45
46
44
27
44
38
38
37
5
48
45
46
34
16
12
42
41
40
21
46
42
21
41
40
48
45
46
26
38
37
38
4
41
40
13
42
41
40
45
43
49
38
20
8
38
42
40
41
40
45
46
43
41
42
44
40
41
42
45
46
46
24
45
47
35
44
46
21
2
4797L-002
TCM-X300-002
MODEL TCM-X300
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
215
MB-1
1 630 109 1334 FRAME 1 784MB-010-001
2 630 109 1341 FRAME 1 784MB-010-002
4 630 097 1361 FRAME 1 784MB-010-004
5 630 097 1378 FRAME 1 784MB-010-005
6 630 102 4998 FRAME 2 784MB-010-006
7 630 109 1358 FRAME 2 784MB-010-007
8 630 109 1365 COVER 2 784MB-010-008
12 630 109 1402 FRAME 1 784MB-010-012
13 630 109 1419 FRAME 1 784MB-010-013
16 630 097 4386 COVER 1 784MB-010-016
17 630 097 4393 COVER 1 784MB-010-017
18 630 101 3442 PLATE(R) 2 784MB-010-018
19 630 101 3459 PLATE(L) 2 784MB-010-019
20 630 102 5476 BRACKET(STOP) 2 784MB-010-020
21 630 000 8456 BOLT,HEX-SCT 37 784MB-010-021
24 630 097 3723 SUPPORT 2 784MB-010-024
26 630 103 8551 COVER 1 784MB-010-026
27 630 103 8568 COVER 1 784MB-010-027
28 630 095 9093 COVER 1 784MB-010-028
29 630 109 1372 COVER(R) 1 784MB-010-029
30 630 109 1389 COVER 1 784MB-010-030
32 630 109 1396 COVER(L) 1 784MB-010-032
34 630 109 6100 BRACKET 2 784MB-010-034
35 630 101 0106 PLATE(L) 1 784MB-010-035
36 630 105 4391 PLATE(R) 1 784MB-010-036
37 630 103 8544 COVER 2 784MB-010-037
38 411 140 8007 SCR TRS 5X6 22 784MB-010-038
39 630 000 7794 BOLT,HEX-SCT 4 784MB-010-039
40 630 000 7893 BOLT,HEX-SCT 32 784MB-010-040
41 411 141 3001 WASHER SPR 6 32 784MB-010-041
42 630 001 0237 WASHER 32 784MB-010-042
43 630 000 7756 BOLT,HEX-SCT 10 784MB-010-043
44 411 113 9109 SCR TRS 5X10 42 784MB-010-044
45 411 141 6705 WASHER SPR 5 34 784MB-010-045
46 630 001 0220 WASHER 48 784MB-010-046
47 630 000 7763 BOLT,HEX-SCT 12 784MB-010-047
48 630 000 7770 BOLT,HEX-SCT 12 784MB-010-048
49 411 141 4107 WASHER V 5X10X1 12 784MB-010-049
