MODEL TCM-X300 0203-001 266 ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS P ARTS-1 Fig. RL-3 ࡄࡢ࠻ࡦࠬ T ransformer Power Fig.RL-3 4797L TCM-X300 287 288 289 251 295 291 261 262 299 See Fig.L-1 Key No.9 297 296 267 266 263 265 . 268 260 . 266 294 2…
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
265
RL-2
152 630 086 4984 UNIT,DRIVER 2 APMD14(CHW),APMD19(BPC),
#AK-BX22-SAT4 784RL-010-152
153 630 108 4008 UNIT,DRIVER 1 APMD13(TR),#AK-BX580-SAT3
784RL-010-153
154 630 086 7473 UNIT,DRIVER 1 ASMD6(X),SGDH-30AE-R
784RL-010-154
155 630 086 7480 UNIT,DRIVER 1 ASMD7(Y),SGDH-15AE-R
784RL-010-155
157 630 086 8630 UNIT,DRIVER 1 ASMD8(XYTR),SGDH-A5AE-R
784RL-010-157
158 630 105 2083 PLATE 1 784RL-010-158
159 630 110 6991 PLATE 1 784RL-010-159
160 630 102 5704 BRACKET 1 784RL-010-160
181 630 000 7756 BOLT,HEX-SCT 15 784RL-010-181
182 411 141 6705 WASHER SPR 5 15 784RL-010-182
183 630 001 0220 WASHER 15 784RL-010-183
184 411 113 2803 SCR PAN 5X8 4 784RL-010-184
185 411 008 2109 WASHER SPR 5 4 784RL-010-185
186 411 088 1702 WASHER V 5X10X1 4 784RL-010-186
190 411 114 7807 SCR PAN+SW+W 4X10 4 784RL-010-190
193 411 042 3001 SCR PAN 4X10 12 784RL-010-193
194 411 008 1706 WASHER SPR 4 12 784RL-010-194
195 411 119 2104 WASHER V 4X9X0.8 12 784RL-010-195
MODEL TCM-X300
0203-001
266

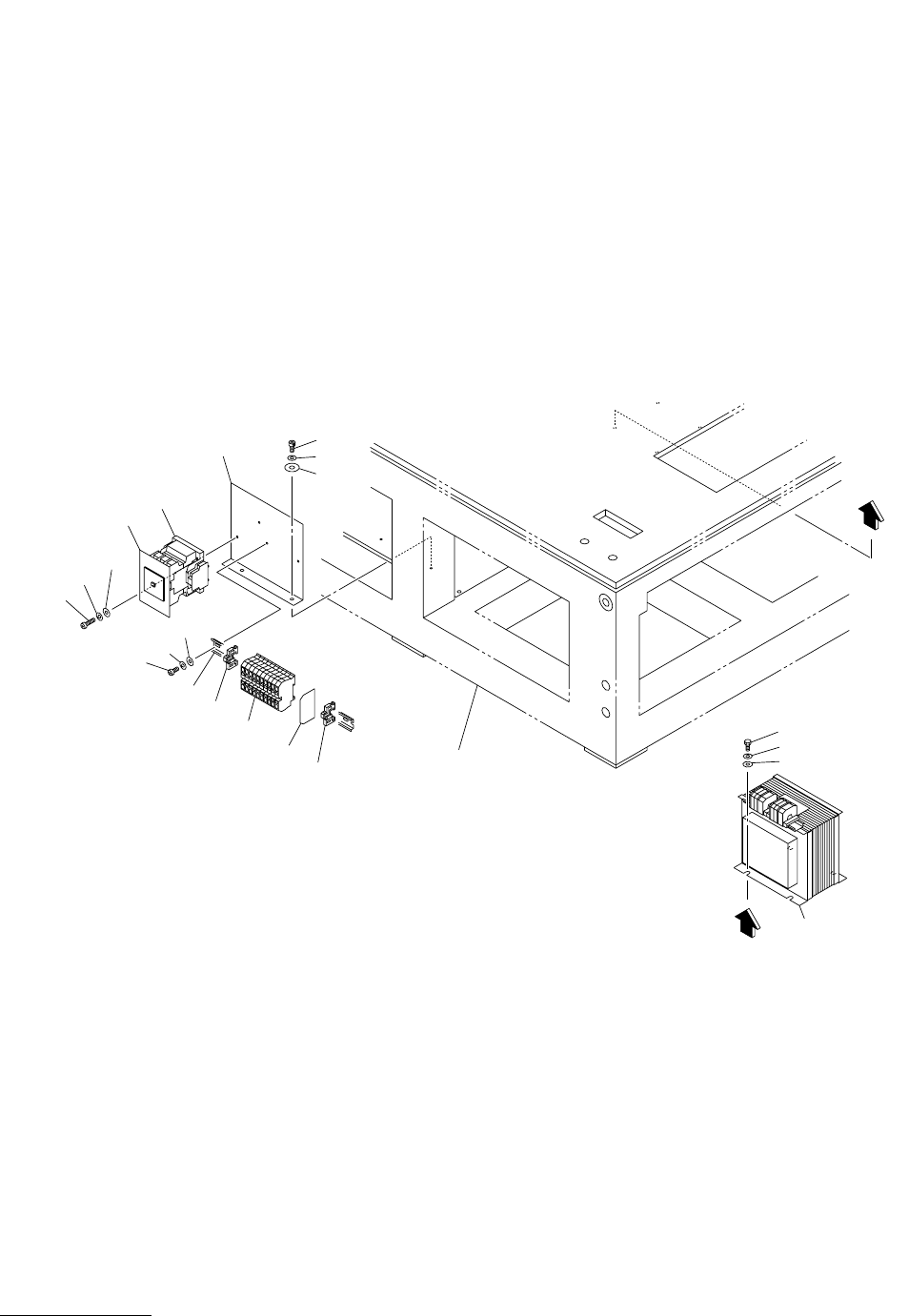

ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1
Fig. RL-3 ࡄࡢ࠻ࡦࠬ Transformer Power
Fig.RL-3
4797L
TCM-X300
287
288
289
251
295
291
261
262
299
See Fig.L-1
Key No.9
297
296
267
266
263
265
.
268
260
.
266
294
293
295
294
264
A
A
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
267
RL-3
251 630 086 2539 TRANSFORMER,POWER 1 T1,#ENT1-2K-TS 784RL-010-251
260 630 114 7697 EM-CONTACTOR 1 KM1 784RL-010-260
261 630 114 7765 COVER 1 784RL-010-261
262 630 092 5890 PANEL 1 784RL-010-262
263 630 092 2844 TERMINAL 10 784RL-010-263
264 630 092 2851 ACCESSORY,WIRING 1 784RL-010-264
265 630 092 2868 ACCESSORY,WIRING 7 784RL-010-265
266 630 049 3672 BRACKET,WIRING 2 784RL-010-266
267 630 089 6497 RAIL,WIRING 1 784RL-010-267
268 630 100 1357 COMP,CR 1 784RL-010-268
287 411 140 5303 BOLT HEX 6X12 4 784RL-010-287
288 411 008 2505 WASHER SPR 6 4 784RL-010-288
289 411 110 3100 WASHER F 6X11.5X1.6 4 784RL-010-289
291 411 162 1505 SCR PAN 4X20 2 784RL-010-291
293 411 042 3001 SCR PAN 4X10 2 784RL-010-293
294 411 008 1706 WASHER SPR 4 4 784RL-010-294
295 411 119 2104 WASHER V 4X9X0.8 4 784RL-010-295
296 630 000 7756 BOLT,HEX-SCT 2 784RL-010-296
297 411 141 6705 WASHER SPR 5 2 784RL-010-297
299 630 001 0220 WASHER 2 784RL-010-299
