MODEL TCM-X300 021 1-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 271 RL-5 45 1 630 000 4243 SO C K E T 1 784RL-010-451 452 630 092 5975 B O X 1 784RL-010-452 45 3 630 1 16 8388 UNI T ,D RI VER 4 ASMD2(F1),ASMD3…
MODEL TCM-X300
0211-002
270

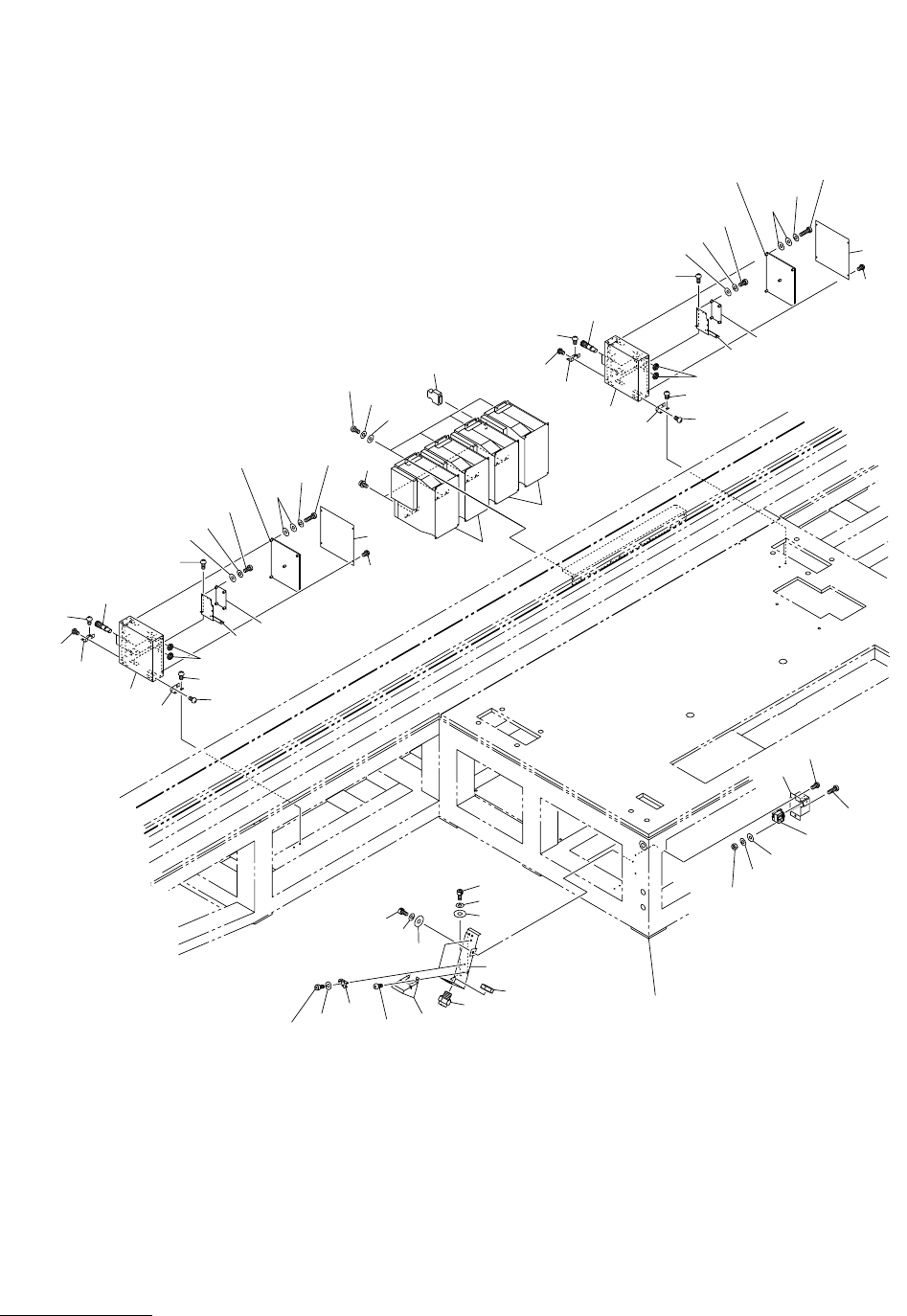

ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1
Fig. RL-5 F ゲࡕ࠲࠼ࠗࡃ F Axis Motor Drivers
455
457
.
492
458
485
495
494
467
469
493
495
494
491
491
Fig.RL-5
4797L-002
TCM-X300-002
464
465
.
455
456
.
464
465
.
464
491
492
459
454
459
492
466
453
453
492
458
485
495
494
467
See Fig.L-1
Key No.9
469
464
491
492
459
454
459
492
491
493
487
488
489
490
495
494
491
498
451
494
495
497
452
496
483
484
486
462
461
460
482
480
479
488
489
463
491
468
MODEL TCM-X300
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
271
RL-5
451 630 000 4243 SOCKET 1 784RL-010-451
452 630 092 5975 BOX 1 784RL-010-452
453 630 116 8388 UNIT,DRIVER 4 ASMD2(F1),ASMD3(F2),ASMD4(F3),
ASMD5(F4),#SGDH-50AE-RY342
784RL-010-453
454 630 094 4914 BOX 2 784RL-010-454
455 630 090 1078 P.C.B,MOUNT(P.C.B.) 2 UA54*001*0000 784RL-010-455
456 630 087 7793 PROGRAM ROM 1 #CPLD CZR12E2 784RL-010-456
457 630 087 7809 PROGRAM ROM 1 #CPLD CZR34 784RL-010-457
458 630 089 2307 COVER 2 784RL-010-458
459 630 093 9422 BRACKET 4 784RL-010-459
460 630 087 4273 ACCESSORY,WIRING 1 784RL-010-460
461 630 111 7607 BRACKET 1 784RL-010-461
462 630 088 4425 ACCESSORY,WIRING 1 784RL-010-462
463 630 048 3833 MECH PARTS(MOUNTING BASES 2 784RL-010-463
464 630 093 1785 FUSE HOLDER 4 784RL-010-464
465 423 022 8104 FUSE 250V 2A 4 F004,F005,F011,F012784RL-010-465
466 630 086 8340 RESISTOR,SPECIAL 1 784RL-010-466
467 630 110 1354 P.C.B,MOUNT 2 UB01*001*0000 784RL-010-467
468 630 112 2663 COVER 1 784RL-010-468
469 630 109 0306 PANEL 2 784RL-010-469
479 630 000 7756 BOLT,HEX-SCT 1 784RL-010-479
480 411 141 6705 WASHER SPR 5 1 784RL-010-480
482 630 001 0220 WASHER 1 784RL-010-482
483 411 140 3804 BOLT HEX-SCT 4X10 2 784RL-010-483
484 411 141 2905 WASHER SPR 4 2 784RL-010-484
485 411 040 6202 SCR PAN 3X10 8 784RL-010-485
486 630 001 0213 WASHER 2 784RL-010-486
487 411 114 7807 SCR PAN+SW+W 4X10 4 784RL-010-487
488 411 113 2803 SCR PAN 5X8 18 784RL-010-488
489 411 008 2109 WASHER SPR 5 18 784RL-010-489
490 411 088 1702 WASHER V 5X10X1 16 784RL-010-490
491 411 140 8007 SCR TRS 5X6 14 784RL-010-491
492 411 051 1708 SCR TRS 4X6 16 784RL-010-492
493 411 162 1604 SCR PAN 3X20 10 784RL-010-493
494 411 119 1909 WASHER V 3X7X0.5 30 784RL-010-494
495 411 086 4408 WASHER SPR 3 20 784RL-010-495
496 411 113 9109 SCR TRS 5X10 2 784RL-010-496
497 411 054 6809 NUT HEX 3 2 784RL-010-497
498 411 113 0700 SCR PAN 3X16 2 784RL-010-498
MODEL TCM-X300
0211-002
272
ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1
