P-0208-001 - 第283页
MODEL TCM-X300 0203-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 281 RM-4 35 1 630 094 4914 B O X 2 784RM-010-351 35 2 630 089 2307 CO VE R 2 784RM-010-352 35 3 630 090 1078 P .C .B ,M OU NT (P .C .B .) 2 UA54*0…
MODEL TCM-X300
0203-001
280
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

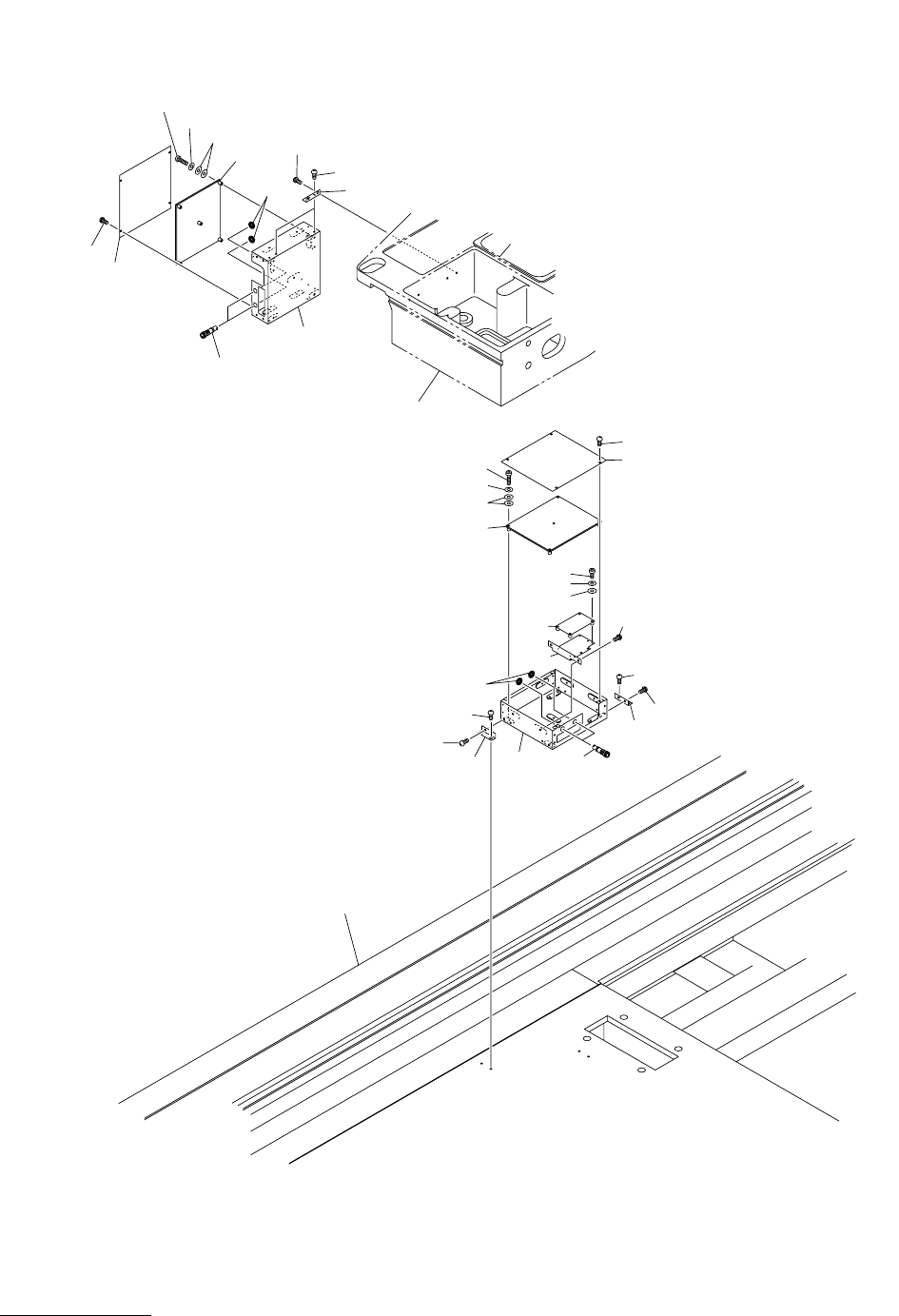

Fig. RM-4 XY ၮ᧼ޔH1 ၮ᧼ XY P.C.B., H1 P.C.B.
Fig.RM-4
4797L
TCM-X300
397
398
399
353
357
396
356
351
395
396
352
355
.
358
357
.
354
398
394
399
359
360
357
353
399
398
397
.
358
395
396
357
356
356
351
396
395
393
396
See Fig.L-1
Key No.12
See Fig.L-1
Key No.9
352
.
MODEL TCM-X300
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
281
RM-4
351 630 094 4914 BOX 2 784RM-010-351
352 630 089 2307 COVER 2 784RM-010-352
353 630 090 1078 P.C.B,MOUNT(P.C.B.) 2 UA54*001*0001 784RM-010-353
354 630 087 7816 PROGRAM ROM 1 #CPLD CZXY 784RM-010-354
355 630 087 7823 PROGRAM ROM 1 #CPLD CZH1 784RM-010-355
356 630 088 7952 BRACKET 4 784RM-010-356
357 630 093 1785 FUSE HOLDER 4 784RM-010-357
358 423 022 8104 FUSE 250V 2A 4 F006,F013,F003,F010
784RM-010-358
359 630 110 1361 P.C.B,MOUNT 1 UB01*001*0001 784RM-010-359
360 630 109 0306 PANEL 1 784RM-010-360
393 411 140 8007 SCR TRS 5X6 2 784RM-010-393
394 411 040 6202 SCR PAN 3X10 4 784RM-010-394
395 411 113 9109 SCR TRS 5X10 8 784RM-010-395
396 411 051 1708 SCR TRS 4X6 16 784RM-010-396
397 411 162 1604 SCR PAN 3X20 10 784RM-010-397
398 411 086 4408 WASHER SPR 3 14 784RM-010-398
399 411 119 1909 WASHER V 3X7X0.5 24 784RM-010-399
MODEL TCM-X300
0203-001
282
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

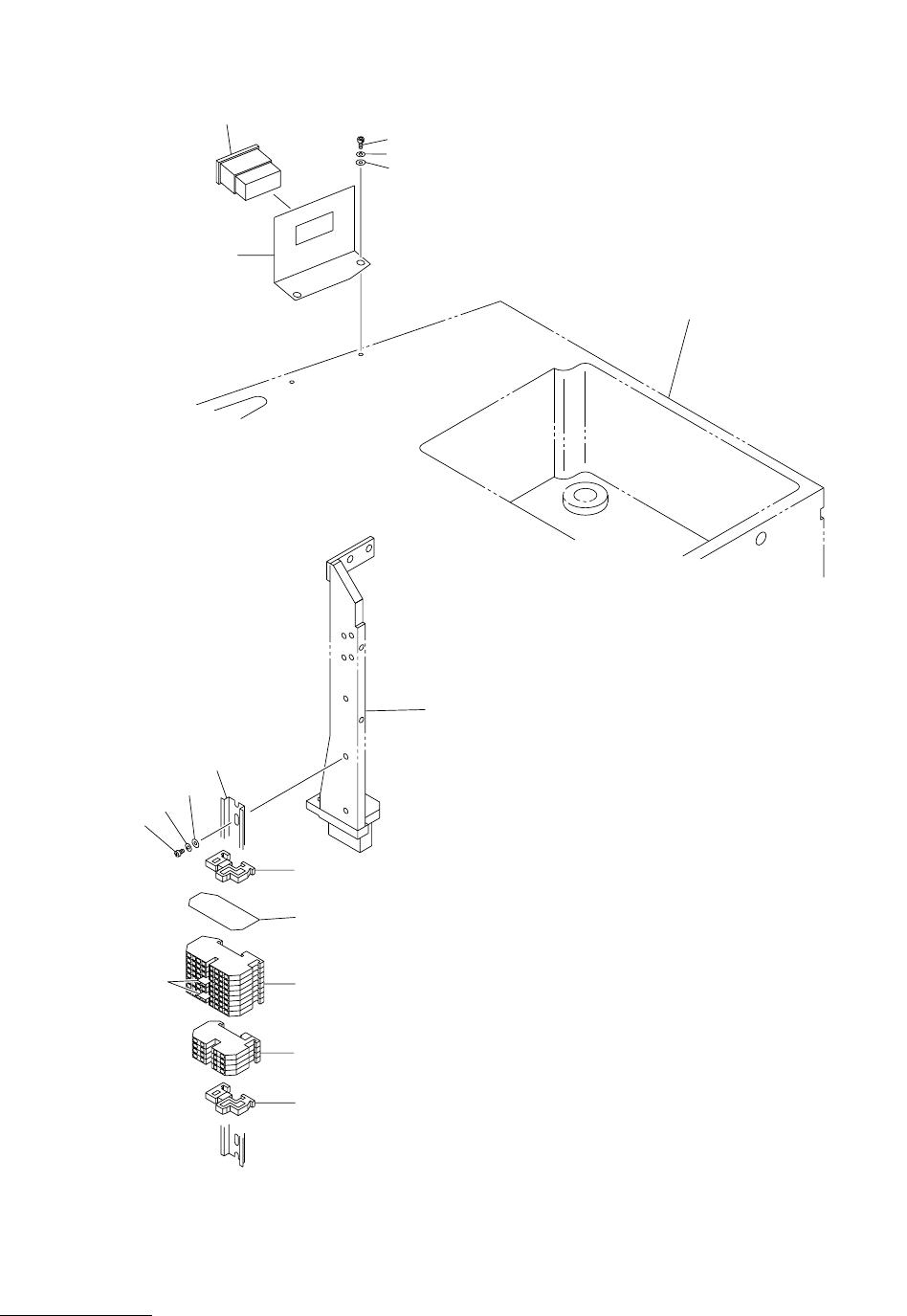

Fig. RM-5
ࠨࠗࠢ࡞ࠞ࠙ࡦ࠲ޔ࠲ࡒ࠽࡞
Cycle Counter, Terminals
Fig.RM-5
4797L
TCM-X300
TCM-X200-002
4797A-002
456
499
498
497
454
494
495
496
See Fig.L-1
Key No.12
See Fig.MA-2
Key No.131
464
463
451
.
457
.
455
458
452
454
453
