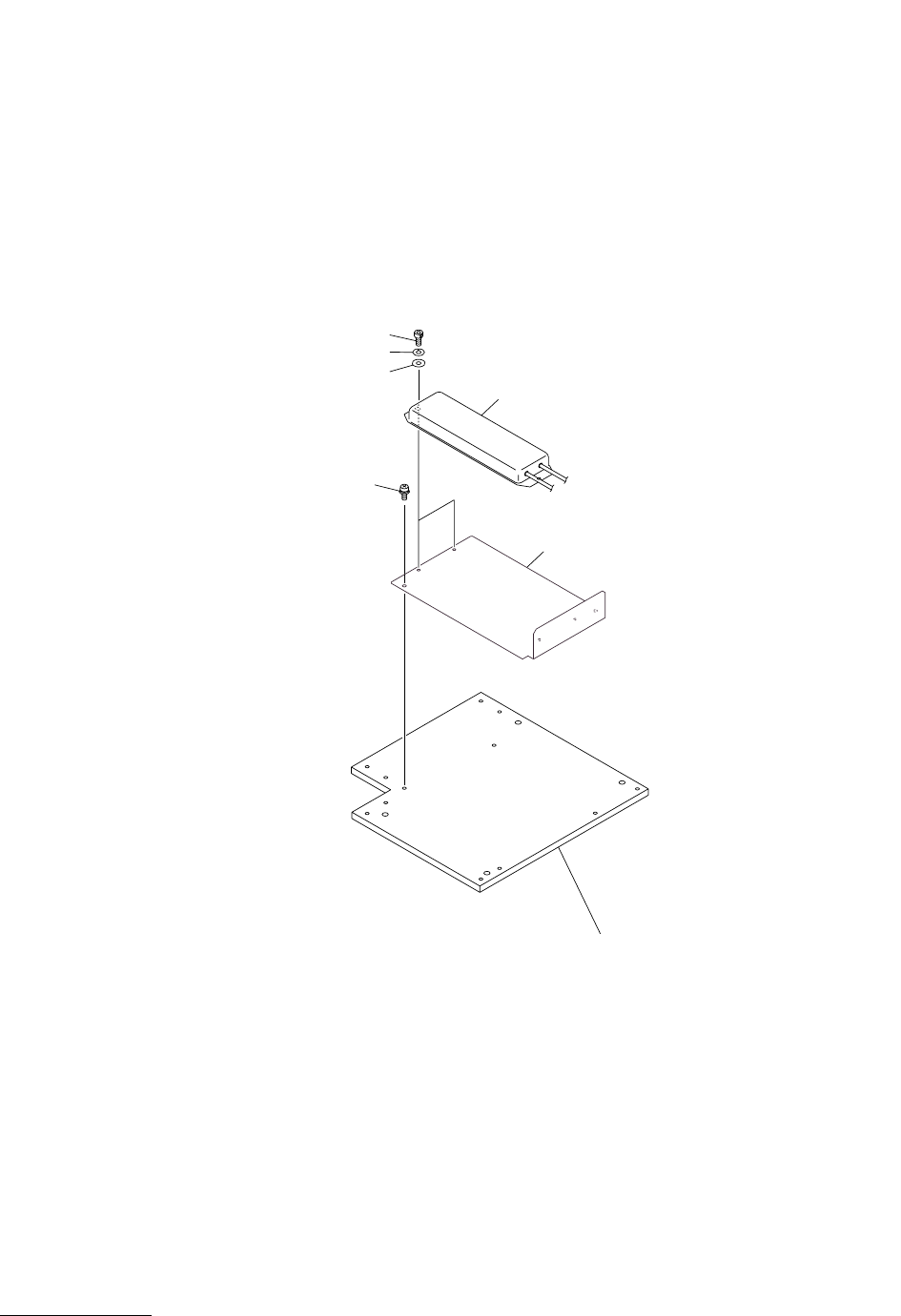

MODEL TCM-X300 0203-001 286 ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS P ARTS-2 Fig. RM-7 ࿁↢ᛶ᛫ Regenerative Resistance Fig.RM-7 TCM-X200 4797L TCM-X300 4797A See Fig.RM-1 Key No.64 See Fig.RM-1 Key No.99 697 651 698 699 652

MODEL TCM-X300

0203-001

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

285

RM-6

502 630 035 2658 BRACKET 1 784RM-010-502

503 411 088 1702 WASHER V 5X10X1 2 784RM-010-503

504 411 008 2109 WASHER SPR 5 2 784RM-010-504

505 411 140 5105 BOLT HEX 5X14 2 784RM-010-505

551 630 111 6112 ASSY,PILOT LAMP 1 H1,H2,H3 784RM-010-551

MODEL TCM-X300

0203-001

286

ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

Fig. RM-7 ࿁↢ᛶ᛫ Regenerative Resistance

Fig.RM-7

TCM-X200

4797L

TCM-X300

4797A

See Fig.RM-1

Key No.64

See Fig.RM-1

Key No.99

697

651

698

699

652

MODEL TCM-X300

0203-001

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

287

651 630 114 3996 ASSY,RESISTOR,SPECIAL 2 784RM-010-651

652 630 114 3170 PLATE 1 784RM-010-652

697 630 000 7602 BOLT,HEX-SCT 4 784RM-010-697

698 411 141 2905 WASHER SPR 4 4 784RM-010-698

699 411 141 4008 WASHER V 4X9X0.8 4 784RM-010-699

RM-7
