P -S047-17
1006-002
6
See Fig.H-2
Key No.123
See Fig.H-1
Key No.13
See Fig.H-1
Key No.13
See Fig.H-2
Key No.122
See Fig.H-1
Key No.43
See Fig.H-1
Key No.47
54
56
55
54
56
55
51
51
53
52
55
56
54
55
56
54
51
24
21
23
22
26
26
51
53
52
23
21
24
22
28

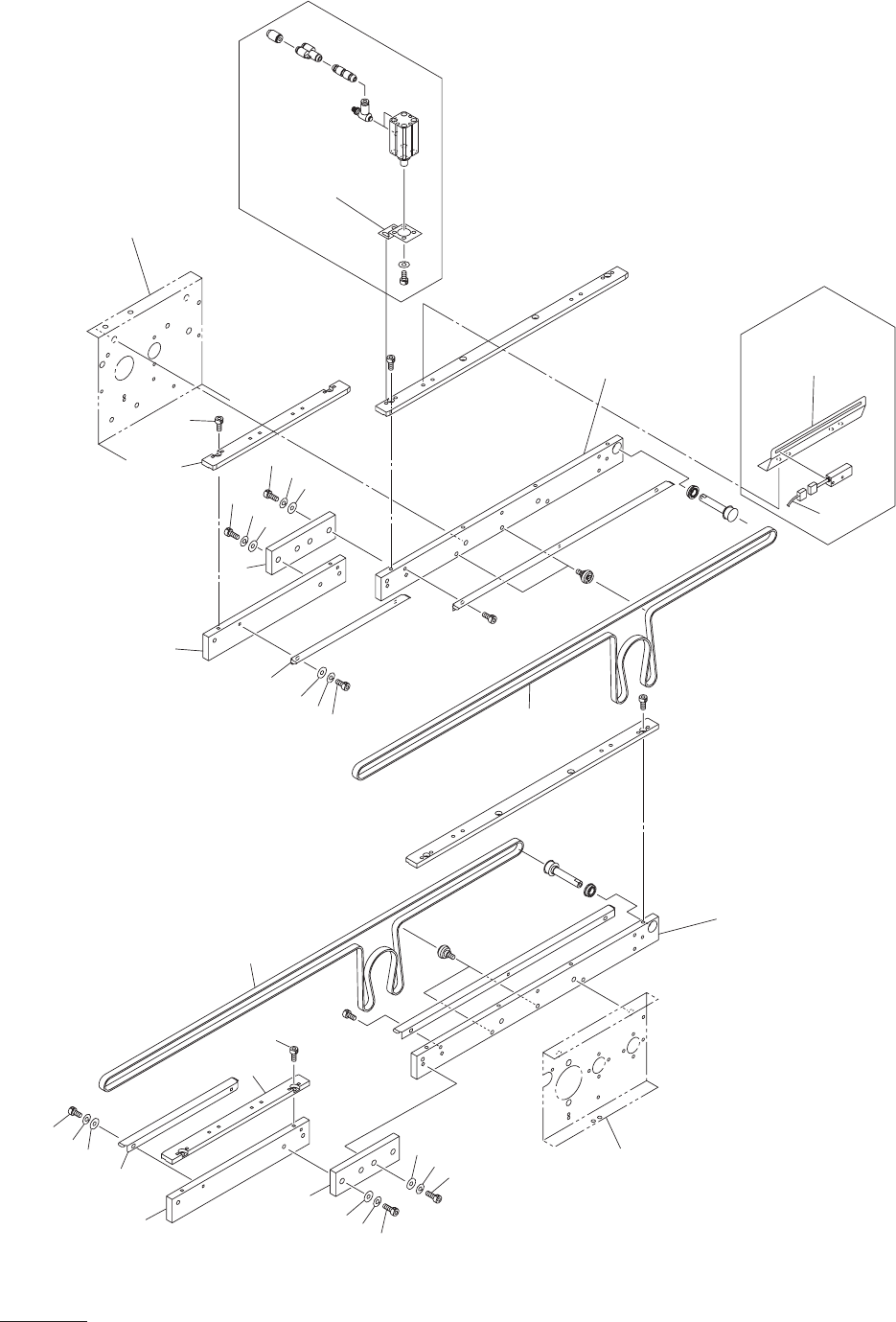

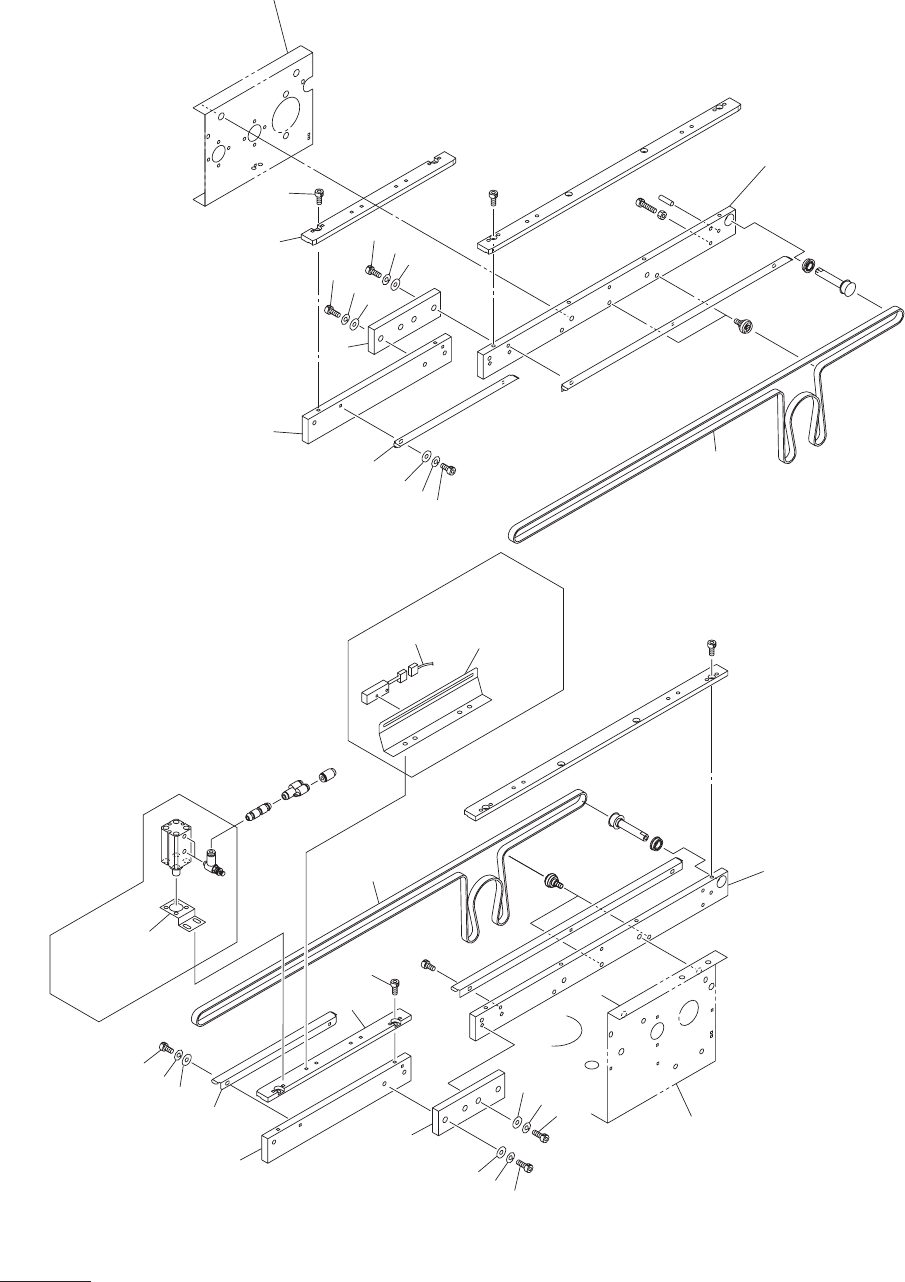

コンベア部
CONVEYOR SECTION
Fig. H-1 L
コンベア搬送部
L Conveyor Transfer Section
( 手前基準、右流れ）
(Front Reference, Right Flow)
7
P -S047-17
1006-002
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
11 6301201047 BELT,FLAT 2→0 831H--110-011 223H0141
21 6300970494 PLATE 2
831H-A110020-A001
211D6660
22 6300970500 GUIDE 2
831H-A110020-A002
212A1654
23 6301483160 PLATE 2
831H-A110020-A003
211DB898
24 6300970531 BLOCK 2
831H-A110020-A004
211G2314
26 6301200415 BELT,FLAT 2
831H-A110020-A011
223H0135
28 6301481210 CORD 1
831H-A110020-A013
4W203626
51 6300007619 BOLT,HEX-SCT 8 M4X8 221A0016
52 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
53 4111412905 WASHER SPR 4 4 SW4 221H0284
54 6300007763 BOLT,HEX-SCT 8 M5X16 221A0031
55 4111414305 WASHER V 6X12.5X1.6 8 FW6 221H0320
56 4111413001 WASHER SPR 6 8 SW6 221H0289
H-1
P -S047-17
1006-002
8
See Fig.H-2
Key No.122
See Fig.H-2
Key No.123
See Fig.H-1
Key No.13
See Fig.H-1
Key No.43
See Fig.H-1
Key No.13
See Fig.H-1
Key No.47
54
56
55
54
56
55
51
51
53
52
55
56
54
55
56
54
51
24
21
23
22
51
53
52
23
21
24
22
26
26
28
コンベア部
CONVEYOR SECTION
Fig. H-1 L
コンベア搬送部
L Conveyor Transfer Section
( 奥基準、右流れ）
(Rear Reference, Right Flow)
