xi Before using the machine W arning label position 2 N Motor units inside machine DON'T TOUCH N Fiducial camera (Camera cover inner side) DON'T TOUCH N Side-view camera N Multi-vision camera DO NOT TOUCH 53 0 …
x
Before using the machine

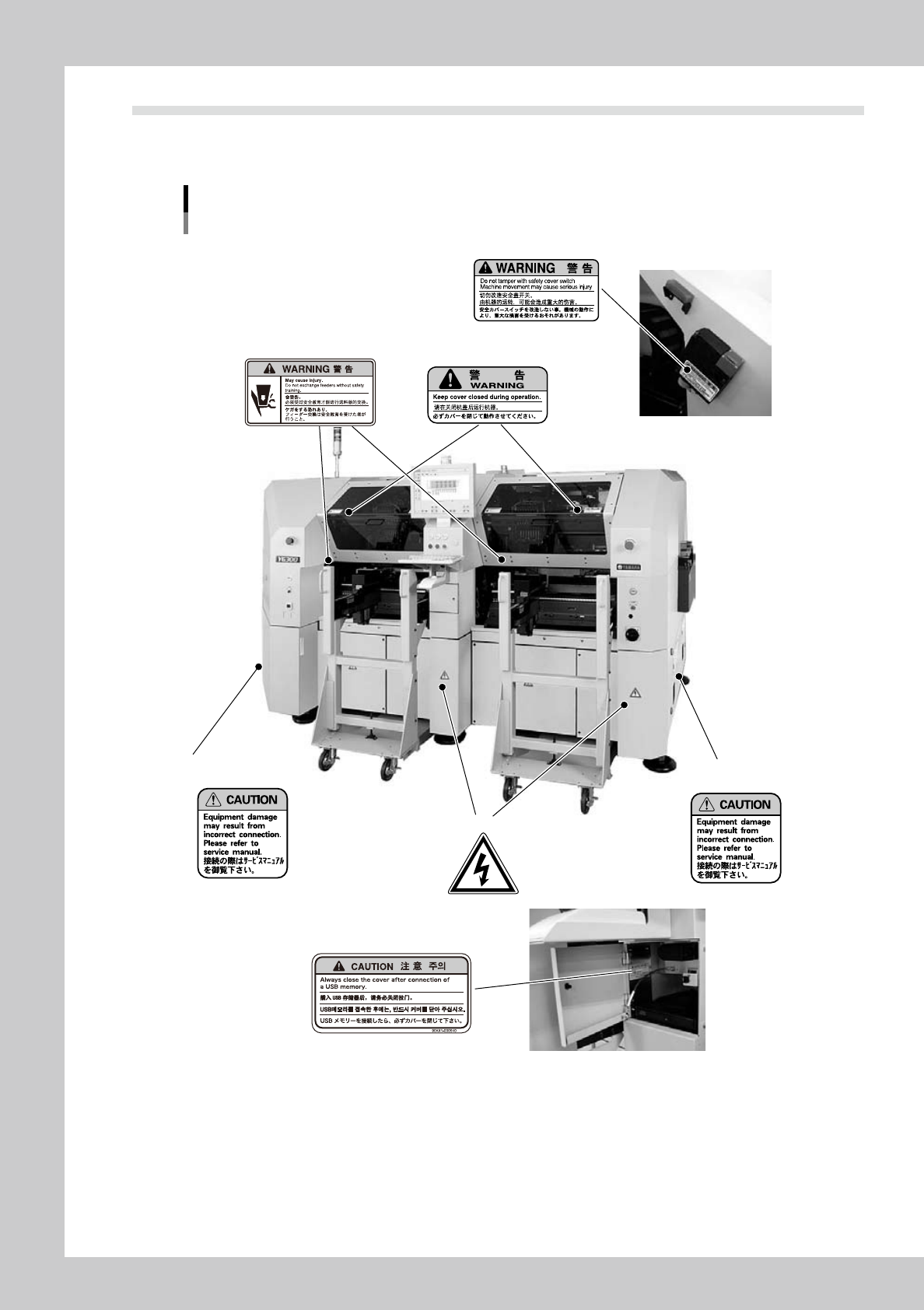

1.4 Warning label positions
Warning labels with information needed to use the machine safely and correctly are affixed to the machine
and peripheral equipment. Be sure to comply with the instructions on these warning labels.
Warning label position
N Safety cover (open/close cover) inner side
N Signal cable connector
(Rear on left side)
N Safety cover (open/close cover)
N Media port
Media port
N Front lower panel
N Signal cable connector
(Rear on right side)
N Feeder section
53000-F1-00
xi
Before using the machine
Warning label position 2
N Motor units inside machine
DON'T
TOUCH
N Fiducial camera
(Camera cover inner side)
DON'T
TOUCH
N Side-view camera
N Multi-vision camera
DO NOT TOUCH
53001-F1-00
xii
Before using the machine
2. Warranty
The machine you have purchased is warranted against malfunctions as described below.
n
Warranty description:
If a failure or breakdown occurs due to defects in workmanship or materials used to manufacture this machine within
one year or 5,000 hours of operation (whichever comes first) after the incoming inspection is complete, then YAMAHA
will repair the defective parts free of charge.
n
Warranty period
The warranty period ends when any of the following applies:
1. After one year has elapsed from the time of installation.
2. After 5,000 hours of operation.
n
Items not covered by the warranty
The warranty does not cover any of the following conditions:
1. Damage as a result of deterioration due to age or wear (e.g., normal discoloration of painted or plated surfaces, wear
of replaceable parts, etc.).
2. Incidents associated with sensory perceptions which have no bearing on the quality or function of the machine (e.g.,
signal sounds emitted by the controller, rotating sounds of the motor, etc.).
3. Damage caused by the user environment (e.g., impurities in the air supply, dust, debris and oil mist in the machine).
n
Exception to warranty repairs
Warranty repairs will not be made if damage is caused by the following:
1. Earthquakes, typhoons, floods, lightning, accidents or fires, other natural or man-made disaster.
2. Modifications or conversions not approved by YAMAHA or its dealers.
3. Use of non-genuine parts, greases or lubricants.
4. Lack of proper maintenance and inspection procedures.
5. Maintenance handled by someone other than the approved dealers.
6. Damage or malfunction due to changes in the machine installation level that may be caused by changes in the
foundation or surrounding environment.
7. The machine was modified or changed in specifications after the incoming inspection is complete.
8. When defective parts replaced free of charge were not returned to the location specified by YAMAHA or YAMAHA
sales representatives within 30 days.
n
Note on
network connections
A precondition for network connections with the YAMAHA YG and Xg series machines is that such connections will be
used in closed networks comprised of a YG or Xg series machine and an off-line PC. The customer must take
responsibility for connections to company in-house networks and to external networks. Please acknowledge that
YAMAHA can bear absolutely no responsibility for networks configured by other than just a YG or Xg series machine and
off-line PC nor can accept responsibility for problems occurring due to network settings and connections.
n
About USB memory devices
• Use the USB memory device (supplied with the machine or purchased from YAMAHA sales reps) specified by YAMAHA
Motors Co., Ltd. Do not use any other type of USB memory device with YAMAHA surface mounters and related
machines. Any problems arising from using other than the specified USB memory device are not covered by our
warranty.
• Do not connect any USB device other than the specified USB memory device to the USB port on the machine. If a
device driver for a wrong device is installed, then the machine might not work correctly. We take no responsibility for
any problems caused by connecting a wrong or inappropriate device.
