1-4 1 Maintenance 2 . 1 . 2 R e p l a c e a b l e p a r t s ( f o r r e p a i r s ) Th e t e r m " R e p l a c e a b l e p a r t s " i n t h i s m a n u a l i n d i c a t e s p a r t s t h a t m i g h t c a u s…
1-3

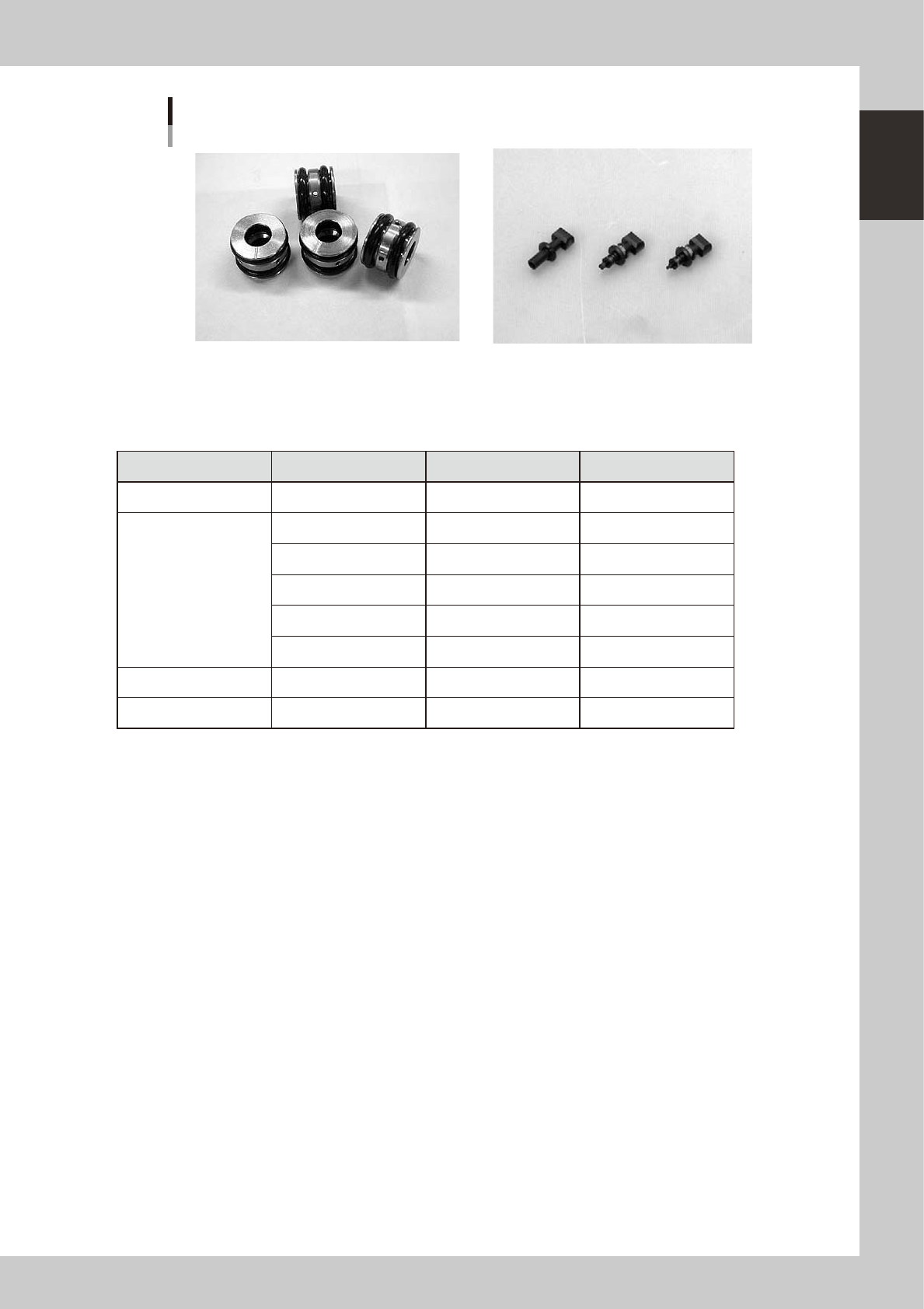

1
Maintenance
Consumable parts
Optional parts
Feeder air joint
Nozzles
53101-F1-00
n
Consumable parts
Optional parts
Product Name Parts List Designation Parts No. Note
Feeder air joint
AIR JOINT KG2-M3407-A0X
Nozzles
NOZZLE 301ASSY. KHN-M7710-A0X
NOZZLE 302 ASSY. KHN-M7720-A0X
NOZZLE 303 ASSY. KHN-M7730-00X
NOZZLE 306 ASSY. KHN-M7760-00X
NOZZLE 306 ASSY. KHN-M7790-A0X
Filter (large) for blow station
FILTER KGR-M9933-F0X
Filter (small) for blow station
FILTER KGR-M9934-F0X
1-4
1
Maintenance
2.1.2 Replaceable parts (for repairs)
The term "Replaceable parts" in this manual indicates parts that might cause a machine stoppage as these parts
lose their functions but do not require machine adjustment after replacement work. Methods for replacing the
following parts are described in this manual.
Replaceable parts
Replace if broken
Operate valve +ejector body
Conveyor unit valve
Blow valve
Feeder valve
Operate valve
Shaft blow valve
Ejector body
Blow valve
Manifold
53102-F1-00
n
Replaceable parts list
Replace if broken.
Product Name Parts List Designation Parts No. Note
Feeder valve VALVE KIT KGA-M37P0-00X
For feeder drive (with air hose
supplied)
Ejector assembly VALVE UNIT KGS-M7171-A0X
Operate valve + Ejector body +
Vacuum break valve
Blow valve VALVE KM1-M7163-20X For vacuum break
Conveyor unit valve
VALVE(SPARE) KG2-M8582-40X Exit stopper, etc.
Operate valve VALVE KM1-M7163-30X For air ejection
Shaft blow valve VALVE KGS-M7176-00X Exhaust stop valve
Transfer claw valve VALVE KH2-M718-00X For transfer claw drive
Push-up valve VALVE KHN-M9224-00X
1-5
1
Maintenance
2.2 Maintenance tools
2.2.1 Cleaning tools
Cleaning tools
Parts supplied with machine
Nozzle cleaning wire Cleaning kit
Feeder plate cleaning brush
53103-F1-00
n
Cleaning tools
Parts supplied with machine
Product Name Parts List Designation Parts No. Note
Nozzle cleaning wire
NEEDLE ASSY KV8-M8883-A0X
Nozzle tip cleaning tape
TAPE, CLEANER KGT-M8895-00X
Cleaning kit
CLEANING KIT KHN-M8860-00X Exclusive for YG300
Feeder plate cleaning brush
BRUSH, FEEDER KV7-M8880-20X
