1
Maintenance

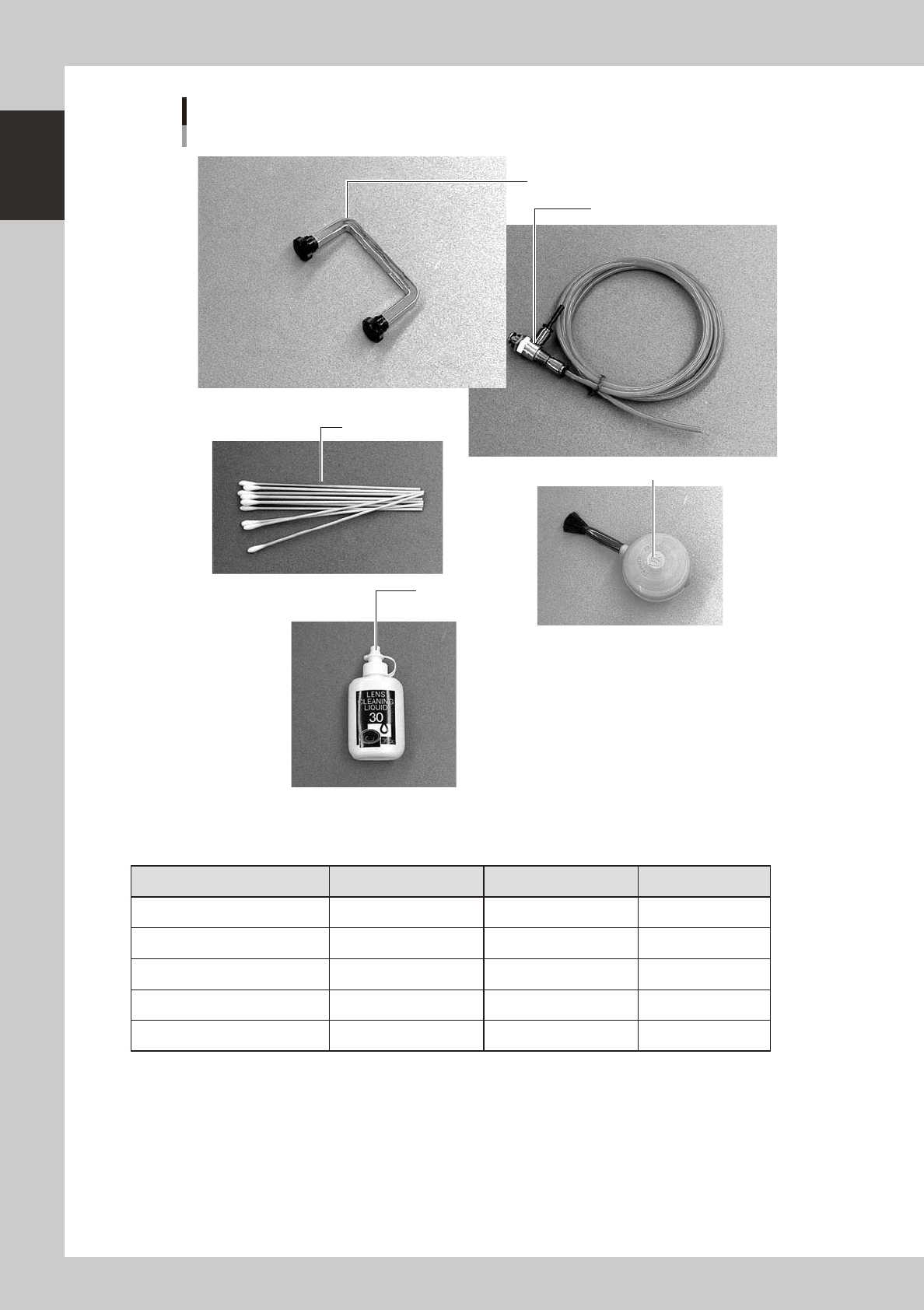

Nozzle cleaning wire handle
Air blow gun
Cleaning tools
Optional parts
Cotton swab sticks
Lens cleaner
Lens blower brush
53104-F1-00
n
Cleaning tools
Optional parts
Product Name Parts List Designation Parts No. Note
Nozzle cleaning wire handle
NEEDLE CLEANER ASSY
KV8-M8881-A0X
Air blow gun
AIR GUN ASSY KU4-M8590-00X
Cotton swab sticks
SWAB KGA-M3802-00X
Lens blower brush BLOWER KGA-M3803-00X
Lens cleaner CLEANER, LENS KGA-M3801-00X
1-7
1
Maintenance
2.2.2 Lubricating tools and grease
Lubricating tools and grease
Parts supplied with machine
Lithium-based grease NSL
Oil syringe for nozzle holder
53105-F1-00
n
Lubricating tools and grease
Parts supplied with machine
Product Name Parts List Designation Parts No. Note
Lithium-based grease
GREASE PACK K48-M3856-00X NSL 80g
Oil syringe for nozzle holder
SYRING, OIL KV8-M8870-00X Turbine oil VG32
n
Precautions when handling grease
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT GETS INTO THE EYES. BEFORE HANDLING THE GREASE OR
LUBRICANT, WEAR SAFETY GOGGLES TO ENSURE THE GREASE OR LUBRICANT DOES NOT GET INTO THE EYES.
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT COMES INTO CONTACT WITH SKIN. BE SURE TO WEAR PROTECTIVE
GLOVES TO PREVENT CONTACT WITH SKIN.
w
WARNING
 DO NOT TAKE ORALLY OR EAT GREASE OR LUBRICANT. EATING WILL CAUSE DIARRHEA AND VOMITING.
c
CAUTION
After use, tightly cap the grease tube to ensure dust, debris and moisture do not enter inside. Store the grease in a
dark location not exposed to direct sunlight and keep it away from fire and heating sources.
1-8
1
Maintenance
Lubricating and greasing tools
Optional parts
Grease gun
Grease gun nozzle
(flexible type)
Grease gun nozzle
(bent type)
53106-F1-00
n
Lubricating and greasing tools
Optional parts
Product Name Parts List Designation Parts No. Note
Grease gun GREASE GUN K48-M3852-00X PH-100
Grease gun nozzle GREASE NOZZLE K48-M3857-00X Flexible type
Grease gun nozzle GREASE NOZZLE K48-M3854-00X Bent (30°) type
