3-18 3 Periodic maintenance items 2 . 8 C l e a n i n g a n d g r e a s i n g t h e Z - a x i s T o c l e a n a n d g r e a s e t h e Z - a x i s u s e d t o r a i s e a n d l o w e r t h e a l p i n e s h a f t o f e a …
3-17
3
Periodic maintenance items
2.7.2 Cleaning and greasing the T-axis linear guides
1
Remove the two T-axis covers.
Use the hex wrench to remove the bolts
securing the covers (6 bolts per cover) and
remove the covers.
e
2
Press the emergency stop button.
The machine must be in emergency stop to
ensure safety during work.
3
Clean the T-axis linear guides.
Wipe away the old grease and dirt from the
linear guides with a lint-free cloth or paper
towel (for clean room use).
53329-F1-00
c
CAUTION
Wipe away the old grease and dirt in the grooves of the
linear guides.
4
Apply new grease to the linear
guides.
Use the grease gun to supply the specified
grease (NSL) to the T-axis grease nipples (see
photos at right).
53330-F1-00
5
Remove excess grease.
After moving the T-axis unit back and forth a
few times, wipe away excess grease.
c
CAUTION
Repeat the above steps until finally there are no longer
any grease deposits.
6
Reattach the
T-axis
cover.
c
CAUTION
Be sure to reattach the covers back to their original
positions. If production starts without reattaching the
covers, spattering grease might badly affect the
production yield.

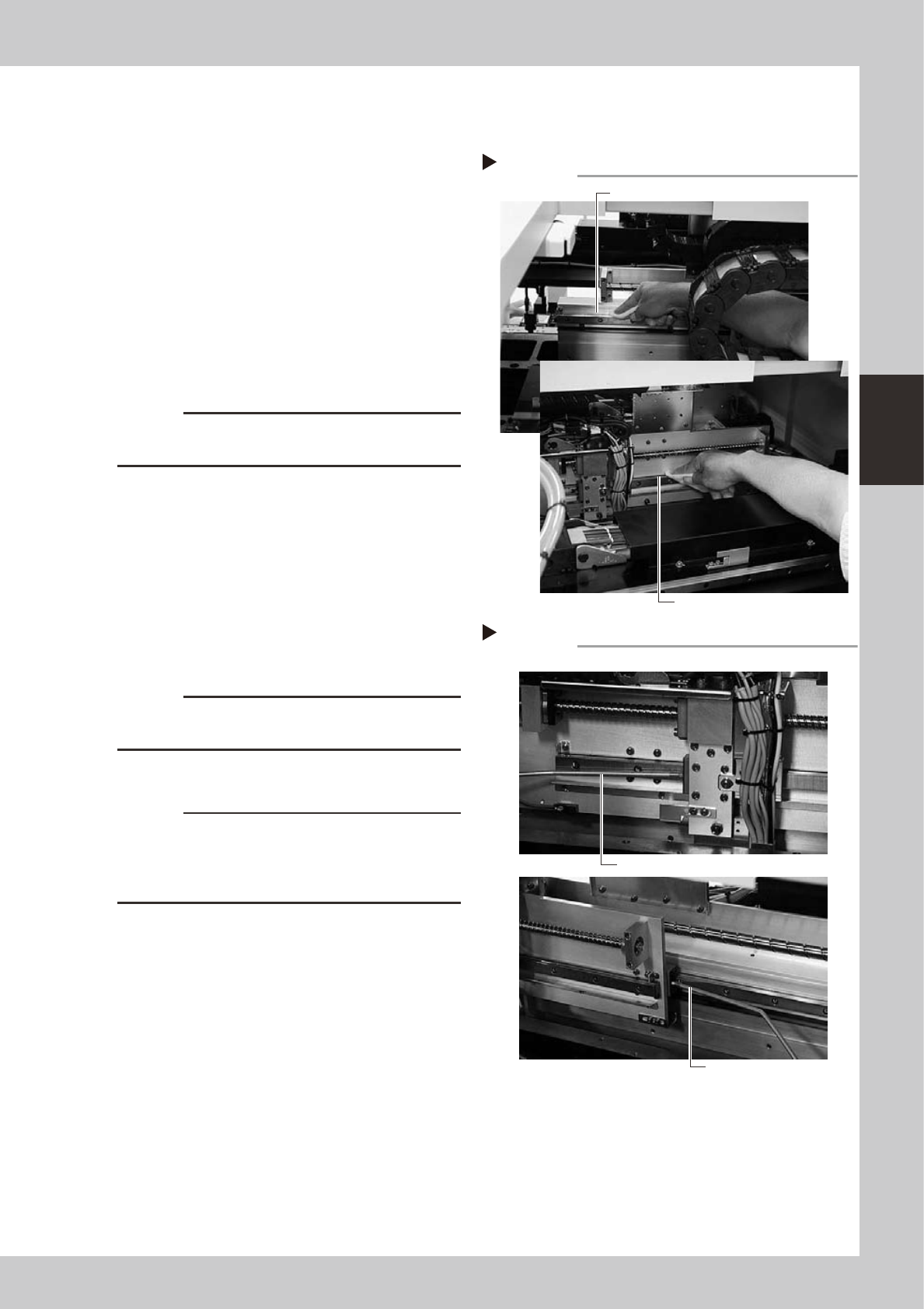

Cleaning the T-axis linear guides
Step 3
T1-axis linear guide
T2-axis linear guide
Greasing the T-axis linear guides
Step 4
T1 axis
T2 axis
Grease gun
Grease gun
3-18
3
Periodic maintenance items
2.8 Cleaning and greasing the Z-axis
To clean and grease the Z-axis used to raise and lower the alpine shaft of each head, follow the steps below.
Prepare the specified grease (NSL).
1
Turn off the machine power switch.
Quit the software and turn off the machine
power switch.
2
Apply grease to the Z-axis shafts.
Apply a thin uniform coat of the specified
grease (NSL) by hand over the surface of
each shaft.
53331-F1-00
3
Wipe excess grease.
After moving the Z-axis shafts a few times,
wipe away excess grease.

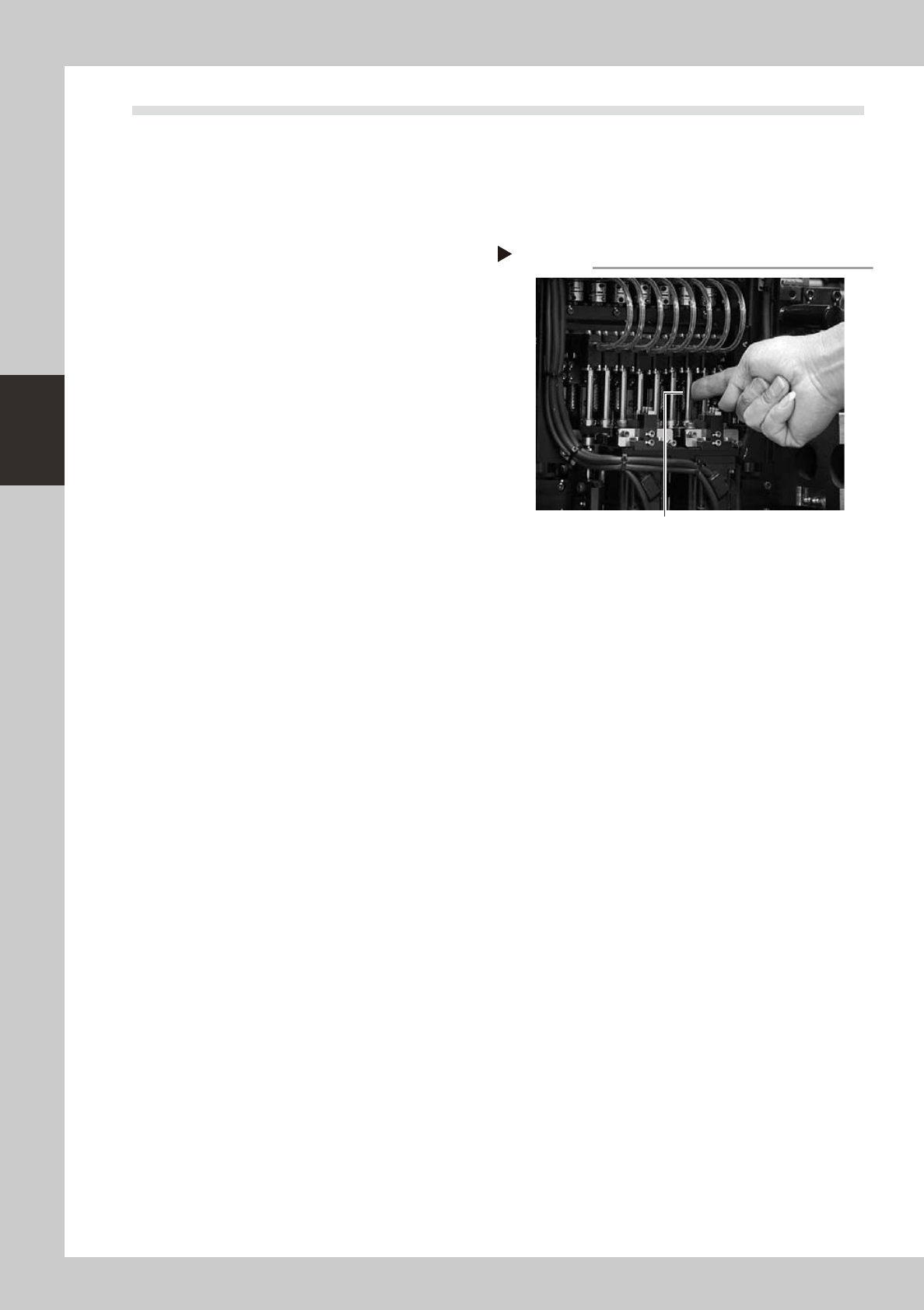

Greasing the Z-axis shafts
Step 2
Z-axis shaft
3-19
3
Periodic maintenance items
2.9 Inspecting and cleaning the air/mist filters
Air/mist filters are used to prevent oil, mist and other impurities in the air compressor from penetrating into the
machine. These filters should be inspected and cleaned periodically as instructed below. (The filter closer to
the air coupler is the air filter and the other one is the mist filter.)
n
Cleaning the filter cup
1
Check the inside of the filer cup.
Check for oil or water deposits in the filter
cup through the window. If the window is
dirty, follow the steps below to clean the
filter cup.
Reference
The drain cock at the bottom of the filter cup is an
auto-drain type. It automatically drains the oil or water
when deposited in the cup. We recommend
connecting a hose to this drain cock.
2
Disconnect the air hose from the
air coupler.
c
CAUTION
When disconnecting the air hose, be careful not to
allow oil, water or impurities to splash outwards.
3
Remove the filter cup.
While pressing the unlock button on the side
of the filter cup, turn it clockwise, and pull
the filter cup downwards.
53332-F1-00
4
Clean the inside of the filter cup.
1. Lightly clean the filter cup with water.
2. Then, pour water-diluted neutral
detergent into the filter cup and clean
the inside while shaking it.
3. Air blow the filter cup and wipe away
any moisture with clean cloth or paper.
53333-F1-00
5
Reattach the filter cup.
Attach the filter cup in the reverse order of
the removal procedure.
n
NOTE
Leave the filter cup removed to clean the air filter as
explained in the next procedure.
6
Reconnect the air hose to the air
coupler.
After connecting the air hose, check that no
air is leaking.

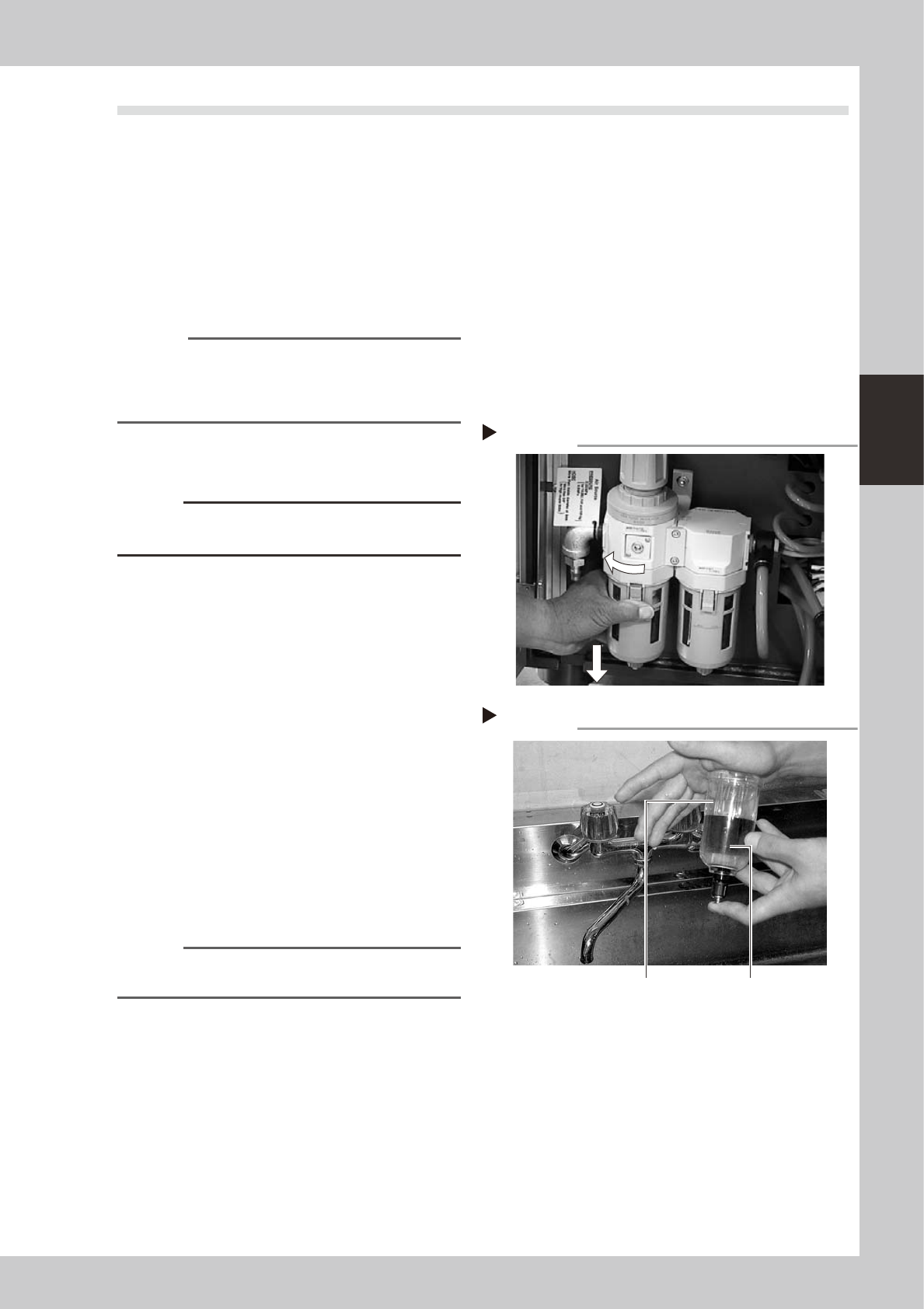

Removing the filter cup
Step 3
Cleaning the filter cup
Step 4
Filter cup
Water-diluted
neutral detergent
