Installation

Fitting the Sensors Fitting the Sensors with C&P6/12

68 Option Verify Reject Bin Option Abfrage Abwurfbehälter

Nozzle reject bin sensor for C&P6/12 (DLM)

1. Sensor 1

2. Sensor 2

Sensor S2 in park position

► If there is no nozzle changer fitted, fit sensor S2 (1) in

the park position.

► Screw the sensor plate [03006260-xx] (2) provided

into place, next to the sensor.

► If there is a second nozzle changer row fitted in the

placement area with the C&P6 or C&P12 placement

head, we recommend insulating the edge of the pro-

tective sheet with a suitable edge protector (1) or ad-

hesive tape. Thus any damage of the reject bin

sensor cabels can be avoided.

Installation

Overview of sensor park position Connecting the Sensors to the CAN Nodes

Option Verify Reject Bin Option Abfrage Abwurfbehälter 69

3.1.4 Overview of sensor park position

► Sensors which are not used must be fixed into the park position.

3.2 Connecting the Sensors to the CAN Nodes

The main task of the CAN node is to control the tape cutter.

The cabels (2) to (5) (see section "3.2.1 Circuit Diagram for Sensors with CAN Nodes" [ ➙ 71]) are run

as a default in the component feed device and connected to the CAN node option. The connectors can

therefore be found on the back of the component feed device, above the empty tape duct.

► Connect the X series/HF R2 cable for the reject bin [03022078-xx] to the cable from the CAN nodes

option [03035229-xx].

Sensor park position

for HF

Sensor park position

for X series reject bin

Sensor park position

for TwinHead with MTC

CAUTION

1-Wire-Hub or CAN node

Although some component feed devices already have the cables for the CAN node module

ready, the old version of the cutter control is still used. In this case, you either need to convert

to the CAN node module or use the 1 wire hub. Mixed configurations in the same machine are

not possible.

► Old cutter control board: [03006411-xx]

► New cutter control board for CAN node module [03052927-xx]

► From machine number B752 the component feed device has been converted fully to the

CAN node option.

► For conversion to the CAN nodes option, please contact your Siemens Service team.

Installation

Connecting the Sensors to the CAN Nodes Overview of sensor park position

70 Option Verify Reject Bin Option Abfrage Abwurfbehälter

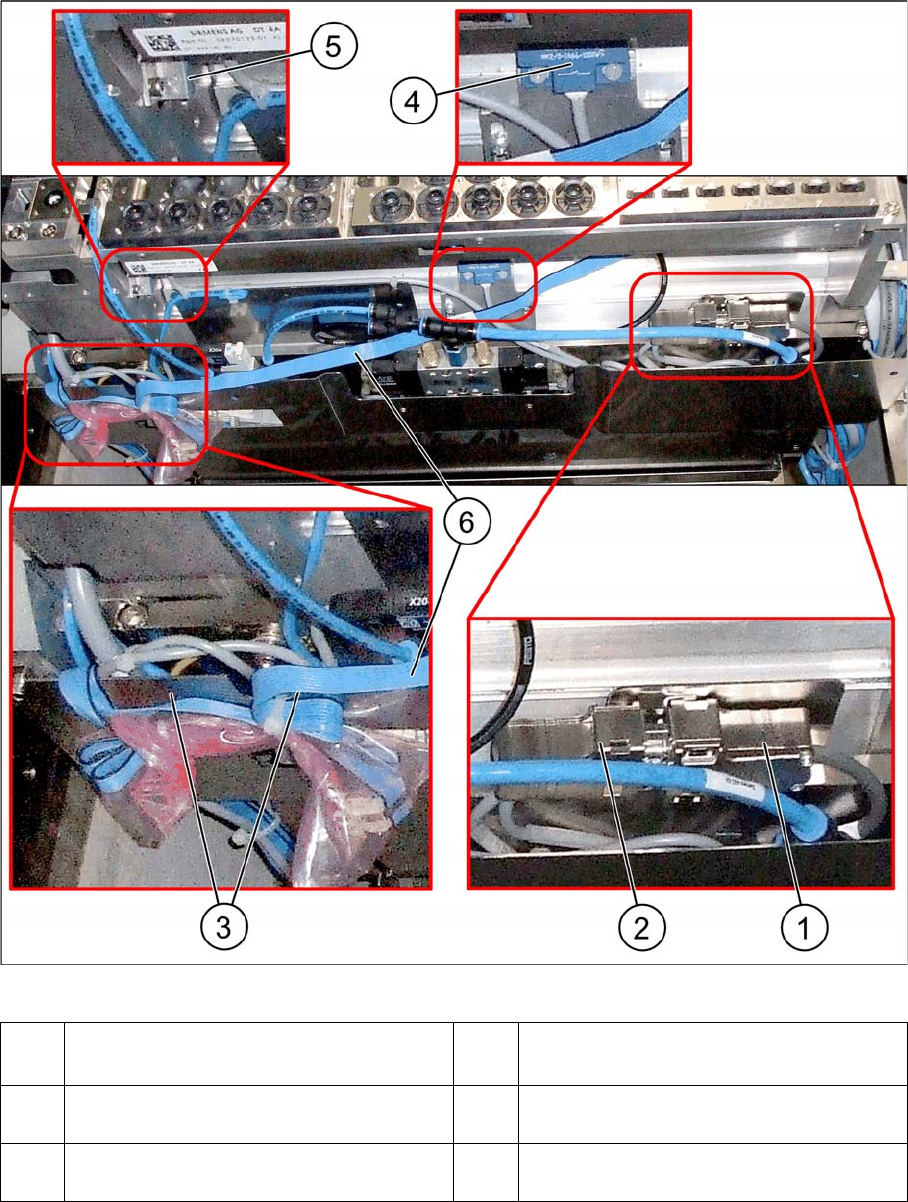

Connecting the sensor connector to the CAN nodes infrastructure

1 Connector X2*q

Cable from CAN nodes [03035229-xx]

2 Cable X series/HF R2: reject bin

[03022078-xx]

3 Position of unused cable at CAN nodes. 4 Sensor S1 on the reject bin 6x6 for C&P20

and CPP

5 Sensor S2 on the nozzle reject bin C&P20

and CPP

6 Cable from CAN nodes to nozzle changer
