Installation Fitting and Connecting the 1 Wire Hub Fitting at Location with MTC 74 Option Verify Reject Bin Option Abfrage Abwurfbehälter 3.3.2 Fitting at Location with MTC 1-Wire-Hub on TwinHe ad no zzle ch anger at loc…
Installation
Fitting on the Component Feed Device Fitting and Connecting the 1 Wire Hub
Option Verify Reject Bin Option Abfrage Abwurfbehälter 73
LAN cable routing
1. Patch cable: 1 wire distributor - 1-Wire-Hub CAT5
2. Recesses on the machine base
► Unthread the patch cable (X1*q) from the machine
frame and run it to the 1 wire hub. Fix the cable into
place with suitable ties or similar.
Connecting the sub connector to the 1 wire hub
1. Patch cable: 1 wire distributor - 1-Wire-Hub CAT5
2. 1 wire hub module CAT5 [03041473-xx]
3. Connection for verify reject bin cable
► Connect the patch cable to the 1 wire hub.
► Connect the sub D connector x2*q to the 1 wire hub
and screw tight.
Installation
Fitting and Connecting the 1 Wire Hub Fitting at Location with MTC
74 Option Verify Reject Bin Option Abfrage Abwurfbehälter
3.3.2 Fitting at Location with MTC
1-Wire-Hub on TwinHead nozzle changer at location with
MTC
1. Carrier for TwinHead nozzle changer
2. Mounting bracket
3. 1 wire hub module CAT5 [03041473-xx]
► Unscrew the mounting bracket from the nozzle
changer carrier for the TwinHead.
► Screw the 1-Wire-Hub to the mounting bracket with
two M2.5x6 screws.
► Fix the mounting bracket (including 1-Wire-Hub))
onto the carrier of the TwinHead nozzle changer.
1-Wire-Hub on TwinHead nozzle changer at location with
MTC2
1. Carrier for TwinHead nozzle changer
2. Patch cable: 1-Wire distributor - 1-Wire-Hub-CAT5
3. 1 wire hub module CAT5 [03041473-xx]
► Connect the patch cable to the hub.
► Connect the sub D connector x2*q to the 1 wire hub
and screw tight.
► Run the patch cable along the camera (like the sen-
sor cable) and fix it into place there.
Installation
Circuit Diagram for Sensors with 1 Wire Hub Module Fitting and Connecting the 1 Wire Hub
Option Verify Reject Bin Option Abfrage Abwurfbehälter 75
3.3.3 Circuit Diagram for Sensors with 1 Wire Hub Module

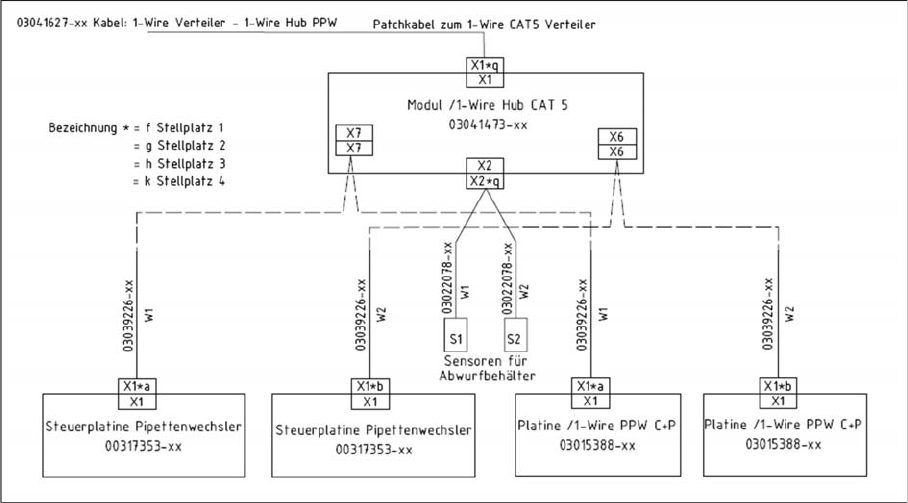

1-Wire-Hub: wiring
