Page SAMSUNG TECHWIN 15 SLM120/110 C onveyor Ass’y (2/5) No. LEVEL P ART No. P ART NAME Q'TY TYPE Old No. Stock Apply Reference 1 J70531091 A PLA TE_ LONG_OUT J70531091A 4 (170mm QTY :4EA ) (310mm QTY : 2EA) 2 J7053…
Page
SAMSUNG TECHWIN
14
SLM120/110

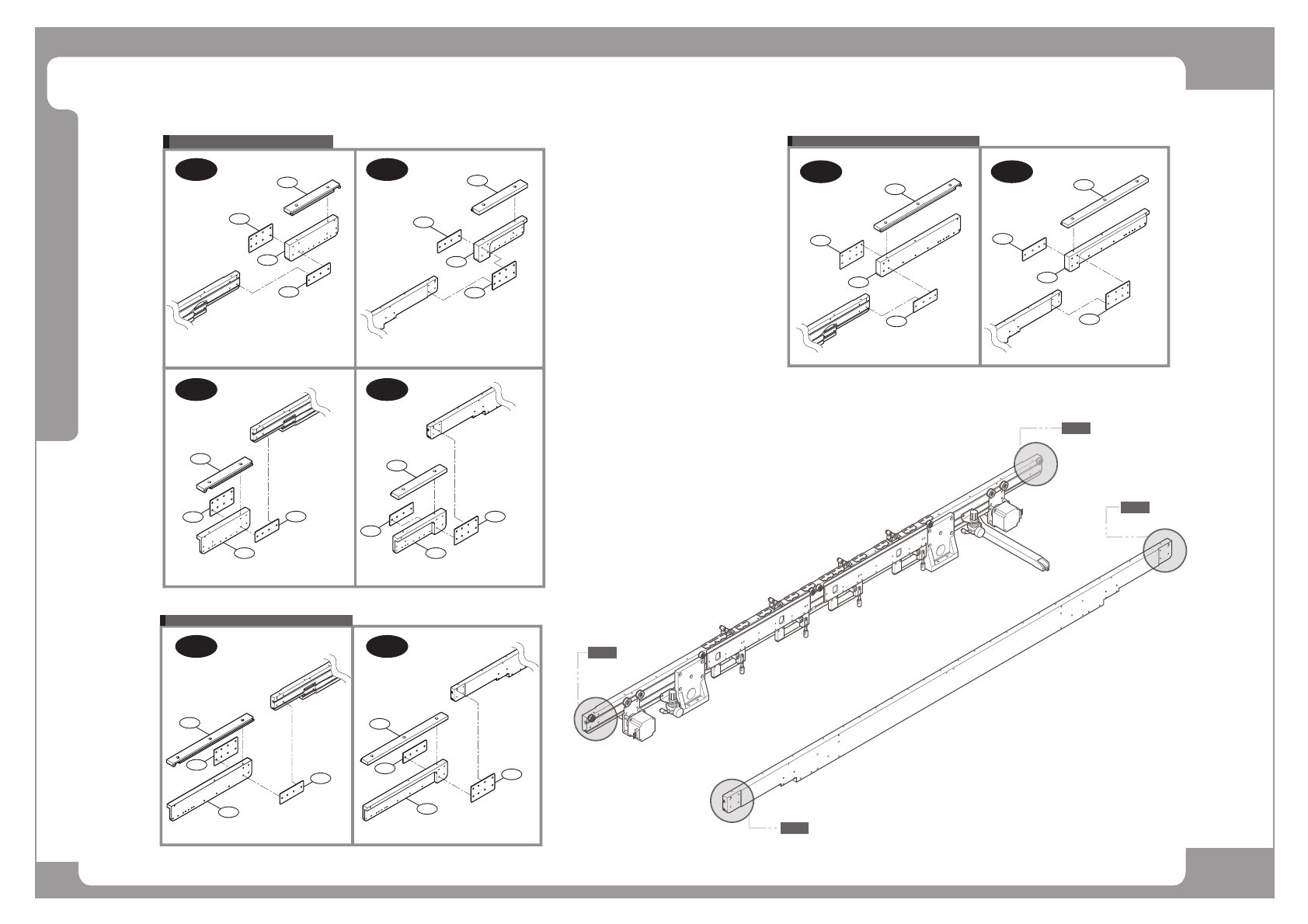

Conveyor Ass’y (2/5)
2
4
5
1
9
7
1
2
CONVEYOR 170mm OPTION
8
2
1
10
3
1
6
2
4
2
1
5
3
6
1
2
CONVEYOR 310mm OPTION (ONLY LR)
RL1
RL2
LR1
LR2
LR1 LR2
LR1 LR2
LR1 LR2
CONVEYOR 310mm OPTION (ONLY RL)
RL1 RL2
2
1
10
8
1
2
7
9
Page
SAMSUNG TECHWIN
15
SLM120/110
Conveyor Ass’y (2/5)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J70531091A
PLATE_LONG_OUT J70531091A
4 (170mm QTY:4EA) (310mm QTY:2EA)
2 J70531090A
PLATE_LONG_IN J70531090A
4 (170mm QTY:4EA) (310mm QTY:2EA)
3 J71531051B
EXTENSION_GUIDE_1
2
4 J71531052B
EXTENSION_GUIDE_2
2
5 FC30-000322A
PLATE-EXTEND_RAIL_1
2
6 FC30-000323A
PLATE-EXTEND_RAIL_2
2
7 FC30-000376A
PLATE-EXTENSION_GUIDE_2_310MM
1
8 FC30-000375A
PLATE-EXTENSION_GUIDE_1_310MM
1
9 FC30-000373A
PLATE-EXTEND_RAIL_1_310MM
1
10 FC30-000374A
PLATE-EXTEND_RAIL_2_310MM
1
Page
SAMSUNG TECHWIN
16
SLM120/110
Conveyor Ass’y (3/5)
30
21
31
12
7
2
20
3
C
14
10
34
17
14
C
10
26
7
35
12
22
16
18
32
29
32
A
C
A
11
1
19
7
5
A
33
8
6
C
C
36
7
13
12
15
27
12
23
7
16
4
A
7
7
24
28
28
25
25
22
33
11
7
6
9
13
7
22
B
B
B
B
C
