ACT - Accuracy Check Tool / User Manual 07/2014 Edition
8
2 Prerequisites and Overview of Parts
2.1 Software Requirements
Machine types SIPLACE
D- and X-series
SIPLACE
X- and SX1/SX2
SIPLACE
SX4- and DX-
series
SIPLACE
CA
SIPLACE Pro Version as of 5.2 Version as of 7.0 Version as of 9.2 Version as of 8.0
SC software Version 605.xx As of Version
703.02*
Version 705.03 Version 605.03
Table 2-1: Software requirements
*)
Recommendation: station software 704 with SIPLACE Pro as of 8.0
2.2 Contents of ACT Option Kit (Item No. 03068036-01)
Item description Item number Quantity
ACT glass plate with protective lid and
calibration certificate
03056448-01 1 x
Glass components CC02-05, 60 X in
ACT waffle pack tray
03072236-01 1 tray magazine with 60 CC02-
05 components
X-table holder 03069882-01 1 x
S-table holder 03059289-01 1 x
Ceramic components (Cerampads) on
tapes
003539505-02 4 reels with 5,000 components
each (= 20,000)
ACT intervention guard, complete 03073250-01 1 x
Adhesive foil, cut to size 03071883-01 20 x
CD with user manual, placement
programs, installation file
00196351-03 1 x
Vacuum nozzle 00334547-01 1 x
Case 03072228-01 1 x
Table 2-2: Contents of option kit
NOTICE
The measuring plate and the special components have been specially designed for the
ACT.
The measuring plate has global fiducials for PCB position recognition, fiducials for
component position measurement and a grid array, dot matrix (see Figure 1-2
), defined
as inkspot in SIPLACE Pro.
3 of 4 fiducials are integrated for component position measurement in each glass
component.
The special components used depend on the head or camera type fitted (see Table 4-1).
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
9
2.2.1 Options / Spare Parts
Item description Item number Quantity
Glass components CC07-500, 55 X in
ACT waffle pack tray
*)
00343704-02
*)
1 tray magazine with 55 CC07-
500 components
*)
Glass component CC02-007 (single) 00338002-01 Glass component (single)
Glass component CC07-500 (single) 00338000-02 Optional glass component
(single)
Cerampads 2x2 mm in blister tape (for
use in dust-free rooms)
03116117-01 Reel with 2 500 components
Base ACT magazine, complete 03069924-01 Empty magazine (tray) without
cover
Cover for ACT magazine, complete 03069888-01 Cover for ACT magazine (tray)
Cover for glass plate, complete 03056782-01 Cover for glass plate
(Calibration Board)
Light plate 03056307-01 Plate on the underside of the
glass plate
Knurled screw DIN 464 M4 x 16 03031104-01 For closing the glass plate
Knurled screw DIN 464 M4 x 12 03031103-01 For closing the magazine (tray)
Table 2-3: Options / Spare parts
NOTICE
*)
Optional glass components CC07-500
The CC07-500 optional components [00343704-02] are delivered in a tray that cannot
be placed at the ACT tray holder. Thus, the components have to be transferred to an
ACT tray.
For this purpose an additional empty ACT tray may be ordered with the following item
numbers: [03069924-01] + [03069888-01] + [03031103-01].
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
10
2.2.2 Individual Components in the ACT Set
Measuring plate (glass plate) in metal frame (Figure 2-1 and Figure 2-2):
The glass components and the measuring plate are kept in a storage case.

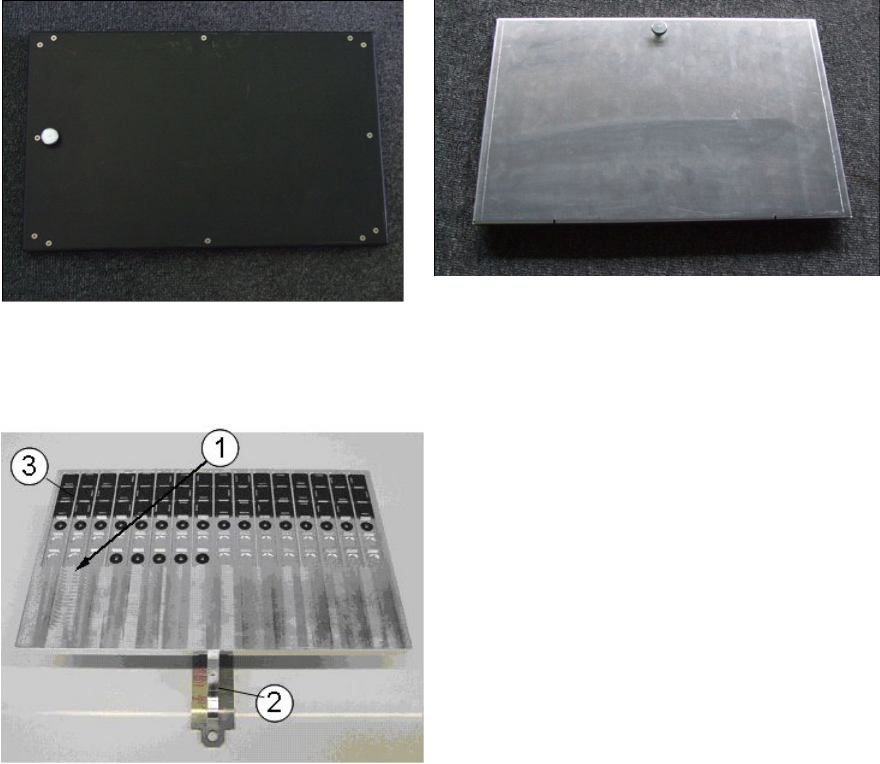

Figure 2-1: Storage case for measuring plate Figure 2-2: Storage case for glass components
The glass components used for ACT are placed in the milled divisions in the waffle pack tray
(Figure 2-3).
Figure 2-3: Waffle pack tray for glass components
Key:
(1) Waffle pack tray
(2) Waffle pack tray carrier
(3) Glass components
