Machine frame Page 19 / 24 24.11.2021

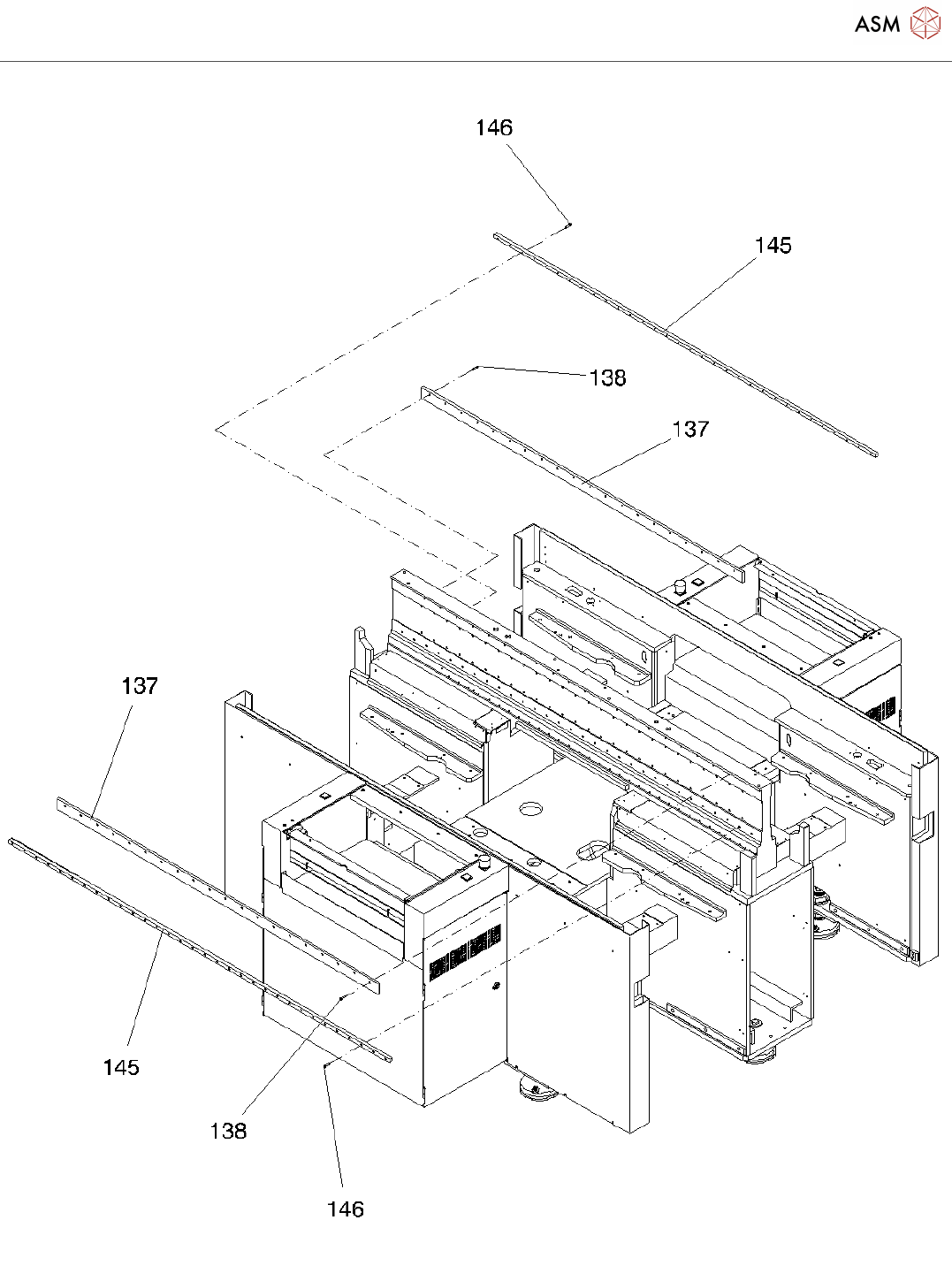

Machine frame
Page 18 / 24 24.11.2021
Machine frame
Page 19 / 24 24.11.2021
Machine frame
Page 20 / 24 24.11.2021
Pos. Item no. Description Part marking
00363709-01 HS60 BASE WITH SAFETY COVER
1 00363708-01 BASE COMPLETE PREASSEMBLED
2 00363707-01 BASE UNMASCHINED PART -
ASSEMBLY
3 00363714-01 WELDED PART BASE HS60
4 00363712-01 SPACER
5 00329965-02 SIDE PART TRAVERSE
6 00327962-01 SPACER M6*45 I/I 6KT10
7 00303399-01 SLOTTED COUNTERSUNK HEAD
SCREW
9 00334922-02 MACHINE BASE S50 SPARE PART
10 00334923-02 MACHINE BASE S50 TOP PART
11 00334924-02 MACHINE BASE S50 BOTTOM PART
12 00352399-01 DIN 936-M42X1.5-A2-HA2K
13 00349441-01 WASHER
14 00845077-01 HEXAGON SOCKET HEAD CAP
SCREW
15 00337572-01 HEXAGON SOCKET HEAD CAP
SCREW
16 00359092-01 DISTANCE SLEEVE 8,4*12*14 F.M8
ST
18 00330908-01 LEDGER FOR ELECTRO UNIT
19 00332883-02 CABLE SHEET S50
20 00332884-03 PARTITION PANEL
PNEUMATICS/ELECTIC
21 00312474-01 HEXAGON SOCKET HEAD CAP
SCREW
22 00845077-01 HEXAGON SOCKET HEAD CAP
SCREW
00335622-01 SGL.PARTS/U-PROFILES, SHEET
METAL PLATES
25 00330670-03 SIDE PANEL RIGHT HAND
26 00330671-03 SIDE PANEL LEFT HAND
27 00330681-04 COVER PLATE LEFT HAND
28 00347403-02 COVER PLATE B RIGHT SIDE
29 00330684-04 COVER PLATE RIGHT HAND
30 00347402-02 COVER PLATE A LEFT SIDE
31 00330649-01 CABLE GUIDE PLATE OUTPUT SIDE
