Wiring par ts list KKH-1503 P AGE 9 Condential & Proprietary No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks 1 KK1-M6563-200 FERRITE CORE 2 E001,E002 39 KKH-M66F1-001 HNS,DIS CN15 1 J…

100%1 / 14
PAGE
8
Condential & Proprietary
YSi-12

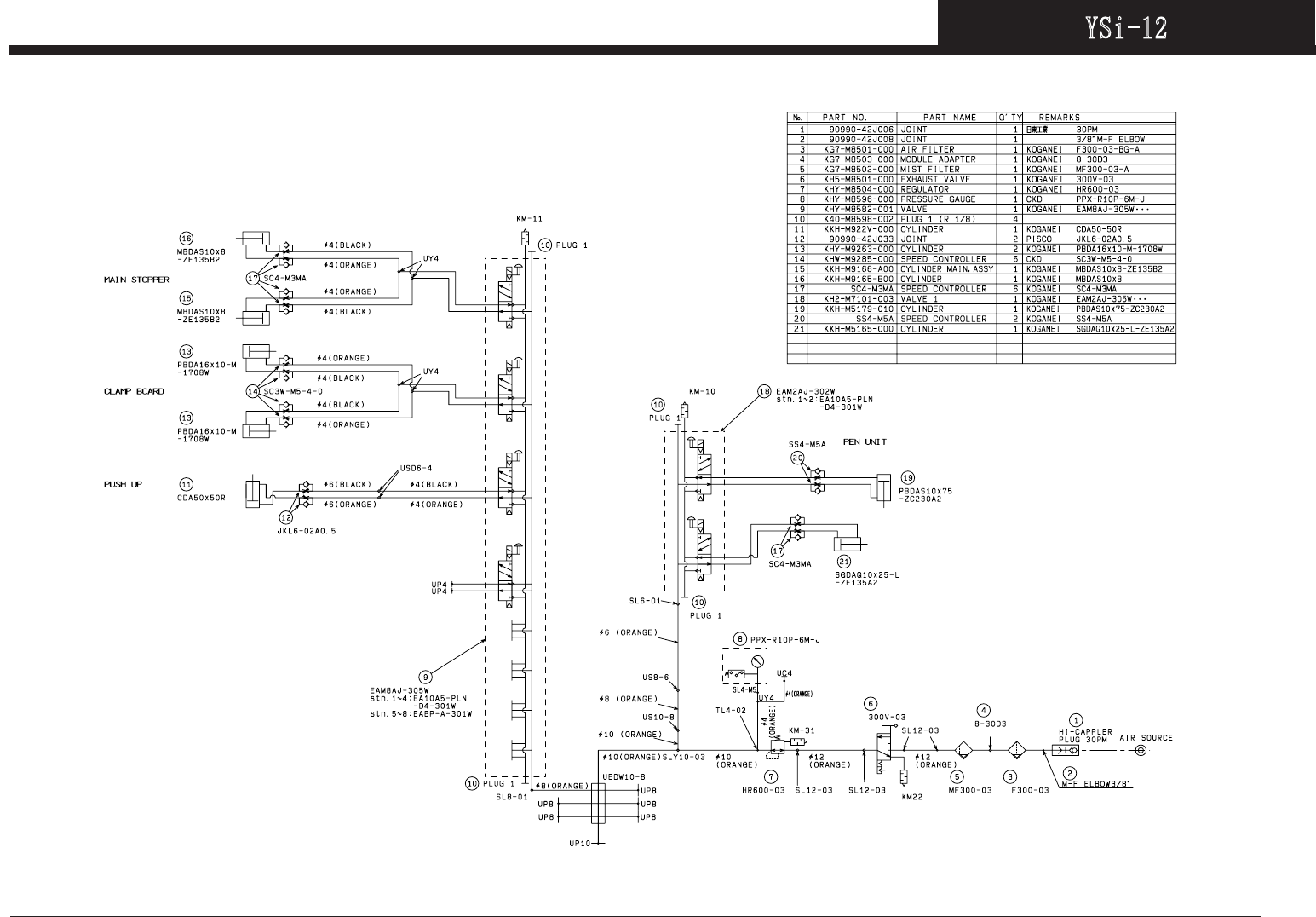

Air circuit
H013291
Wiring parts list
KKH-1503
PAGE
9
Condential & Proprietary
No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks
1 KK1-M6563-200 FERRITE CORE 2 E001,E002 39 KKH-M66F1-001 HNS,DIS CN15 1 J161
2 KK1-M6563-200 FERRITE CORE 4 E22,E23,E24,E25 40 KKH-M667J-000 HNS,EMG SW 1 J166
3 KGA-M4187-000 FAN GUARD 119MM 8 FAN1 FAN2 FAN3 FAN4 41 KKH-M661V-001 HNS,DC5V.24V 1 J17
4 KHY-M6185-001 FAN MOTOR ASSY 2 FAN1 FAN4 42 KKH-M663B-000 HNS,QF11-KM11 1 J18
5 KHN-M6175-000 FAN M.:9G1224H4D01PJ 1 FAN19-FAN28 43 KKH-M66GG-000 HNS,DIS CN18 1 J181
6 KHN-M6185-101 FAN MOTOR ASSY 2 FAN2 FAN3 44 KKH-M66GH-001 HNS,DIS CN20 1 J182
7 KKH-M6565-000 UPS 1 GB1 45 KKH-M66GF-001 HNS,DIS CN25 1 J183
8 LG0-M42HC-000 POWER SUPPLY,4 1 GS21 46 KKH-M66G9-011 HNS,DIS CN14 1 J185
9 KKH-M661A-001 HNS,MAIN SWITCH 1 J001 47 KKH-M66G1-000 HNS,DIS CN1,CN4 1 J186
10 KKH-M661E-000 HNS,QF11-NF11 1 J002 48 KKH-M66G3-001 HNS,DIS CN2 1 J187
11 KKH-M661G-000 HNS,POWER NF11-TM11 1 J003 49 KKH-M66G2-000 HNS.DIS CN3 1 J188
12 KHY-M536A-001 HNS,PE 1 J071 50 KKH-M66G6-001 HNS,Y-FLEX OT 1 J189
13 90K30-944010 HNS,EARTH 1
J072 51 KKH-M663D-000 HNS,CONV PWR 1 J19
14 KKH-M661M-000 HNS,X-AMP CNA 1 J10 52 KKH-M66GP-020 HNS,X-FLEX R ORG 1 J190
15 KKH-M661N-000 HNS,Y-AMP CNA 1 J11 53 KKH-M66G4-001 HNS,DIS CN13,CN26 1 J191
16 KKH-M661P-000 HNS,W-AMP CNA 1 J12 54 KKH-M66G7-000 HNS,Y-FLEX MAKER 1 J192
17 KKH-M6680-A00 HNS,EX-USB ASSY 1 J120 55 KKH-M66G8-001 HNS,X-FLEX MARKER 1 J193
18 KKH-M668A-001 HNS,MCB CN3 1 J124 56 LE3-M668G-500 HNS.MCB CN1 1 J194
19 KKH-M668E-001 HNS,MCB CN4 1 J125 57 LE3-M668H-501 HNS.MCB CN2 1 J195
20 KKH-M668L-001 HNS,DIS CN9 1 J127 58 KKH-M66GN-000 HNS,W BRAKE 1 J196
21 KKH-M66A1-010 HNS,X-AMP CN2 1 J128 59 KKH-M663F-011 HNS,FAN 1 J197
22 KKH-M66A2-010 HNS,Y-AMP CN2 1 J129 60 LE3-M66V1-010 CN1 ASSY. 1 J198
23 KKH-M661R-000 HNS,R-AMP CNA 1 J13 61 LC0-M11K6-001 CN2 ASSY. 1 J199
24 KKH-M66A3-010 HNS,W-AMP CN2 1 J130 62 KKH-M663C-001 HNS,DC POWER 1 J20
25 KKH-M66A4-010 HNS,R-AMP CN2 1 J131 63 KKH-M66GJ-000 HNS,DIS CN19 1 J201
26 KKH-M66A5-000 HNS,Y-FLEX XP 1 J132 64 KKH-M66M9-010 HNS,UPS REMOTE
1 J202
27 KKH-M66A6-000 HNS,Y-FLEX RP 1 J133 65 KKH-M66GT-000 HNS,DIS CN21 1 J203
28 KKH-M66A7-000 HNS,X-FLEX RP 1 J134 66 KKH-M66GV-000 HNS,LASER TM 1 J204
29 KKH-M661K-000 HNS,LCD POWER 1 J14 67 LE3-M66F5-601 HNS,SWITCH READY 1 J204
30 KKH-M66E1-000 HNS,X-AMP CNC 1 J141 68 KKH-M663A-000 HNS,DIS CN30 1 J21
31 KKH-M66E2-000 HNS,Y-AMP CNC 1 J142 69 KKH-M66H1-000 HNS,SIG.TOWER 1 J221
32 KKH-M66E3-000 HNS,W-AMP CNC 1 J143 70 KKH-M66F3-001 HNS,READY-2 1 J222
33 KKH-M66E4-000 HNS,R-AMP CNC 1 J144 71 KKH-M66GM-000 HNS,W-PIN SENSOR 1 J223
34 KKH-M66E5-000 HNS,Y-FLEX XM 1 J145 72 KU8-M66F5-304 HNS,VGA 3M 1 J230
35 KKH-M66E6-000 HNS,Y-FLEX RM 1 J146 73 KGK-M66F5-000 HNS,DVI-VGA 1 J231
36 KKH-M66E7-000 HNS,X-FLEX RM 1 J147 74 KHN-M4275-A01 HNS,KEY/MOUSE ASSY 1 J232
37 KKH-M661L-000 HNS,ATX POWER 1 J15 75 KGA-M664T-313 HNS,KEY/MOUSE ASSY 2 J233
38 KKH-M661T-000 HNS.XT22-GS21 1 J16 76 KKH-M66B1-000 HNS,U52 1 J24
Wiring parts list
KKH-1503
PAGE
10
Condential & Proprietary
No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks
77 LE2-M669G-001 CABLE,LAM 3M 1 J246 115 KV5-M6442-000 RELAY SOCKET 1 KA12
78 KKH-M66GR-000 HNS,PEN VALVE 1 J247 116 LC8-M6555-100 SAFETY RELAY 1 KM10
79 KKH-M66B2-000 HNS,V52 1 J25 117 KKH-M537G-000 CONTACTOR,1 1 KM11
80 KKH-M663G-000 HNS,FAN POWER 1 J251 118 KKH-M5106-002 OPERATION PANEL 1 LCD1
81 KKH-M663H-000 HNS,FAN ALARM 5 J252,J253,J254,J255,J256 119 KHM-M654D-020 AMP,SENSOR 1 1 MAIN
82 KKH-M66B3-000 HNS,U51 1 J26 120 KU0-M654A-001 SENSOR,1 1 MK CL
83 KKH-M66F2-010 HNS,DIS CN16 1 J264 121 KHY-M656V-000 SENSOR(ZC230A) 1 MK LO
84 KKH-M66B4-000 HNS,V51 1 J27 122 KU0-M654A-001 SENSOR,1 1 MK OP
85 KKH-M66B5-000 HNS,U61 1 J28 123 KHY-M656V-000 SENSOR(ZC230A) 1 MK UP
86 KKH-M66B6-000 HNS,V50 1 J29 124 KHU-M532A-000 NOISE FILTER 1 NF11
87 KKH-M66M6-000 HNS,XT21-TC11 1 J30 125 KKH-M6510-000 BREAKER ASSY 1 QF11
88 KKH-M66M2-000 HNS,TC11-QF51 1 J32 126 KH1-M539M-410 PROTECTOR ACCES.1P 4 QF21,QF12,QF11,QF41
89 KKH-M66M5-001 HNS,UPS IN 1
J33 127 KM6-M6513-510 CIRCUIT PROTECTOR,1P 2 QF21,QF41
90 KKH-M66M7-011 HNS,UPS OUT 1 J35 128 KGA-M6513-110 CIRCUIT PROTECTOR,2P 1 QF31
91 LE3-M66N1-720 HNS.LASER PWR 1 J38 129 KH1-M539M-310 PROTECTOR ACCES.2P 1 QF31
92 KKH-M661H-000 HNS,POWER TM11-QF31 1 J4 130 KM6-M6513-210 CIRCUIT PROTECTOR,1P 1 QF42
93 KKH-M663E-000 HNS,DIS CN32 1 J48 131 KH1-M6515-010 CIRCUIT PROTECTOR,2P 1 QF52
94 KKH-M661J-000 HNS.POWER QF31-KM11 1 J5 132 KH1-M539M-310 PROTECTOR ACCES.2P 1 QF52
95 KKH-M66K0-000 HNS,Y-FLEX CAM. 1 J502 133 KGE-M6513-010 CIRCUIT PROTECTOR,1P 1 QF61
96 KKH-M66K1-001 HNS,X-FLEX CAM. 1 J503 134 KGS-M6573-111 SPARK KILLER ASSY 1 S10
97 KKH-M66J1-000 HNS,LASER X-Y 1 J510 135 LC1-M13H2-000 SWITCH,EMG ASSY 1 SB11
98 KKH-M661B-000 HNS,KM11-XT21 1 J6 136 KGK-M5381-000 EMG PLATE 1 SB11
99 KKH-M668F-001 HNS,MCB CN5 1 J62 137 KGW-M5126-L10 SAFETY SW LOCK ASSY 1 SQ101
100 KHW-M665E-000 HNS,CONV. MOTOR 1 J64 138 KW7-M5127-000 SAFETY SWITCH KEY 1 SQ101
101 KKH-M661C-000 HNS,QF31-XT21 1 J7 139 KHY-M656R-000 SENSOR(ZE135B) 1 ST DN
102 90K30-945050 HNS,FG-NF11 3 J73,74,75 140 KHY-M656R-000 SENSOR(ZE135B)
1 ST UP
103 90K30-945050 HNS,FG-NF11 3 J76,J77,J78 141 LC2-M5318-001 POWER TRANSFORMER 1 TC11
104 90K30-245060 HNS,EARTH 6 J81,J82,J83,J84,J85,J86 142 KHW-M7153-000 PNP CHANGER ASSY 5 U01,U02,U03,U04,U05
105 90K30-544200 HNS,EARTH 1 J87 143 KU8-M65F5-001 VGA ADAPTER 1 U10
106 90K30-544150 HNS,EARTH 1 J88 144 KW3-M654J-000 CHANGE,PN 1 UXX
107 90K30-444100 HNS,EARTH 1 J89 145 KHY-M643A-001 TERMINAL,POWER 3 XB11
108 KKH-M661D-000 HNS,QF21-XT22 1 J9 146 KHY-M643E-001 END PLATE 2 XB11
109 90K30-244018 HNS,COVER FG 3 J91,J92,J93 147 K46-M641F-000 PARTS, 1-3 2 XB11,QF11
110 90K30-244018 HNS,COVER FG 1 J94 148 KG2-M643A-000 PARTS 3-1 12 XT21,XT22
111 90K30-244035 HNS,FG-CNT.BOX 1 J99 149 K44-M643E-001 PARTS 3-2(END PLATE) 8 XT21,XT22,XT31,XT41
112 KV5-M6522-100 RELAY,G2R-1-SND 2 KA10,KA11 150 K44-M643A-001 PARTS,3-1(M3 TERMINA 5 XT31,XT41
113 KV5-M6442-000 RELAY SOCKET 2 KA10,KA11 151 LE1-M50H8-10 CONTROL UNUIT 1 A22
114 KKE-M6522-000 RELAY,G3RZ DC24 1 KA12 152
