I･pulse F2 Series F2-44 (D type) P 2 No. Code No. Parts Name Q'ty Parts No. LG4-M6A27-001 RACKING M.LEVER ASSY 1 AS1-A24-8105 LG4-M7A20-001 SPROCKET ASSY 1 AS1-A32-8107 LG4-M6A2A-001 RACKING SUB LEV. ASSY 1 AS1-A24-…

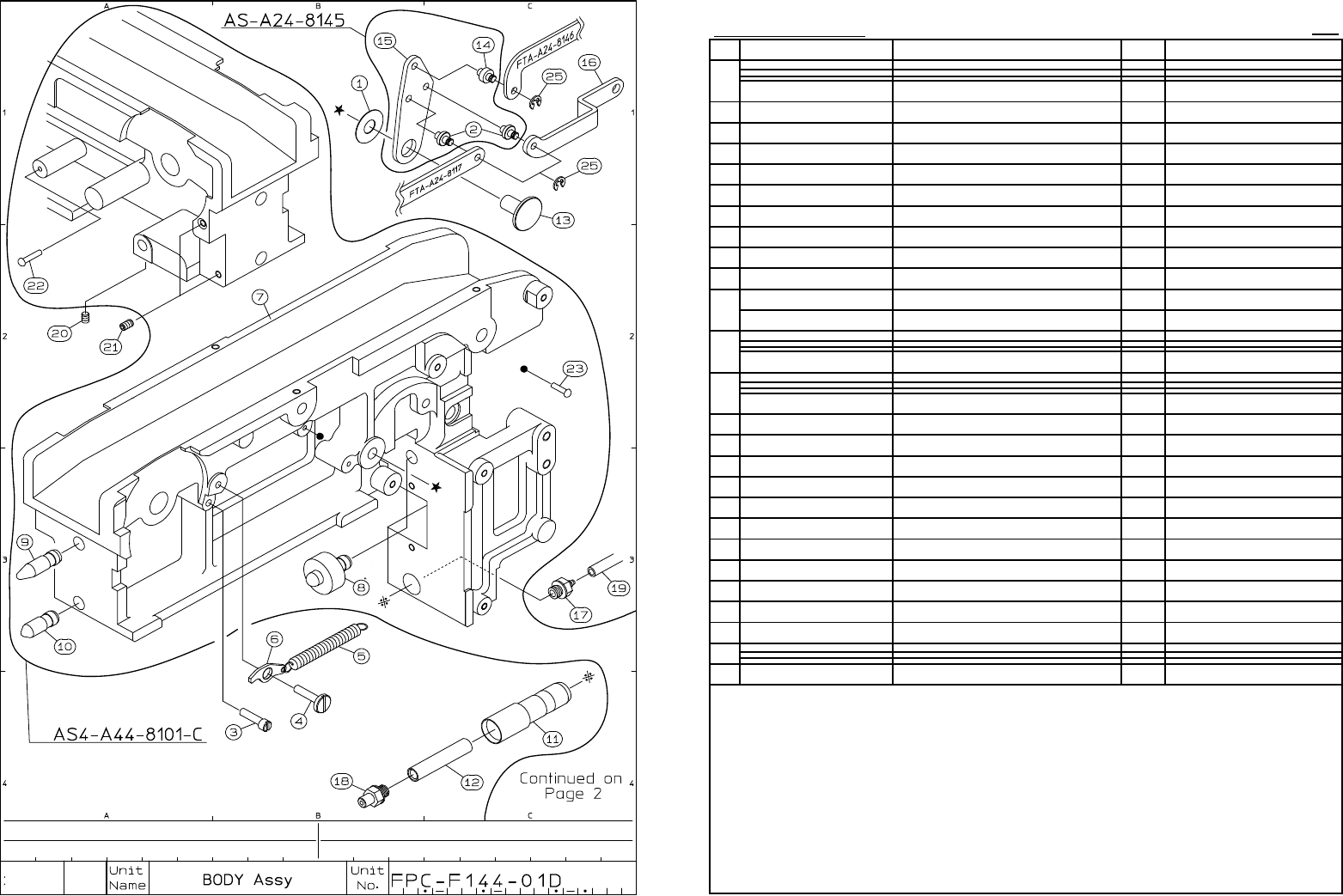

I･pulse F2 Series
F2-44 (D type)
P 1
No. Code No. Parts Name Q'ty Parts No.
LG4-M8A10-020 BODY ASSY
1
AS3-A44-8101-C
LG4-M8A10-030 BODY ASSY
1
AS4-A44-8101-C
LG4-M6A1M-000 MAIN LEVER ASSY
1
AS-A24-8145
1
LG4-M1A1L-000 THRUST WASHER
1
CTF- 53- 38-02
2 KW1-M4578-000 STUD 2 CTF- 54- 44
3
KW1-M221F-100 STOPPER PIN
1
CTF-M12- 313
4
K87-M211B-000 BACK STOPPER AXIS
1
CTF-M12- 315
5 LG4-M6A19-001 BACK STOPPER SPRING
1 FTA-A24-8114-98
6 KW1-M451H-000 BACK STOPPER 1 FTA-A24-1114
7
LG4-M8A11-002
BODY 1
FTA-A44-8101-C
8
LG4-M6A12-020
MAIN GUIDE PIN 1
FTA-A24-8102-C
9
LG4-M1A13-510
LOCATE PIN R 1 FTA-E08-8503-B
10
LG4-M1A14-510
LOCATE PIN F 1 FTA-E08-8504-B
LG4-M4A15-000 PLUG HOLDER GUIDE
1
FTA-A12-8105
LG4-M1A15-010
PLUG HOLDER GUIDE 1 FTA-A08-8105-B
LG4-M1A16-000 PLUG HOLDER
1
FTA-A08-8106
LG4 M1A16 010
PLUG HOLDER
1
FTA A08 8106 B
※
112
※1
※1 11
LG4-M1A16-010
PLUG HOLDER 1 FTA-A08-8106-B
13
LG4-M1A1K-000 LEVER AXIS PIN
1
FTA-A08-8130-B
14
LG4-M6A1R-000
STUD 1 FTA-A24-8144
15
LG4-M6A1N-000 MAIN LEVER
1
FTA-A24-8145
16
LG4-M6A1P-000
ARM 1 FTA-A24-8147
17 K87-M56C1-000
BARB CONNECTOR
1
BF4BU
18
LG4-M1AB2-000 PLUG
1
MA-MC05PM
19
LG4-M6ABA-000 AIR HOSE
1
U4B-180
20 K87-M111Y-000 SCREW,SET 1 3MY-4-F
21 K87-M23B3-000 SCREW,SET 2
3MY-5
22 LG4-M1AD1-000
CIRCULAR RIVET
1
2-8
23
K87-M1115-000 CIRCULAR RIVET
1
2-10
※1 24
LG4-M1AD2-000 CIRCLIP C
1
STW-7
25 K87-M11B9-000
CIRCLIP E
3 E.24
※1…F2-44-000264D～
※1
12
I･pulse F2 Series
F2-44 (D type)
P 2
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A27-001
RACKING M.LEVER ASSY 1 AS1-A24-8105
LG4-M7A20-001
SPROCKET ASSY 1 AS1-A32-8107
LG4-M6A2A-001
RACKING SUB LEV. ASSY 1 AS1-A24-8116
1 K87-M111G-100 PUSH PIN 3
CTF-M08- 325
2 LG4-M6A2F-000
THRUST WASHER
1
CTF-A32- 08
3
LG4-M7A2E-000
LEVER METAL 1 FTA-A32-8108
4 K87-M112G-100 RACKING POLE 1
FTA-A08-1111
5 KW1-M4523-000 SPROCKET 1
FTA-A24-1104
6 KW1-M452W-001 STUD 1 FTA-A24-1118-B
7 LG4-M7A21-000 METAL 1
FTA-A32-8103-B
8 LG4-M6A22-000 RACKING MAIN LEVER 1
FTA-A24-8105
9 LG4-M6A25-000
RACKING POLE AXIS
1
FTA-A24-8110
10 LG4-M6A2G-000 SCREW COIL SPRING 1
FTA-A24-8111-1
11 LG4-M6A26-000 SPRING HOOK PIN 1 FTA-A24-8111-2
12
LG4-M8A2N-000 RATCHET AXIS
1
FTA-A44-8112
13
LG4-M6A2B-000
RACKING SUB LEVER 1 FTA-A24-8116
14
LG4 M6A2C 000
S
HUTTER DRIVE PIN
1
FTA A24 8116 1
14
LG4-M6A2C-000 SHUTTER DRIVE PIN
1
FTA-A24-8116-1
15
LG4-M6A2D-000 MAIN ARM
1
FTA-A24-8117
16 LG4-M7A23-000 SPROCKET 1 FTA-A32-8104
17 LG4-M7A24-000 RATCHET 1
FTA-A32-8107
18 KW1-M552F-001 BEARING 2 K5B0808
19 K87-M111P-000 SCREW,FLAT HEAD+ 9 P2MK-3
20 K87-M111Y-000 SCREW,SET 2 3MY-4-F
21 K87-M23B3-000 SCREW,SET 1 3MY-5
22 K87-M111R-000 SCREW,SET 5 3MY-5-F
23 K87-M55BL-000 U NUT 1 4MH-U-P
24 K87-M11B9-000
CIRCLIP E
1 E.24
25
26
27
28
I･pulse F2 Series
F2-44 (D type)
P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A30-010
HOLD LEVER ASSY 1 AS-A24-8190-C
LG4-M8A3A-003
CLAMP LEVER ASSY 1 AS9-A24-8191-B
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1K-000
LEVER AXIS PIN 1
FTA-A08-8130-B
3
LG4-M1A3A-001 HINGE PIN 1
1
FTA-A08-8191-1C
4
LG4-M1A3B-000 HINGE PIN 2
1
FTA-A08-8192-1
5
LG4-M1A36-000 ARM
1
FTA-A08-8193
6
LG4-M1A33-000 LINK PLATE
1
FTA-A08-8194
7
LG4-M1A3L-000 CLANK ARM AXIS PIN
1
FTA-A08-8195
8
LG4-M1A37-000 ADJUST CLAMP PIN
1
FTA-A08-8196
9
LG4-M1A3K-001 CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
10 LG4-M6A31-010 HOLD LEVER
1 FTA-A24-8190-C
11
LG4-M6A3B-001 CLAMP LEVER
1 FTA-A24-8191-B
12
LG4-M8A3D-000
STUD 1 FTA-A44-8191
13
LG4-M6A3M-000
SCREW COIL SPRING 1
FTA-A24-8191-SCSp
14 LG4-M6A3C-001 CLANK ARM
1 FTA-A24-8192-B
15
LG4 M6A32 000
LINK PIN T
1
FTA A24 8198
15
LG4-M6A32-000 LINK PIN T
1
FTA-A24-8198
16
LG4-M6A39-000 LINK PIN U
1
FTA-A24-8199
17 K87-M111T-000 SCREW,SET 1 3MY-3-F
18
K87-M111R-000 SCREW,SET 2 3MY-5-F
19 K87-M21BN-000
SCREW NUT
1
3MH-P
20 K87-M21BM-000 SPRING LOCK WASHER 1
3MU-P
21
22
23
24
25
26
27
28
29
30
