LABEL Printer Specification • Int egr at ed 600dpi Prin t er • V acuum sensing f or label from pick- up • Prints and applies a r ang e of labels siz e • V ery high placemen t accur acy +/ - 0.3mm • LCD gr a phics display…

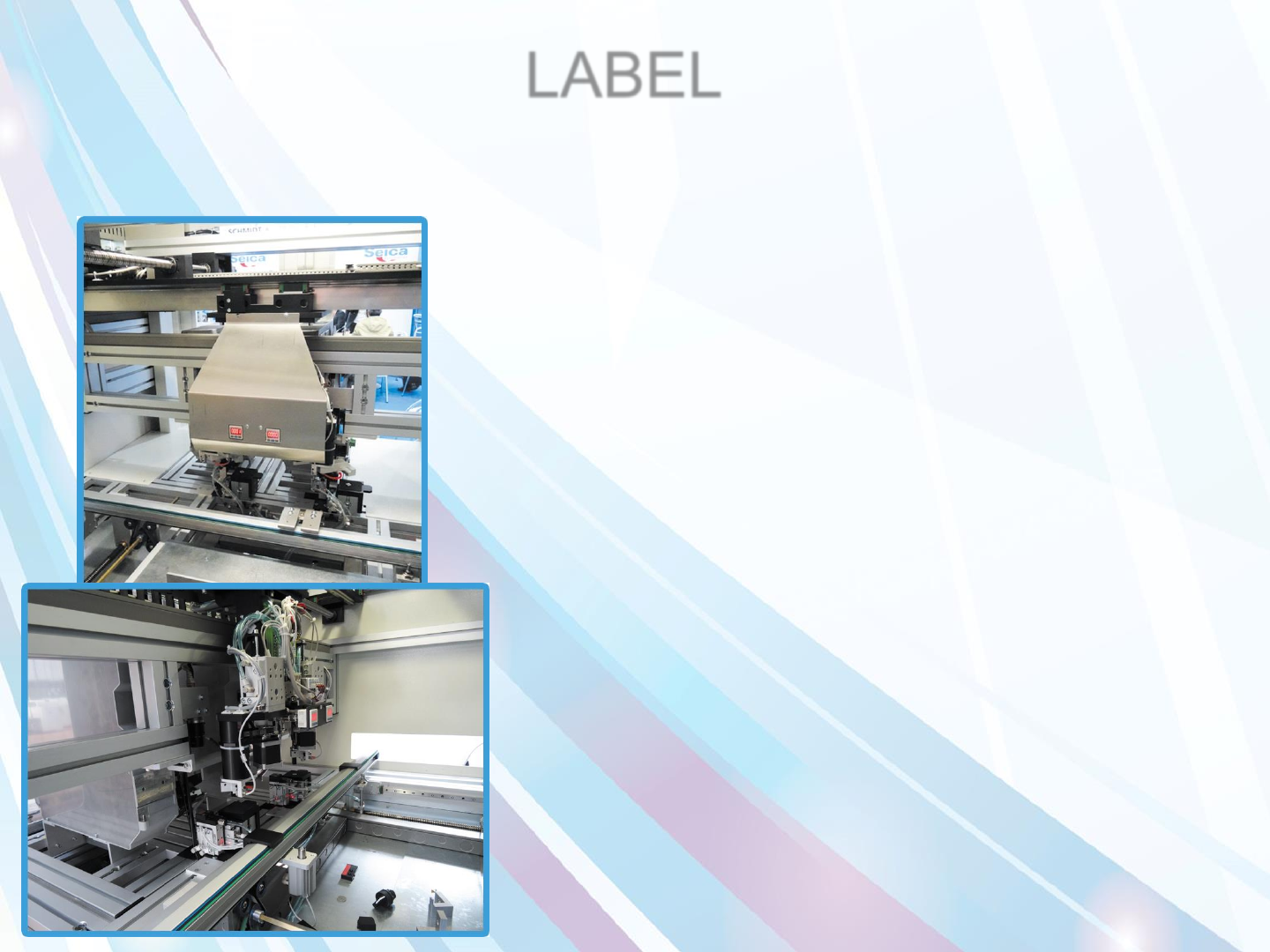

LABEL

Functional Description

Optional

• Barcode reader (Correct Printing)

• Camera inspection /correct printing,

placing offset, quality check ISO 6 position)

• Picking nozzle

• FIS (FACTORY INFORMATION SYSTEM)

• Link to Traceability SOFTWARE

www.seica-automation.com

ADDITIONAL FEATURES

• ESD Transparent Covers: available as option

• Tower signal

• Acoustic Alarm

• Internal lighting: system with on/off switch

LABEL

Printer Specification

• Integrated 600dpi Printer

• Vacuum sensing for label from pick-up

• Prints and applies a range of labels size

• Very high placement accuracy +/- 0.3mm

• LCD graphics display

• Printing method: direct thermal

www.seica-automation.com

LABEL

General PCB Specification

CYCLE Time /PLACING FEATURES

Repeatability X-Y: ±0.05mm

PCB Infeed: 5 sec

PCB Outfeed: 3,5 sec

Placing Time (1 Head): Approximately 3,5 sec

Time may change due to placing distance on PCB

Placing Time (2 Heads): Approximately 2,3 sec

XY axis: servo-controlled brushless motors

Z axes: Pneumatic

Rotation: electric servo-controlled motors: 0°-180° (step:

1°)

Labels & Ribbon Ink: not Included

Type of Ribbon: must be suitable for automatic applicator

(consult Factory)

Type of Labels: must be suitable for automatic applicator

(consult Factory)

Label text : to be defined

Dimension of Labels:

Min: 5x5 mm (WxL)

Max: 58x100 mm (WxL)
