MEMO
MODEL GXH-1
1012-004
183
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BF-3
255 6301343723 CORD(X211B-X221A) 1 803BC-210-260 4W203072
256 6301343730 CORD(X221B-X231A) 1 803BC-210-261 4W203073
261
6301343747 CORD(X231B-X211A) 1 803BD-210-151 4W203074
262
6301343723 CORD(X211B-X221A) 1 803BD-210-152 4W203072
263
6301343730 CORD(X221B-X231A) 1 803BD-210-153 4W203073
268
6301235417 CONNECTOR 1 803B--210-163 4J100865
271
6301269306 CORD 2 803BF-210-251 4W202811
272 6301269313 CORD 2 803BF-210-252 4W202812
273
6301269320 CORD 2 803BF-210-253 4W202813
280
6301269672 CORD 1 803B--210-260 4W202846
281
6301269689 CORD 1 803B--210-261 4W202847
283
6301269702 CORD 1 803B--210-263 4W202849
284
6301269719 CORD 1 803B--210-264 4W202850
285
6301269726 CORD 1 803B--210-265 4W202851
286
6301343662 CORD(X2102(X)-X12102) 2 803BF-210-176 4W203066
287
6301343679 CORD(X2202(Y1)-X2402) 2 803BF-210-177 4W203067
288
6301343686 CORD(X2401-X12201) 2 803BF-210-178 4W203068
289
6301343693 CORD(X2302(Y2)-X2403) 2 803BF-210-179 4W203069
290
6301343709 CORD(X2404-X12301) 2 803BF-210-180 4W203070
291
6301343891 CORD((X2203-X2406)) 2 803BF-210-181 4W203089
292
6301343907 CORD(X2303-X2407) 2 803BF-210-182 4W203090
296
6301338880 CORD(X19401-X2405) 2 4W203018
297
6301338279 CORD 2 4W202993
MEMO
MODEL GXH-1
0503-003
185
Fig. BG
架台下
XY
サーボ電源部

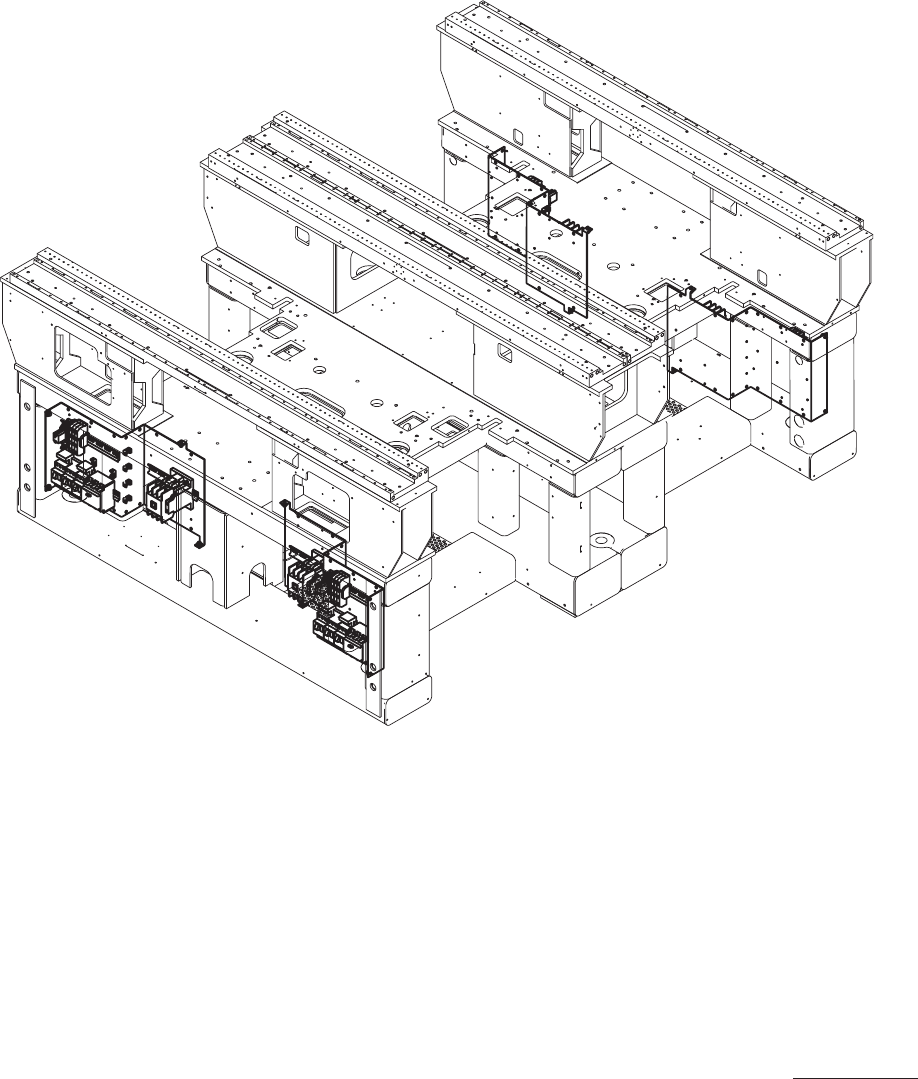

UNDERFRAME XY SERVO
POWER SUPPLY SECTION
