80S15贴片机电路图.pdf - 第120页
3 - 3 1710460- J3300- 000-01- L-01-4P CB barcod e Sip lace 80S/F (bottom ) (Sh. 1 of 2) 1710460- J3400- 000-01- L-01-4P CB barcod e Sip lace 80S/F (top) (S h. 1 of 2 )
3 - 2
1710470-Y0096-000-01-N-01-4Control board, nozzle changer
3 - 3
1710460-J3300-000-01-L-01-4PCB barcode Siplace 80S/F (bottom) (Sh. 1 of 2)
1710460-J3400-000-01-L-01-4PCB barcode Siplace 80S/F (top) (Sh. 1 of 2)
3 - 4

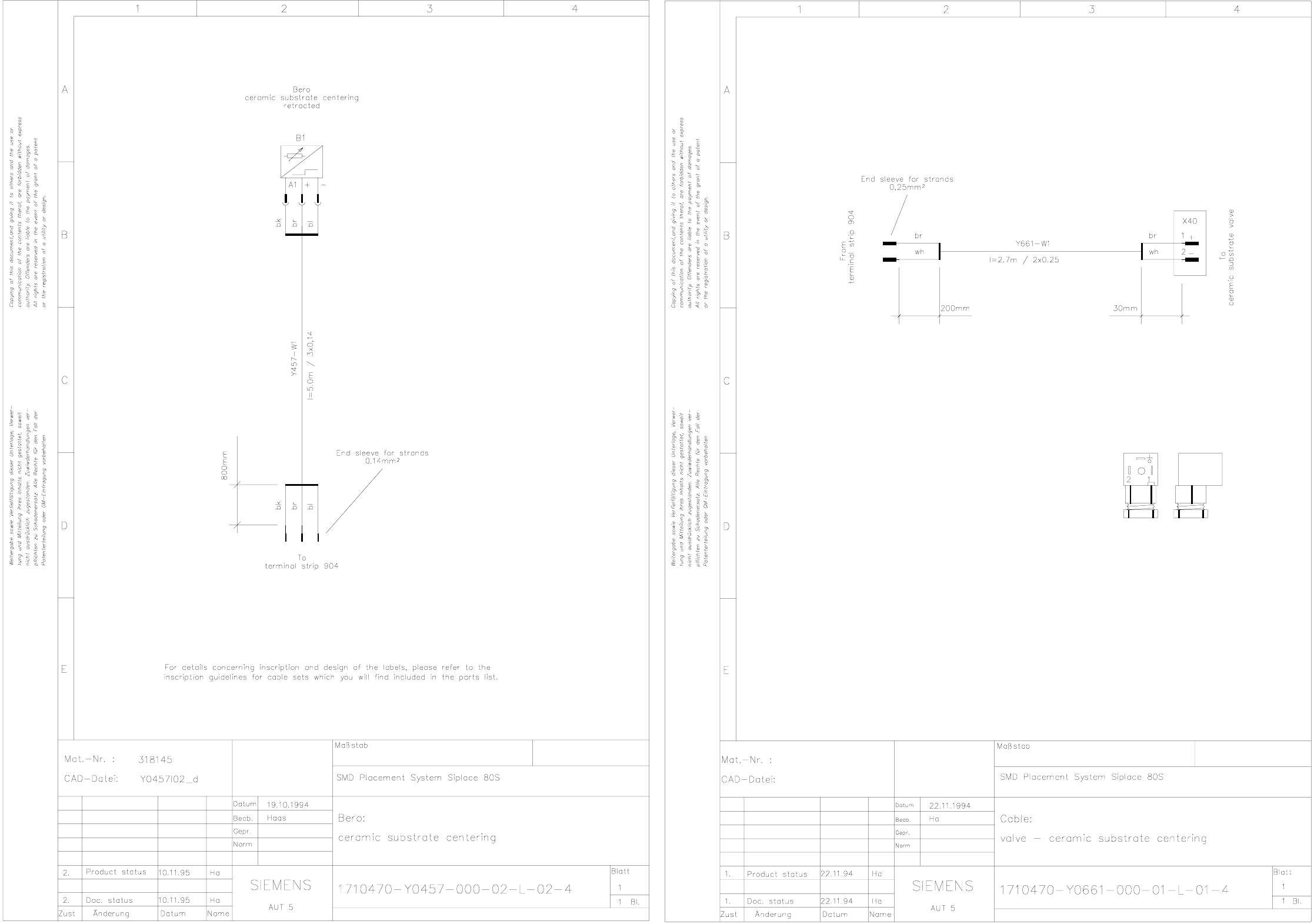

1710470-Y0457-000-02-L-02-4Bero: ceramic substrate centering
1710470-Y0661-000-01-L-01-4Cable: valve - ceramic substrate centering
