12-segm. collect place head compl._DLM4_20211124_095349.pdf - 第14页
12-segm. collect+place head compl./DLM4 Page 14 / 21 24.11.2021
12-segm. collect+place head compl./DLM4
Page 13 / 21 24.11.2021

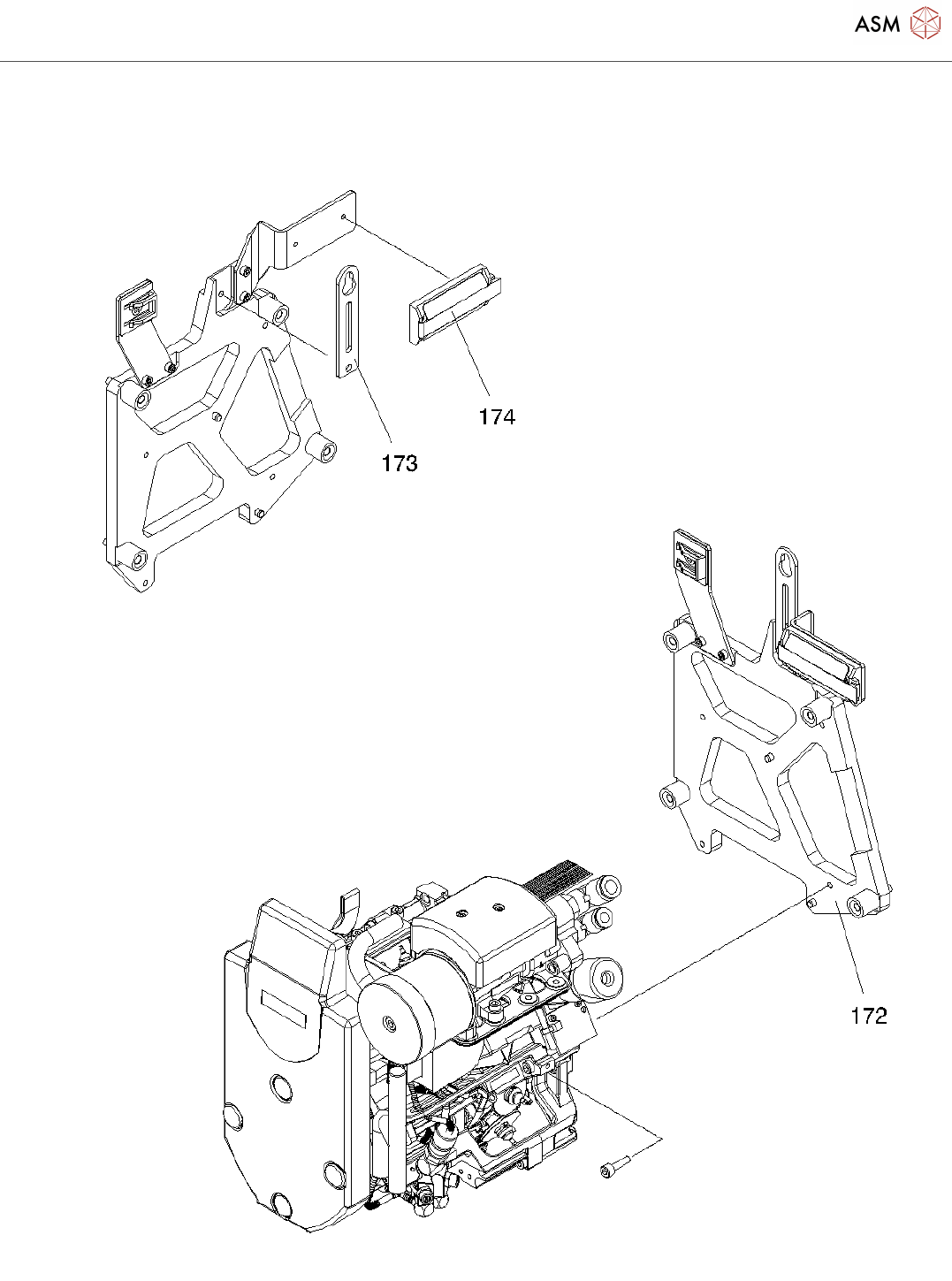

12-segm. collect+place head compl./DLM4
Page 14 / 21 24.11.2021
12-segm. collect+place head compl./DLM4
Page 15 / 21 24.11.2021
Pos. Item no. Description Part marking
1 03082532-01 12-SEGM. COLLECT+PLACE HEAD
COMPL./DLM4
2 03082533S02 12-SEGM. C+P HEAD DLM4 / W.
OUT SLEEVES
Spare Part
3 03082535-01 FRONT UNIT DLM4 COMPLETE
4 03000926-01 FONT PART DLM2 / FINISHED PART
5 03031187S03 STAR MOTOR C28 CPLT. SPARE PART
6 03083864S01 Z-ENGINE WITH INTERFERENCE
SUPPREES DLM4
SPARE PART
00341011-02 Z-AXIS-DRIVE, DLM1
03028761-01 FASTENING CLIP COMPL. SPARE PART
7 03082806S01 INTERFERENCE SUPPRESS. PCB Z
MOTOR DLM4
SPARE PART
8 00337640S01 1401GUIDE GEAR WHEEL, DLM1 SPARE PART
9 03001959S01 Z-AXIS CPL. DLM2 SPARE PART
10 00367793S03 BLISTER UNIT DLM2/DLM3 SPARE PART
03001695-01 DISTRIBUTOR BLOCK /DLM2
00368050-01 THREADED JOINT SMC M-5ALN-4
11 00342849-02 TUBE 20/DLM1
03049879-01 TEE HOSE NIPPLE LO 3000-2.5 STANDARD PARTS
14 00342863-02 HOSE
15 00342850-02 TUBE 21/DLM1
17 03003526-03 MICRO SWITCHING VALVE BLOWING
UNIT 15V
SPARE PART
18 03065594-01 BANJO BOLT M5 / R
19 03002197S01 DRIVER ARM ASSY SPARE PART
20 03002196S01 LIMIT BUFFER, DRIVER ARM DLM2
21 03086965-01 HANDLE COMPLETE
22 00319327S06 BEARING RACE /Z-AXIS
GUIDE/SEGM. GUIDE
SPARE PART
23 00329631-01 SLEEVE MOUNT 1
24 03039046S01 COVER Z-LIGHT BARRIER TOP II SPARE PART
25 00337715S01 MOTOR CLIP1 (Z-AXIS DRIVE), DLM1 SPARE PART
26 00343111S01 MOTOR CLIP2 (Z-AXIS DRIVE), DLM1 SPARE PART
27 00320965-02 STOP
28 00334801-01 ANGLE CLIP /DLM1
29 03043700S01 INSTEP LOCK / Z-AXIS SPARE PART
