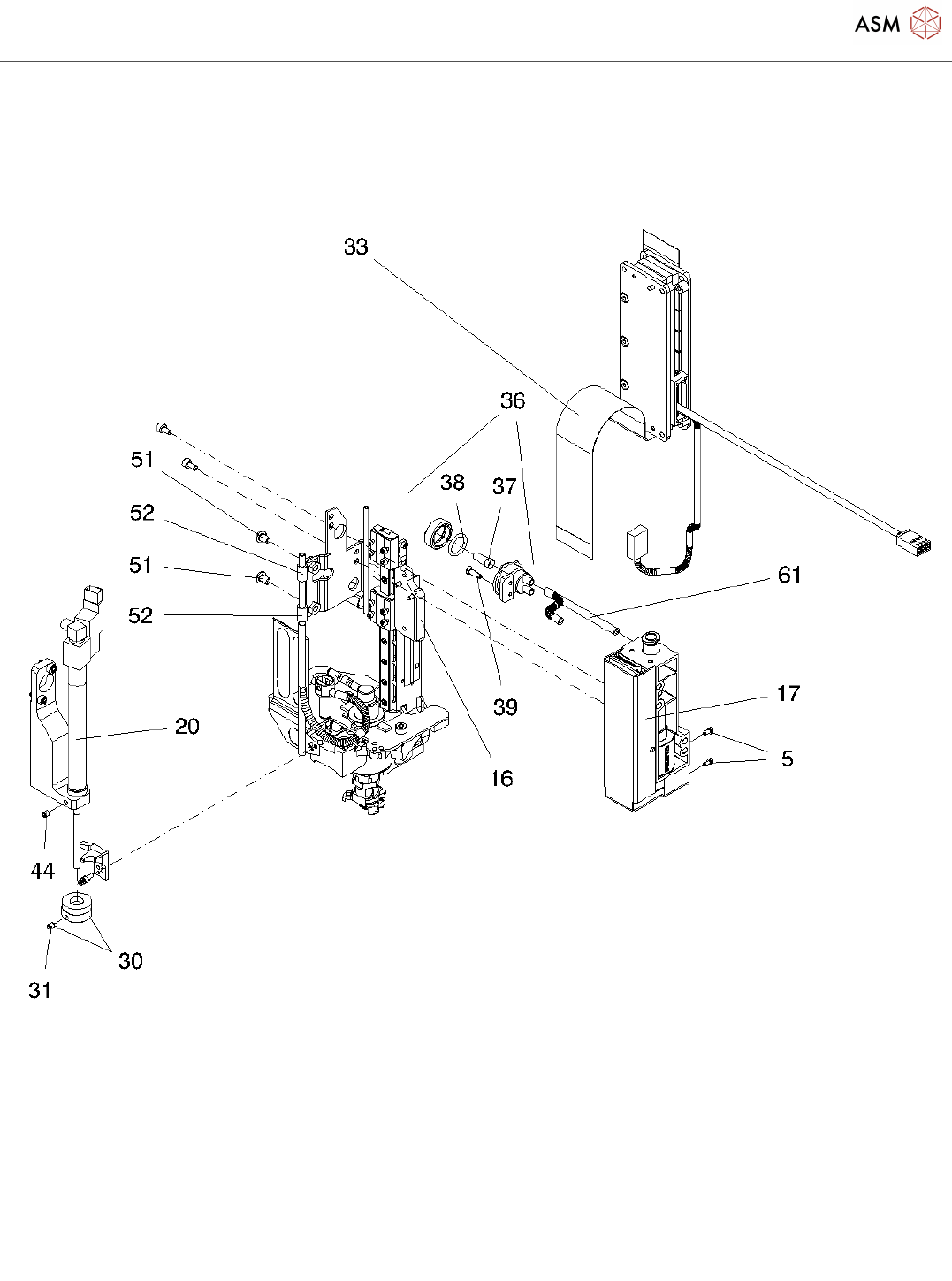

Pos. Item no. Description Part marking
1 03037631-04 TWIN-HEAD / HIGH-FORCE
2 03097486S01 PICK+PLACE MODULE HIGH FORCE
R2
Spare Part
3 03038856-01 BOARD W. CABLE, P+P HIGH FORCE Spare Part
00805140-01 CABLE TIE W=2.4MM L=92MM
TYB-23M
Spare Part
5 03042523-01 ISO 4762 - M 2 X 4-A2-70
03081725-01 PACKING COMPL. PICK+PLACE-
MODULE
03081255-01 PACKING TWIN HEAD / PLASTIC
03081252-01 PACKING TWIN HEAD TOPSIDE
03081253-01 PACKING TWIN HEAD BOTTOM
03068988-01 BLANKING CPP PACKAGING
03068980-01 BLANKING
03081729-01 FOAM ELEMENT MST 3873 / TWIN
HEAD
03081728-01 FOAM FRAME
03081726-01 CARDBOARD BOX / 500X290X270
15 03097233-01 PICK+PLACE BASE MODULE R2
16 03091697-01 READ HEAD MOUNT MS40 TWIN
HEAD
17 03058802S02 DIGITAL-VALVE /TWIN-HEAD SPARE PART
18 03090205-01 READ HEAD MS45 TWIN Z-AXIS *
19 00352833S10 HEAD-MAINBOARD P+P-HEAD SPARE PART
20 03001361S01 RETRACTION UNIT Z-AXIS SPARE PART
03068841-01 HOSE FOR TO FETCH BACK UNIT Z-
AXIS
SPARE PART
00334552S01 HOSE 4*2,5 PUR TU 0425 BU-20 CONSUMABLE
23 03002232S02 1201CAMERA VISUAL SHIELD P&P-
MODUL
SPARE PART
24 03081338-01 BASEBODY PICK AND PLACE MODUL
COMPL.
25 03081342-01 O-RING 6.7X0.8 NBR 70 BLACK WEAR PART
26 03080767-01 SCREW LOCKING
27 03004626-01 SPACER BOLT, TYPE B I/A-M3X50-AL-
F28
STANDARD PARTS
28 03004609S03 PNEUMATIC SPINSUPPLY SPARE PART
29 03001640-01 TUBE 4X0.5
