Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X210 0306-001 291 RM-4 302 630 035 2658 BRACKET 1 801RM-1 10-302 303 41 1 088 1702 W ASHER V 5X10X1 2 801RM-1 10-303 304 41 1 008 2109 W ASHER SPR 5 2 801RM-1 10…
MODEL TCM-X210
0306-001
290
機械廻り２
MISCELLANEOUS PARTS-2
Fig. RM-4
タワー灯
Light Tower
351
302
See Fig.MA-2
Key No.109
305
304
303
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X210
0306-001
291
RM-4
302 630 035 2658 BRACKET 1 801RM-110-302
303 411 088 1702 WASHER V 5X10X1 2 801RM-110-303
304 411 008 2109 WASHER SPR 5 2 801RM-110-304
305 411 140 5105 BOLT HEX 5X14 2 801RM-110-305
351 630 111 6112 ASSY,PILOT LAMP 1 H1,H2,H3 801RM-110-351
MODEL TCM-X210
0306-001
292
51
53
54
52
52
See Fig.MB-6
Key No.504
See Fig.MA-1
Key No.20
See Fig.MA-1
Key No.31
See Fig.RK-1
Key No.57
See Fig.MB-6
Key No.505
See Fig.MA-8
Key No.701
55
57
See Fig.RL-4
Key No.366
See Fig.RG-1
Key No.51
58

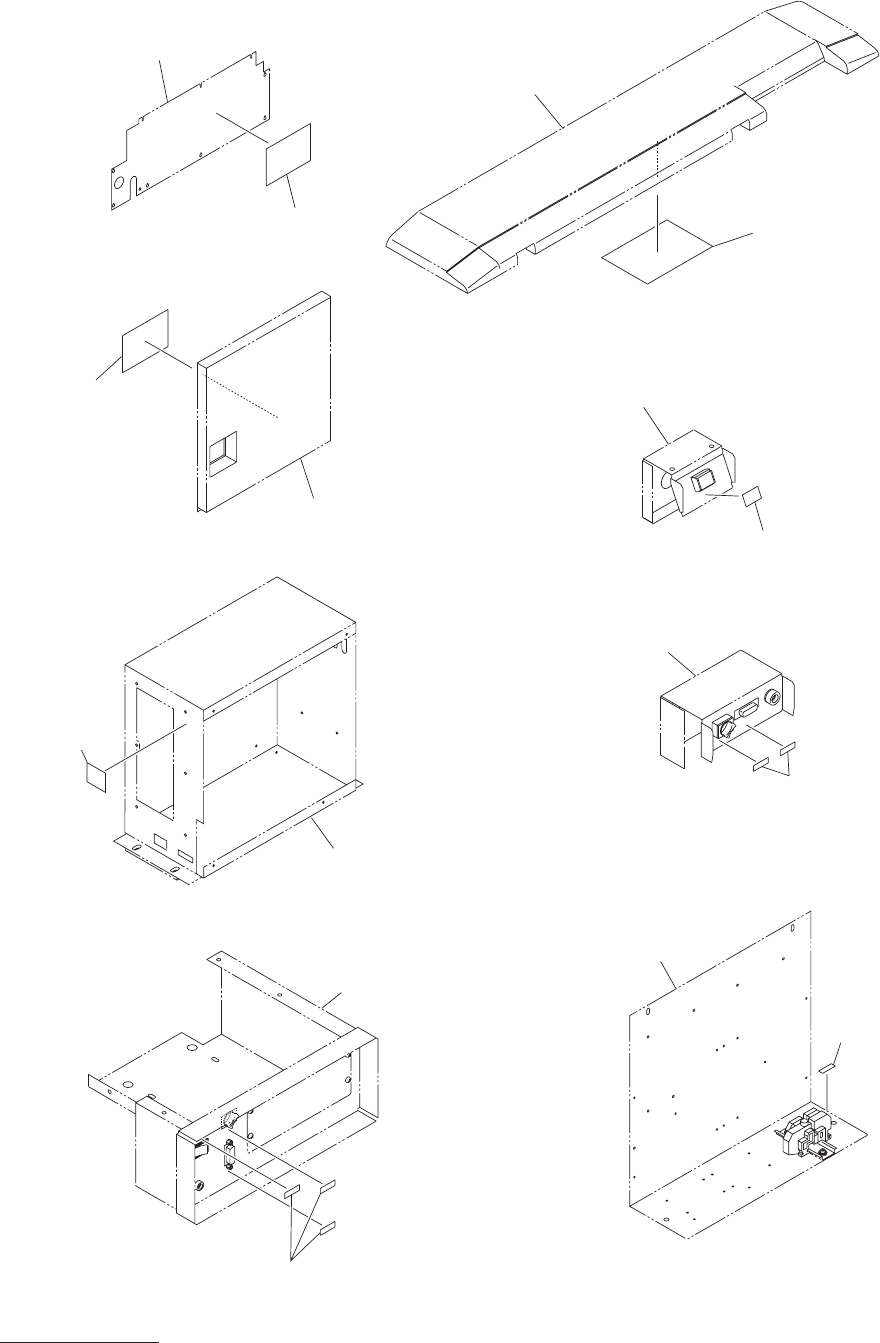

銘板
NAME PLATE
Fig. SA-1
装置銘板
Name Plate for Machine
