- - 3. CUTTERUNIT COMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-37463 CLAMP_UNIT_SN 1

2 402-37468 CLAMP_ASSY (1)

3 E1507-706-00A LEVERCAP03 (1)

4 SM-5030555-SC SCREW (1)

5 400-77504 SPROCKETFLANGEWP (4)

6 SM-1040801-SC SCREWM4X0.7L=8 (2)

7 401-15801 LOCKHOLDERBR (1)

8 E6420-705-000 LOCKLEVERPINB (1)

9 RE-0400000-K0 E-RING4 (2)

10 SL-6040892-TN SCREWM4L=8 (2)

11 WP-0430801-SC WASHERM4 (2)

12 401-15805 CLAMPSP (1)

13 402-37488 HINGE_PIN (1)

14 402-37480 BOLT_CSHELH-ST-M4-5 (1)

15 402-37464 FEED_UNIT_SN 1

16 WS-0210002-KN SPRINGWASHERM2 (4)

17 WP-0220300-SC WASHER (4)

18 PC-0124010-00 SPEEDCONTROLLER (2)

19 401-65057 STOPPER_PLATE_FEED_L_LM

(1)

20 E1119-706-C00 FREELINKCAP (1)

21 SM-1030501-SC SCREWM3L=5 (1)

22 401-65419 F_C_SUPPORT_BASE_LM (1)

23 402-37475 F_C_SUPPORT_BASE_SH_SN (2)

24 402-37480 BOLT_CSHELH-ST-M4-5 (2)

25 SL-6030692-TN SCREWM3L=6 (2)

26 400-49189 HEADRAIL (2)

27 SL-6030692-TN SCREWM3L=6 (2)

28 401-19411 FEEDGEAR (1)

29 SL-6031092-TN SCREWM3L=10 (2)

30 401-15817 FEEDGEARSH (1)

31 RE-0300000-K0 E-RING3 (1)

32 WP-0320501-SC WASHERM3 (1)

33 WS-0310002-KN SPRINGWASHERM3 (1)

34 NM-6030003-SC NUTM3X0.5TYPE3 (1)

35 401-65053 FEED_RACK_LM (2)

36 SM-6020502-TN SCREWM2L=5 (4)

37 401-65055 FEED_HOOK_BR_F_LM (1)

38 SL-6030592-TN SCREWM3L=5 (2)

39 401-15828 FEEDCYLINDER (1)

40 PJ-3040405-04 UNION (2)

41 401-44185 FEED_HOOK_ASM

(3)

42 401-15822 FEEDHOOKSP (3)

43 401-15823 FEEDHOOKSH (3)

44 RE-0600000-K0 E-RING6 (3)

45 401-35023 FEEDHOOKBRR (1)

46 402-16010 FEEDER_SPACER_S_LM_S (1)

47 401-17043 FEEDSOLENOIDVALVEASSY (1)

48 402-56672 RFFEEDSVCABLEASM (1)

49 PJ-0460525-01 BARBELBOW (5)

50 PJ-3080600-08 DIFFERENTDIAMETERUNIONY (1)

51 401-15813 SILENCER (1)

52 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.17)

53 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.32)

54 SL-6030692-TN SCREWM3L=6 (4)

- -

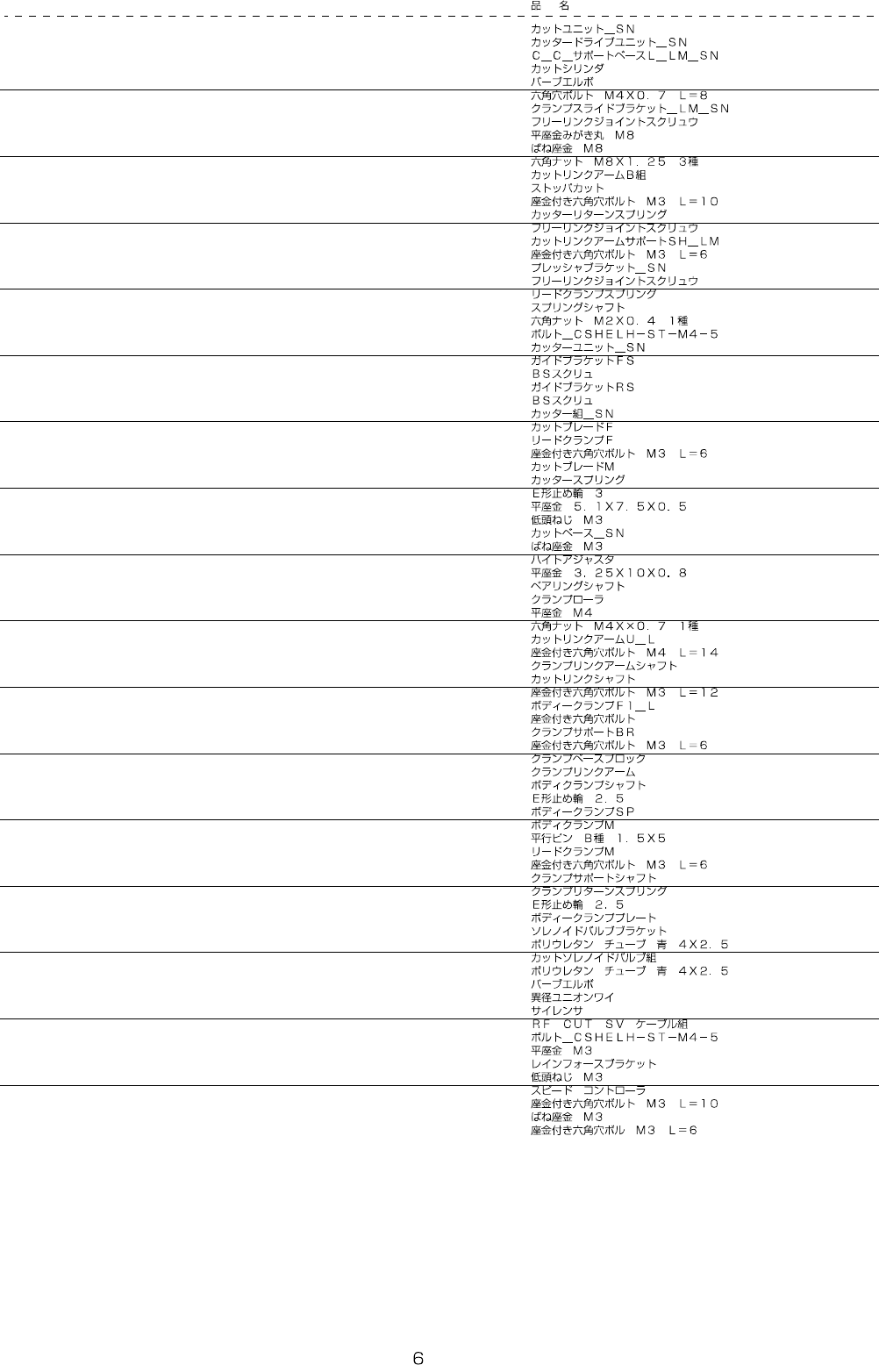

3. CUTTERUNITCOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-37465 CUT_UNIT_SN 1

2 402-37469 CUTTER_DRIVE_UNIT_SN (1)

3 402-37476 C_C_SUPPORT_BASE_L_LM_SN (1)

4 401-15836 CUTCYLINDER (1)

5 PJ-0460525-01 BARBELBOW (2)

6 SM-6040802-TN SCREWM4X0.7L=8 (3)

7 402-37477 CLAMP_SLIDE_BR_LM_SN (1)

8 E1120-706-C00 FREELINKJOINTSCREW (1)

9 WP-0841601-SC WASHERM8 (1)

10 WS-0820002-KN SPRINGWASHERM8 (1)

11 NM-6080003-SC NUTM8X1.25TYPE3 (1)

12 401-17042 CUTLINKARMBASSY (1)

13 401-18161 STOPPERCUT (1)

14 SL-6031092-TN SCREWM3L=10 (2)

15 401-15789 CUTTERRETURNSP (1)

16 E1120-706-C00 FREELINKJOINTSCREW (1)

17 401-65423 CUT_LINK_ARM_SUPPORT_SH_LM (1)

18 SL-6030692-TN SCREWM3L=6 (1)

19 402-37478 PRESSURE_BR_SN (1)

20 E1120-706-C00 FREELINKJOINTSCREW (1)

21 401-15791 LEADCLAMPSP (1)

22 401-17033 SPSH (2)

23 NM-6020001-SC NUTM2X0.4TYPE1 (2)

24 402-37480 BOLT_CSHELH-ST-M4-5 (2)

25 402-37470 CUTTER_UNIT_SN (1)

26 401-17047 GUIDEBRFS (1)

27 401-15820 BSSCREW (1)

28 401-17048 GUIDEBRRS (1)

29 401-15820 BSSCREW (1)

30 402-37485 CUTTER_ASM_SN (1)

31 401-44050 CUT_BLADE_F (1)

32 401-44045 LEAD_CLAMP_F (1)

33 SL-6030692-TN SCREWM3L=6 (1)

34 401-44044 CUT_BLADE_M (1)

35 401-15782 CUTTERSP (1)

36 RE-0300000-K0 E-RING3 (1)

37 WP-0510516-SD WASHER5.1X7.5X0.5 (1)

38 401-23725 LOWHEAD_SCREW_M3 (1)

39 402-37479 CUT_BASE_SN (1)

40 WS-0310002-KN SPRINGWASHERM3 (1)

41 401-44046 HEIGHT_ADJUSTER (1)

42 WP-0330816-SF WASHER3.25X10X0.8 (1)

43 401-17034 BEARINGSH (1)

44 401-17477 CLAMPROLLER (1)

45 WP-0430801-SC WASHERM4 (3)

46 NM-6040001-SC NUTM4X0.7TYPE1 (1)

47 401-21060 CUT_LINK_ARM_U_L (1)

48 SL-6041492-TN SCREWM4L=14 (1)

49 401-15787 CLAMPLINKARMSH (1)

50 401-15784 CUTLINKSH (1)

51 SL-6031292-TN SCREWM3L=12 (2)

52 401-44031 BODY_CLAMP_F1_L (1)

53 SL-6031442-TN BOLT (2)

54 401-44039 CLAMP_SUPPORT_BR (1)

55 SL-6030692-TN SCREWM3L=6 (2)

56 401-19412 CLAMPBASEBLOCK (1)

57 401-15786 CLAMPLINKARM (1)

58 401-15797 BODYCLAMPSH (1)

59 RE-0250000-K0 E-RING2.5 (1)

60 401-44032 BODY_CLAMP_SP (1)

61 401-15799 BODYCLAMPM (1)

62 PH-0150052-C0 PARALLELPINTYPEB1.5X5 (1)

63 401-15800 LEADCLAMPM (1)

64 SL-6030692-TN SCREWM3L=6 (2)

65 401-15795 CLAMPSUPPORTSH (2)

66 401-15796 CLAMPRETURNSP (2)

67 RE-0250000-K0 E-RING2.5 (4)

68 401-44030 BODY_CLAMP_PLATE (1)

69 402-37486 SOLENOID_VALVE_BR (1)

70 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.27)

71 401-17044 CUTSOLENOIDVALVEASSY (1)

72 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.17)

73 PJ-0460525-01 BARBELBOW (5)

74 PJ-3080600-08 DIFFERENTDIAMETERUNIONY (1)

75 401-15813 SILENCER (1)

76 402-56673 RFCUTSVCABLEASM (1)

77 402-37480 BOLT_CSHELH-ST-M4-5 (2)

78 WP-0320501-SC WASHERM3 (2)

79 401-15793 REINFORCEBR (1)

80 401-23725 LOWHEAD_SCREW_M3 (2)

81 PC-0124010-00 SPEEDCONTROLLER (2)

82 SL-6031092-TN SCREWM3L=10 (2)

83 WS-0310002-KN SPRINGWASHERM3 (2)

84 SL-6030692-TN SCREWM3L=6 (2)
