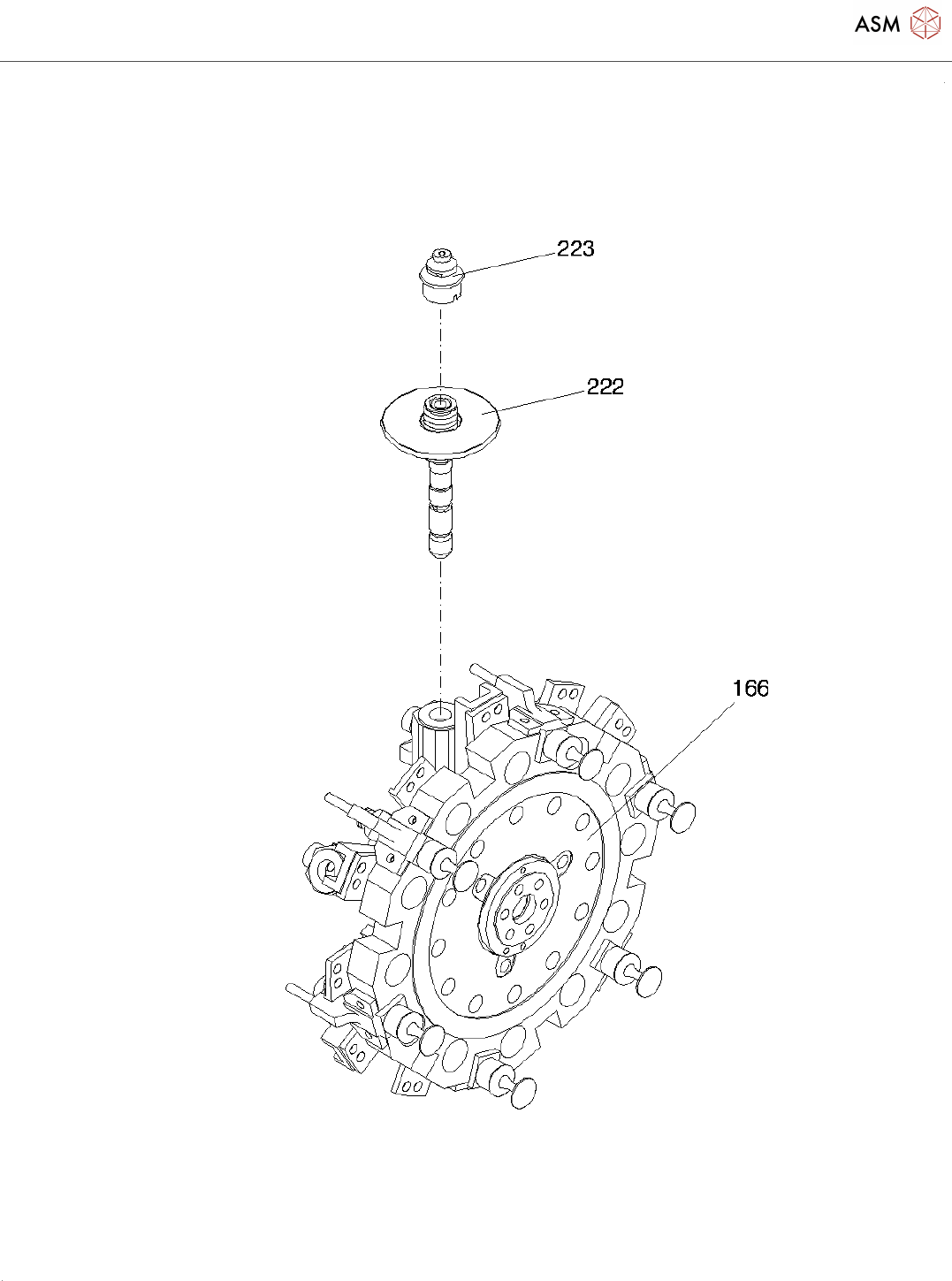

Collect and place head RVC 6-nozzle Page 19 / 26 22.11.2021
Collect and place head RVC 6-nozzle
Page 18 / 26 22.11.2021
Collect and place head RVC 6-nozzle
Page 19 / 26 22.11.2021
Collect and place head RVC 6-nozzle
Page 20 / 26 22.11.2021
Pos. Item no. Description Part marking
1 03009555-01 COLLECT & PLACE HEAD COMPL.
RVC-6-NOZZLE
2 03009554S01 COLLECT & PLACE HEAD RVC-6
NOZZLE
Spare Part
3 03009542-02 FRONT PART COMPL.
RVC-6-NOZZLE
4 00335982-01 HOUSING /DLM1
5 00319327S06 BEARING RACE /Z-AXIS
GUIDE/SEGM. GUIDE
SPARE PART
6 00328906-01 DIN912-M3 X 5-A2-70
7 00320965S02 STOP
8 00845001-01 HEXAGON SOCKET HEAD CAP
SCREW M2 X 4-A2
9 00329280S01 1401TUBE 2X0,2 SPARE PART
10 00320045-01 THREADED PIN M1,6*2,5 DIN916
V2A
11 00337640S01 1401GUIDE GEAR WHEEL, DLM1 SPARE PART
12 00334937-01 GEAR WHEEL, DLM1
13 00319348-01 SPACER RING 2
14 00619845-01 DIN 6325 - 3M5 X 16-ST
15 00317349-01 MINIATURE BALL BEARING 3X8X3
RV 308X
WEAR PART
16 00319332-02 SPACER RING 1
17 03038908S01 Z-MOTOR WITH PCB SPARE PART
18 00845012-01 HEXAGON SOCKET HEAD CAP
SCREW M3 X 5-8.8, COPPER + NI-
PLATED
19 00337715S01 MOTOR CLIP1 (Z-AXIS DRIVE), DLM1 SPARE PART
20 00329135-01 DIN912-M3 X 14-A2-70
21 00343111S01 MOTOR CLIP2 (Z-AXIS DRIVE), DLM1 SPARE PART
22 00304134-01 DIN912-M2,5 X 12-A2-70
23 00320165S02 MINIATURE ROLLING TABLE SPARE PART
24 00201465-01 CAP SCREW DIN84-M2X4-A2
25 00332246S02 DRIVER DLM1 (PLACEMENT HEAD) SPARE PART
26 00845001-01 HEXAGON SOCKET HEAD CAP
SCREW M2 X 4-A2
27 00319331S02 MECHANICAL Z-AXIS GUIDE SPARE PART
28 00304435-01 DIN912-M2,5 X 5-A2-70
