Powerful Scan at Your Fingertips Exceptional Accuracy Accuracy With exceptional precision and reliability, KSCAN-E sets a new standard for non-destruc - tive inspection solutions across various industrial applications. 0…
Ultra-fast scanning Large-area scanning Hole and edge inspection Hyperfine scanning Deep-hole scanning Adaptive photogrammetry
Built-in batteries, dual WNIC designQuad-cross laser, 180 FPS
Certified based on the most rigorous
industry standards
Accuracy up to 0.020 mm
High-resolution touchscreen
IP50
ISO 10360
03 04
Ø11.670
L347.978
Ø11.670
Ø11.670
Powerful Scan at Your Fingertips
Exceptional Accuracy
Accuracy
With exceptional precision and reliability, KSCAN-E sets a new standard for non-destruc-
tive inspection solutions across various industrial applications.
0.020 mm
Volumetric accuracy when paired with the
MSCAN-L15 photogrammetry system
0.015 mm + 0.012 mm/m
Volumetric accuracy when paired with
800-mm precise scale bar
0.015 mm + 0.015 mm/m
Efficient Measurement
Its innovative quad-cross technology
accelerates point cloud generation.
Combined with a high frame rate and
measurement rate, it greatly enhanc-
es efficiency.
Quad-cross blue laser lines
4×27
Measurements/s
8.29 million
Frame rate
180 FPS
Excellent Detail Capture
Equipped with 17 parallel blue laser lines and
high-performance industrial cameras, the 3D
scanner offers a resolution of up to 0.010 mm.
Combined with DefinSight real-time meshing, it
enables users to accurately capture fine features
such as gaps and slots, ensuring every detail is
clearly presented.
Blue laser lines
17 parallel
Resolution
0.01 mm
05 06
Fine Details
Hyper-fine scanning with parallel blue lasers, perfect for capturing intricate details of parts
such as injection molds and gear teeth with exceptional precision.

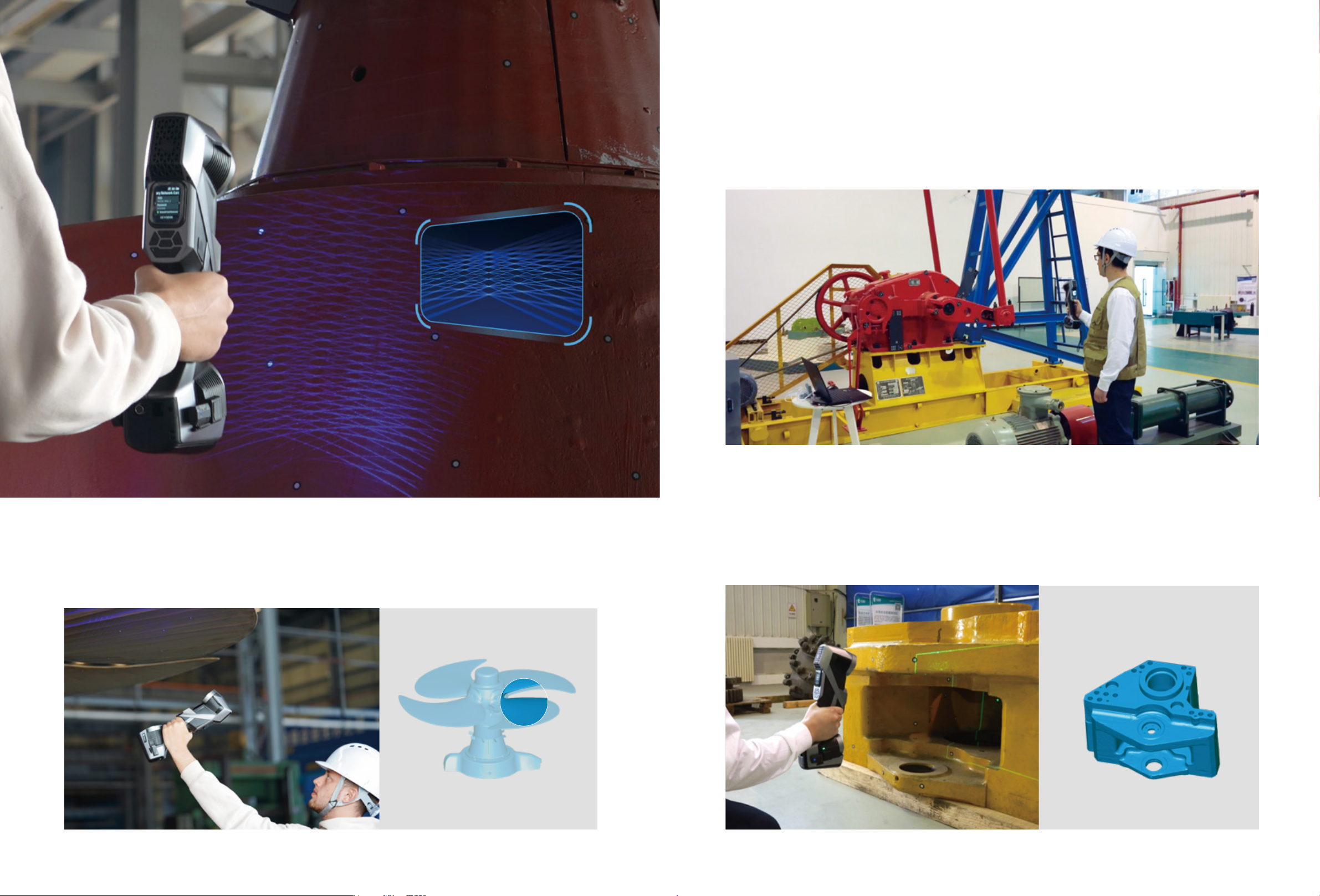

Large Parts
Adaptive photogrammetry system to eliminate cumulative errors, excellent for
measuring large parts such as car body and heavy equipment.
Infrared large-area scanning to reduce the number of targets and enhance efficiency.
Scan Anything, Anytime
07 08
-Ensure high volumetric accuracy even in complex, large-scale environments
-Support target optimization through scale bar
-38 infrared laser lines
-Max working distance of up to 1.5 m
-Large scan area of up to 1440 mm * 1000 mm
KSCAN-E is robust, flexible and versatile, ideal for scan-
ning small to large objects wherever you are. With 4×27
quad-cross blue laser lines, the KSCAN-E allows for rapid
data capture without compromising accuracy.
