sATS30NS_KMH_mpl.pdf - 第14页
KMH-1806 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KMH-1806
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KGF-M1788-00 SPRING 2 /
Í
39
2 KGX-M173H-00 HANDLE 2 /
40
3 KH2-M1324-01 GRIP 1 /
41
4 KJY-M92MA-00 CAM,FOLLOWER 2 /
Í
42
5 KMH-M173A-L0 PLATE,LINK L 1 /
Í
43
6 KMH-M173A-R0 PLATE,LINK R 1 /
Í
44
7 KMH-M173B-L0 PLATE,LATCH L 1 /
Í
45
8 KMH-M173B-R0 PLATE,LATCH R 1 /
Í
46
9 KMH-M173C-00 BRACKET,GRIP 1 /
Í
47
10 KMH-M174B-00 DAMPER 2 /
Í
48
11 KMH-M5553-00 LAMINATE 1 1 /
49
12 KMH-M5553-10 LAMINATE 2 1 /
50
13 KMH-M5552-00 QR CODE LABEL,MZ 2 /
51
14 90933-02J126 BEARING 2 52
15 90933-03J683 BEARING 2 53
16 90990-01J043 BOLT HEX,SOCKET HEAD 4 54
17 90990-01J056 BOLT HEX,SOCKET HEAD 2 55
18 90990-31J023 BOLT, SHOULDER 2 56
19 90990-41J179 COLLAR 4 57
20 90990-41J182 COLLAR 2 58
21 90990-41J184 COLLAR 2 59
22 90990-41J185 COLLAR 4 60
23 90990-41J189 COLLAR 2 61
24 90990-41J198 COLLAR 2 62
25 91312-03014 BOLT HEX,SOCKET HEAD 2 63
26 91312-03022 BOLT HEX,SOCKET HEAD 2 64
27 91312-04016 BOLT HEX,SOCKET HEAD 2 65
28 91312-05010 BOLT HEX,SOCKET HEAD 4 66
29 92903-04600 WASHER,PLAIN 8 67
30 98902-04006 SCREW BINDING HEAD 8 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
3
1

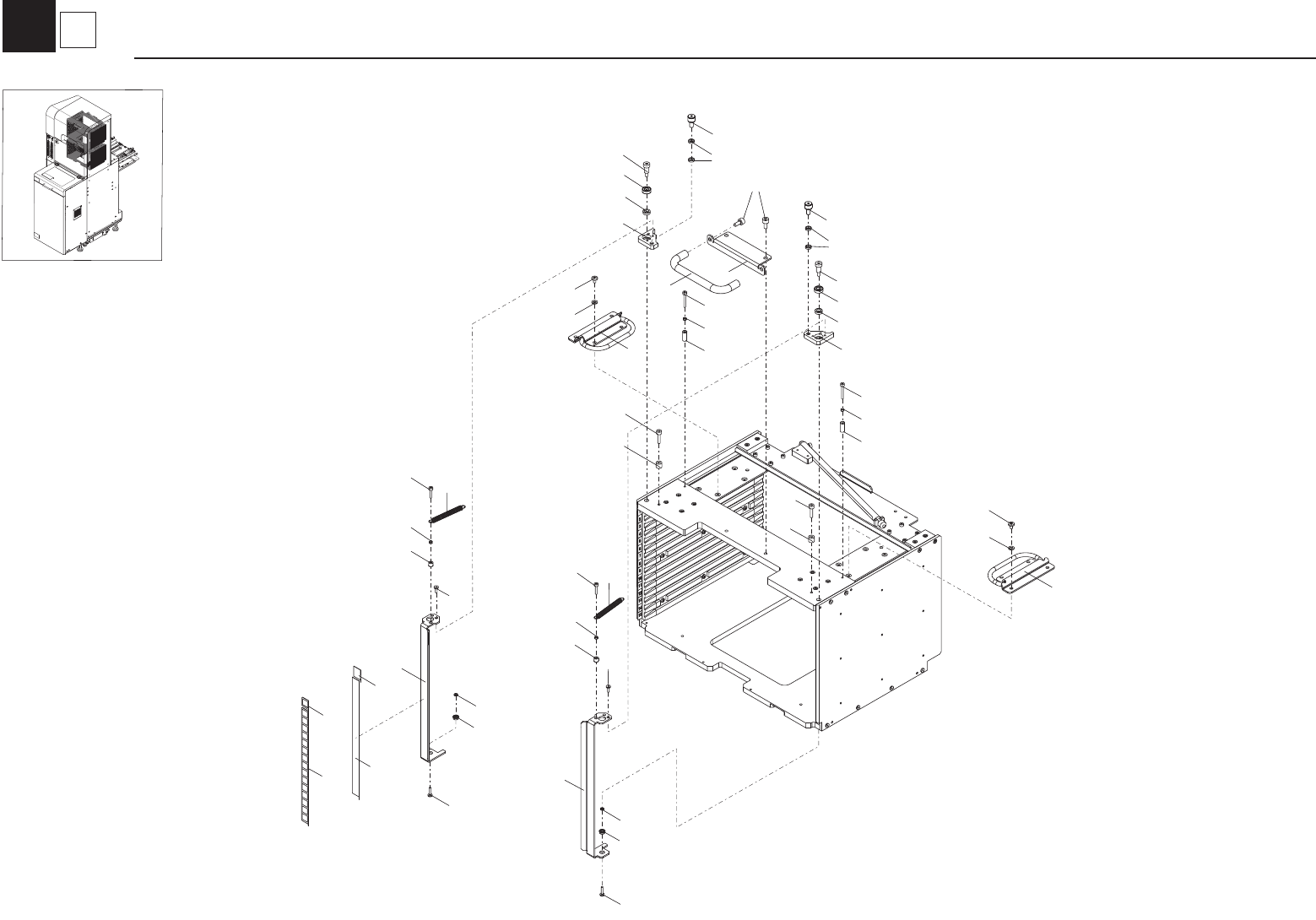

Rack Assy
Rack
