19 Maintenance Parts AUG./2004 Main Box 1 No . Part No. Part Name Q'ty Remarks Rank 1 KGN-M4255-20X FLASH DISK 1 256MB B
18
Maintenance Parts
AUG./2002

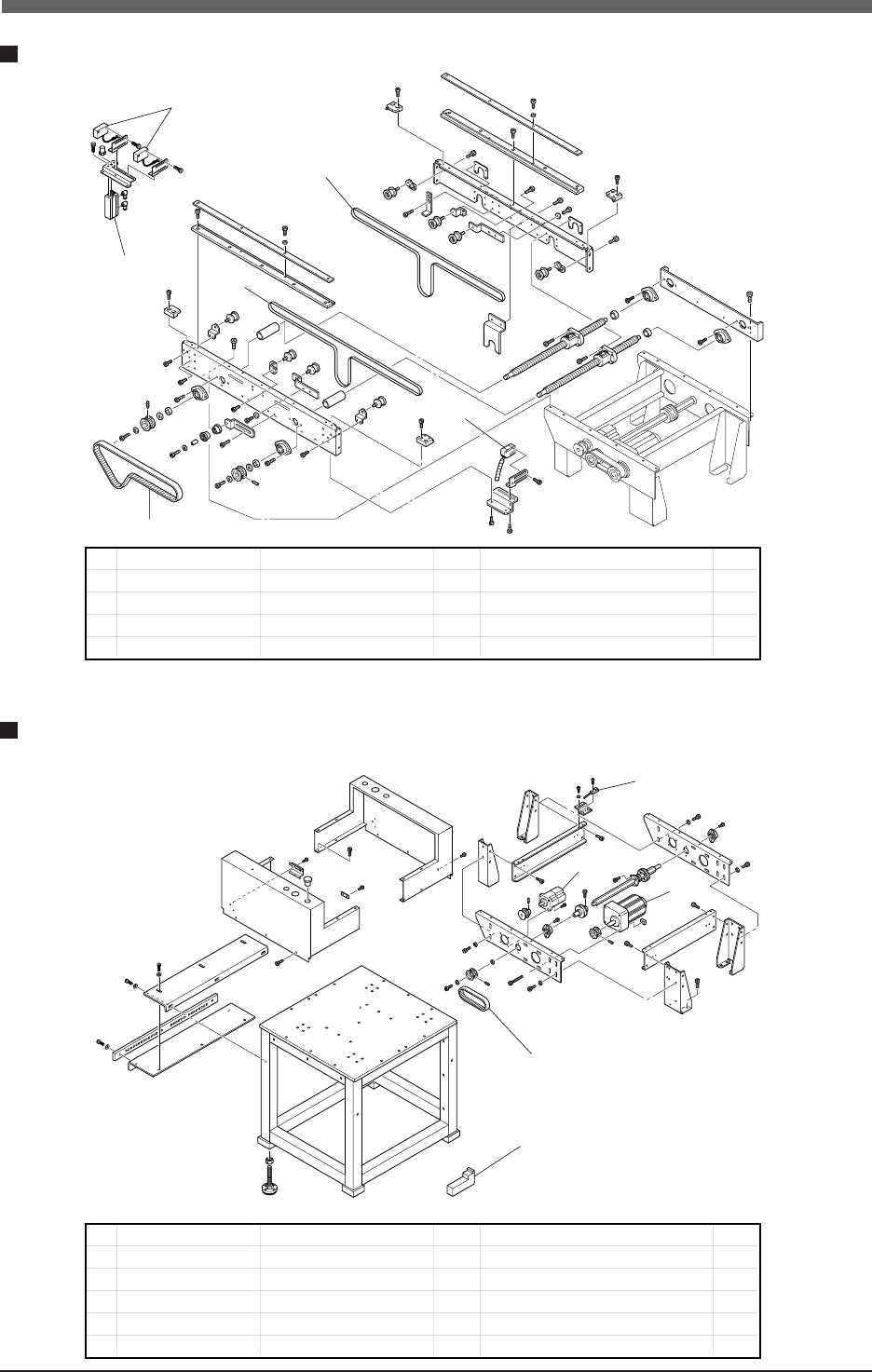

Buffer Conveyor 1 (OP.)
Buffer Conveyor 2 (OP.)
4
3
3
2
2
1
3
5
1
4
2
No. Part No. Part Name Q'ty Remarks Rank
1 KV1-M910B-00X BELT (666-3GT-9) 1 666-3GT-9 A
2 KV1-M913J-10X BELT 1, CONVEYOR 2 A
3 KGJ-M655F-00X SENSOR, SPARE 2 3 HPB-A21 B
4 KV7-M9283-00X CYL., YMDA16X35 1 YMDA16x35 B
No. Part No. Part Name Q'ty Remarks Rank
1 KV1-M910A-00X BELT (246-3GT-9) 1 246-3GT-9 A
2 KV1-M4886-00X MOTOR ASSY., 6 1 M7RA15GV4Y+M7GA6B B
3 90K55-4W076W AC SERVO MOTOR 1 W axis B
4 KG2-M8582-40X VALVE 7 A040-4E1 (Spare) B
5 KGJ-M653A-00X SENSOR, SPARE 2 1 E2E-W22 B
19
Maintenance Parts
AUG./2004
Main Box
1
No. Part No. Part Name Q'ty Remarks Rank
1 KGN-M4255-20X FLASH DISK 1 256MB B
20
Maintenance Parts
■
Exterior, etc.
7
9
11, 12 514131
10 6 1, 2, 3, 4, 5 8
No. Part No. Part Name Q'ty Remarks Rank
1 KGC-M4550-00X CONNECTION BOARD ASSY. 1 B
2 KGA-M6522-02X SPARE RELAY SET 1 Spare for Connection Board A
3 KGA-M6522-10X SPARE RELAY 1 Spare for Connection Board A
4 KGA-M6522-20X SPARE RELAY 1 Spare for Connection Board A
5 KH4-M6441-02X SPEED CONTROLLER, 2 1 Spare for Connection Board B
6 KV7-M6561-01X POWER SUPPLY 1 1 GS21 B
7 KW3-M4570-01X I/O HEAD UNIT ASSY. 1 P21 B
8 KW3-M4580-02X I/O CONV UNIT ASSY. 1 P22 B
9 KG7-M530H-02X FLOPPY DISK DRIVE 1 A14 B
10 KGJ-M1353-00X LAMP SPARE 1 Fluorescent Lamp Spare A
11 KW3-M5150-50X KEYBOARD J 1 Japanese C
12 KW3-M5150-60X KEYBOARD E 1 English C
13 KW3-M5169-04X MOUSE 1 C
14 KW3-M427G-20X FILTER 2 1 A
15 KJ0-M4187-00X FAN GUARD 2 C
