MEMO
MODEL TCM-3000Z-2
0108-001
232
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
57 411 008 1706 WASHER SPR 4 4 SW4 F
58 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
61 630 091 5969 BRACKET 1 628DB-03V-006
62 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
63 411 008 1706 WASHER SPR 4 4 SW4 F
64 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
65 630 096 2536 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0000 628FB-03U-001
66 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
67 411 086 4408 WASHER SPR 3 4 SW3 F
68 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
69 630 091 9004 COVER 1 628DB-03V-007
70 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
71 411 008 1706 WASHER SPR 4 4 SW4 F
72 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
11-20
MEMO
MODEL TCM-3000Z-2
0108-001
234
33
32
31
31
30
31
31
32
32
29
28
27
38
26
35
35
34
34
39
40
4
20
20
12
12
11
11
6
7
8
8
7
6
5
3
2
13
1
10
10
See Fig.1-1
Key No.2
10
9
14
15
37
44
47
49
49
46
46
45
45
45
45
48
.
22
21
21
24
20
20
19
19
18
18
17
17
16
23
.
43
42
42
41
36
36
33

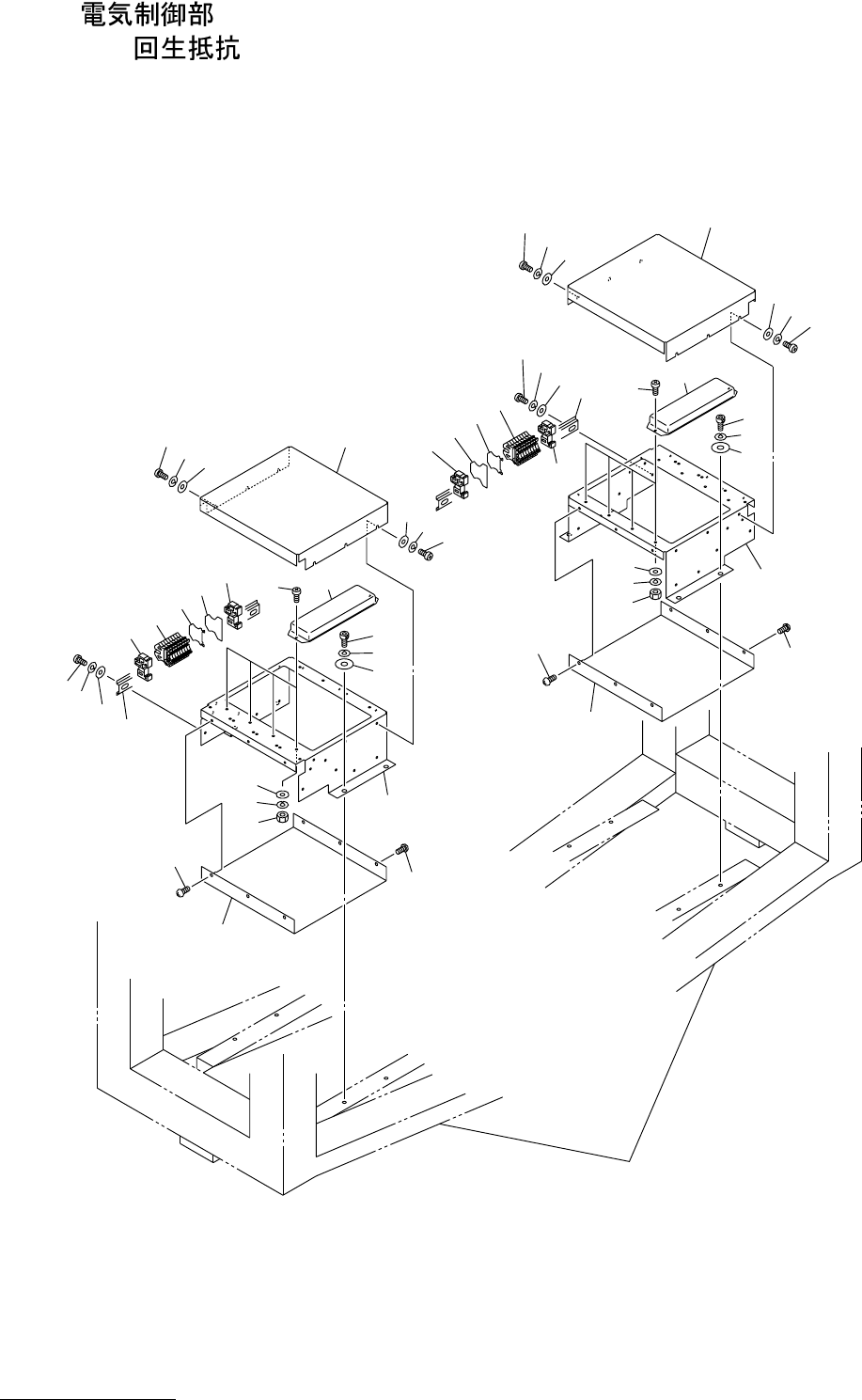

ELECTRICAL SECTION
Fig.11-21
Regenerative Resistance
