MODEL GXH-1J 1012-003 225 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE FF-4 301 6301363950 BOX 1 829FF-010-301 21 1B1053 302 6301270357 BOX 1 829FF-010-302 21 1B0973 304 6301369389 BOX 1 829G--010-641 21 1B1…
MODEL GXH-1J
0501-001
224
操作パネル部
B OPERATING PANEL SECTION

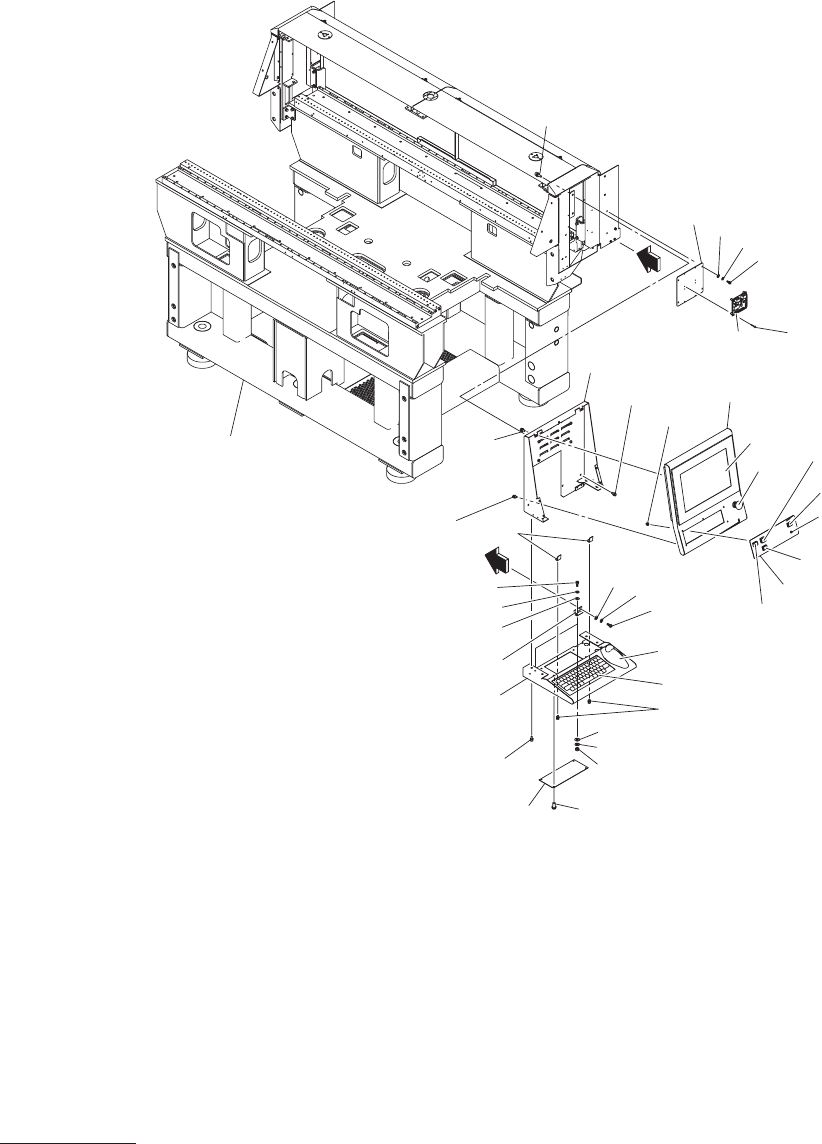

Fig. FF-4
パネル
Panel
357
374
.
383
.
388
374
.
383
.
388
372
373
.
383
.
388
351
.
352
.
353
354
.
355
375
.
382
.
387
374
.
383
.
388
374
.
383
.
388
301
302
360
359
358
356
308
305
306
304
363
362
312
387
382
380
380
382
387
361
376
311
387
382
380
387
382
375
374
.
383
.
388
A
A
See Fig.B-1
Key No.1
MODEL GXH-1J
1012-003
225
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FF-4
301 6301363950 BOX 1 829FF-010-301 211B1053
302 6301270357 BOX 1 829FF-010-302 211B0973
304 6301369389 BOX 1 829G--010-641 211B1067
305 6301255767 BRACKET 2 829G--010-305 211F8187
306 6301255798 PLATE 1 829G--010-306 211D9464
308 6301255774 PANEL 1 829FF-010-308 211C1
170
311 6301369396 PLATE 1 829G--010-630 211DA578
312 6301320700 HINGE 2 829G--010-312 226F0154
351
6300334609 SWITCH,BUTTON 1 -S101 829FF-010-351 4S1B0085
352 6300334586 DISPLAY ELEMENT 1 829FF-010-352 4T400003
353
6300334593 ACCESSORY,SW 1 829FF-010-353 23H20029
354
6300002713 SWITCH,BUTTON 1 -S102 829FF-010-354 4S1B0032
355 6300000382 ACCESSORY,SW 1 829FF-010-355 23H20003
356
6300002515 SWITCH,BUTTON 1 -S103 829FF-010-356 4S1B0012
357 6300002744 SWITCH,BUTTON 1 -S104 829FF-010-357 4S1B0035
358 4070354704 LED SLP-721F 1 -H104B 829FF-010-358 4T3A0246
359 6301241616 SWITCH,BUTTON 1 -S105 829G--010-359 4S1B0151
360 6301241753 UNIT,DISPLAY 1 -N74 829FF-010-360 4U210105
361 6301235745 P.C.B,MOUNT 1 -U01 829G--010-061 4B1
11451
362 6301235837 UNIT,I/O 1 N75 829G--010-362 4U250152
363 6301235844 UNIT,I/O 1 N76 829G--010-363 4U250153
372 4110512804 SCR TRS 4X8 4 M4X8 TRS 221A0016
373 6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
374
6300007756 BOLT,HEX-SCT 17 M5X12 221A0030
375
4111410307 NUT HEX 4 10 M4 221F0104
376
4111130700 SCR PAN 3X16 4 M3X16 PAN 221E0491
380 6300007619 BOLT,HEX-SCT 12 M4X8 221A0016
382
4111412905 WASHER SPR 4 22 SW4 221H0284
383
4111416705 WASHER SPR 5 19 SW5 221H0289
387
4111414008 WASHER V 4X9X0.8 22 FW4 221H0315
388
4111414107 WASHER V 5X10X1 19 FW5 221H0320
MODEL GXH-1J
0501-001
226
操作パネル部
B OPERATING PANEL SECTION
Fig. FF-5
ケーブル
Cable
470
461
462
See Fig.FF-4
Key No.311
See Fig.BS-5
Key No.456
See Fig.BL-6
Key No.590
See Fig.BS-5
Key No.455
