MODEL CD-G1 10 0801-002 4 6 12 5 2 3 7 8 7 1 9 9 58 63 56 67 62 55 57 57 54 67 62 55 See Fig. LF-1 Key No.61 66 61 . 52 . 51 LE-1 illust-1 CD-G1 10 機構部 CD-G1 10 MECHANICAL SECTION Fig. LE-1 機構部 Mechanical Section
MODEL CD-G110
0801-002
CD-G110
(BLOCK1)
CD-G110
(BLOCK1)
(BLOCK3)
CD-G110
GXH-3
GXH-3J

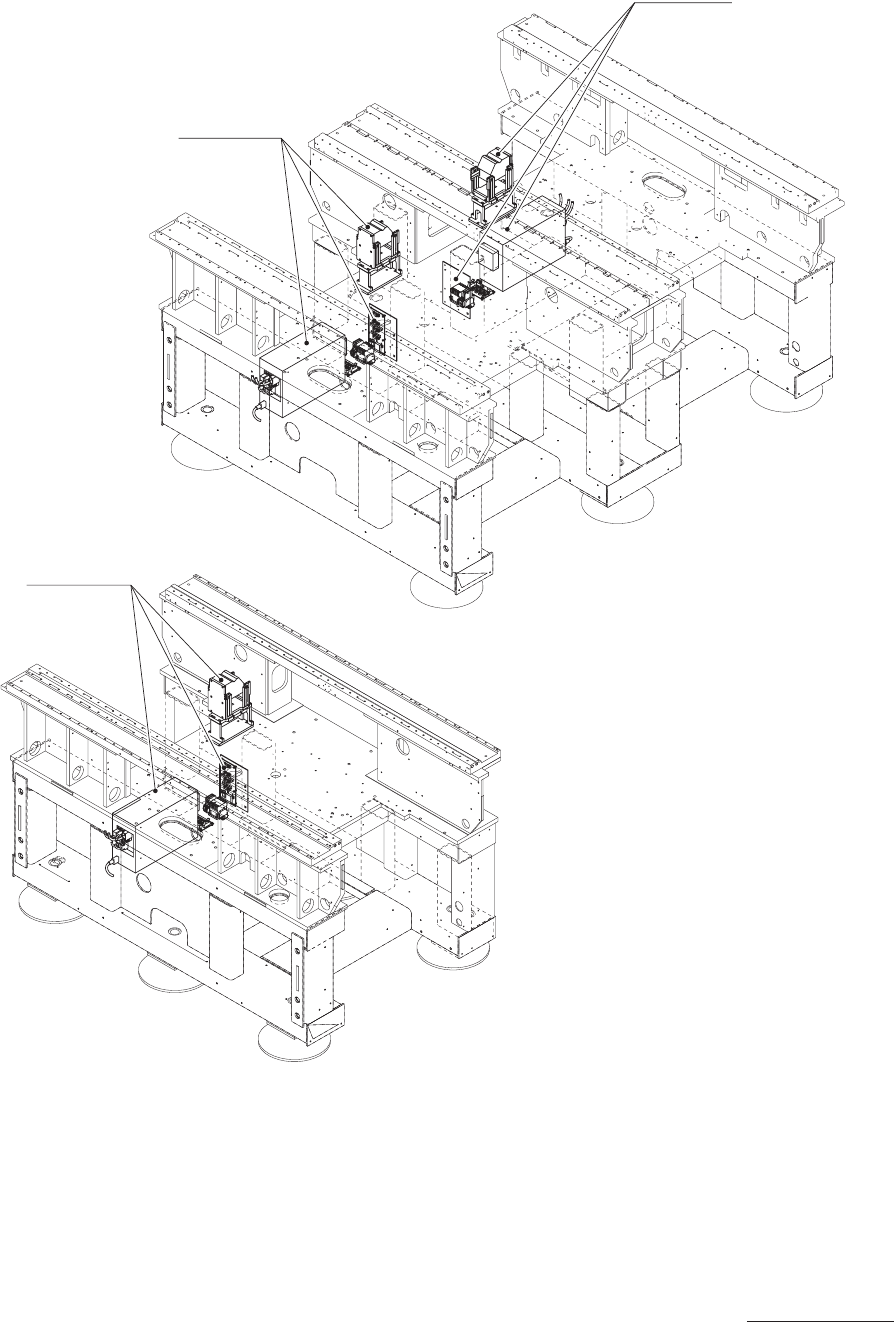

注)
イラストはBLOCK1,3にコプラナリティチェックユニットCD-G110を
装着した例を示しております。
Notice
)The illustration shows the example where the coplanarity check unit CD-G110
is mounted onto the BLOCK 1.3.
コプラナリティチェックユニット
CD-G110
Coplanarity Check Unit CD-G110
illust-1
MODEL CD-G110
0801-002
4
6
12
5
2
3
7
8
7
1
9
9
58
63
56
67
62
55
57
57
54
67
62
55
See Fig. LF-1
Key No.61
66
61
.
52
.
51
LE-1 illust-1
CD-G110
機構部
CD-G110 MECHANICAL SECTION
Fig. LE-1
機構部
Mechanical Section
MODEL CD-G110
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301319995 PLATE 1 845LE-110-001 211DA044
2 6301320007 PLATE 1 845LE-110-002 211DA045
3 6301372471 PLATE 1 845LE-110-003 211DA608
4 6301372464 PLATE 1 845LE-110-004 211DA607
5 6301320090 SHAFT 1 845LE-110-005 213A1133
6 6301320083 COLLAR 1 845LE-110-006 216A1209
7 6301320038 STAY 4 845LE-110-007 211J1255
8 6301320045 STAY 4 845LE-110-008 211J1256
9 6301320052 BLOCK 4 845LE-110-009 211G3799
12 6301340876 ROD END 1 845LE-110-012 222B0103
51 6300007510 BOLT,HEX-SCT 4 M3X8 221A0006
52 6300007558 BOLT,HEX-SCT 4 M3X16 221A0010
54 6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
55 6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
56 4110511708 SCR TRS 4X6 2 M4X6 TRS 221E0532
57 6300082296 SET SCREW 4 M4X4 SET 221C0027
58 4111410901 NUT HEX 8 1 M8 221F0089
61 4111412806 WASHER SPR 3 4 SW3 221H0281
62 4111416705 WASHER SPR 5 4 SW5 221H0287
63 4111413100 WASHER SPR 8 1 SW8 221H0291
66 4111413902 WASHER V 3X7X0.5 4 FW3 221H0312
67 4111414107 WASHER V 5X10X1 4 FW5 221H0318
LE-1 list-1
