Cable trees_20211118_090453.pdf - 第12页
Cable trees Page 12 / 15 18.11.2021
Cable trees
Page 11 / 15 18.11.2021
Cable trees
Page 12 / 15 18.11.2021
Cable trees
Page 13 / 15 18.11.2021

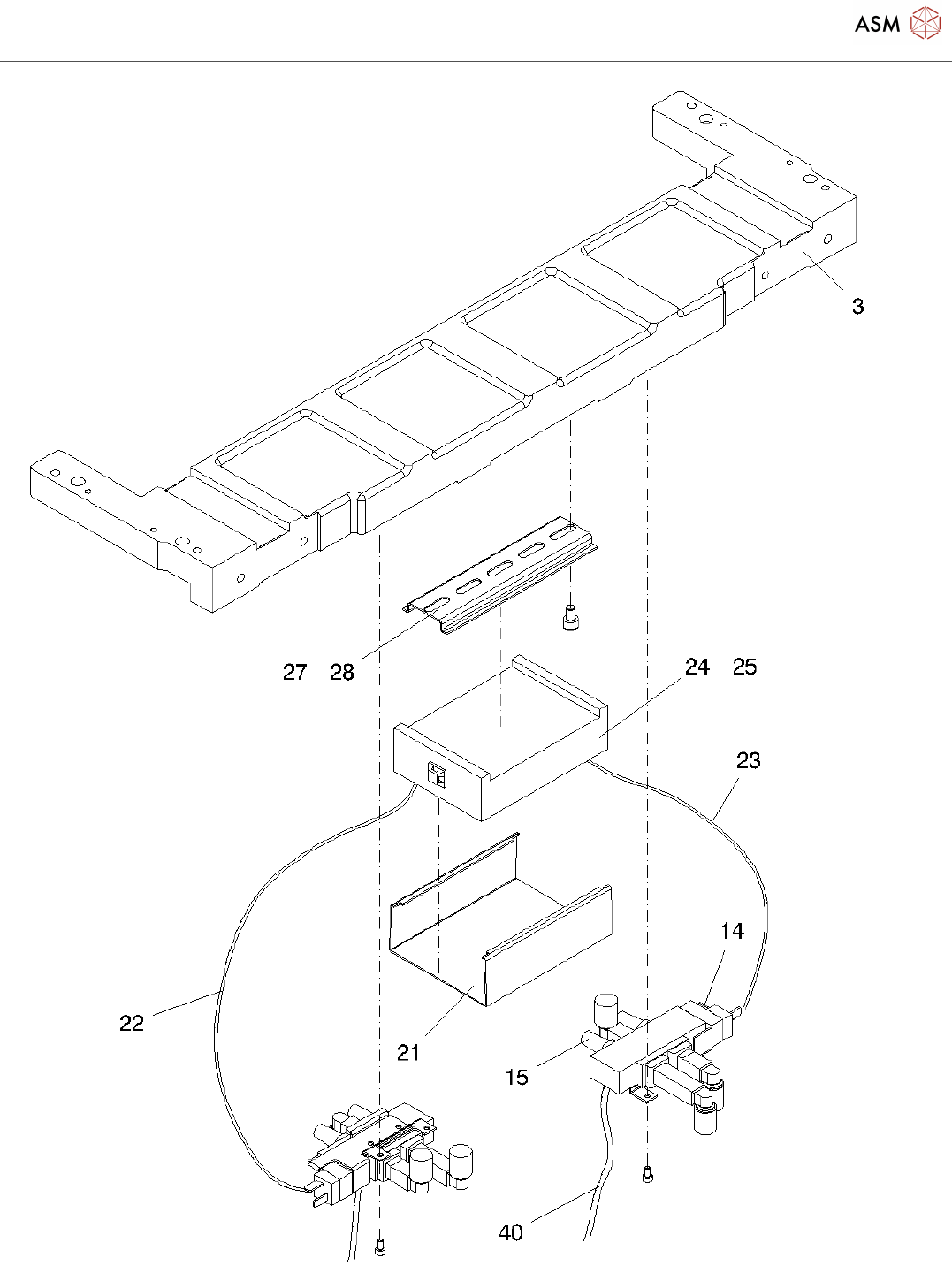

Pos. Item no. Description Part marking
14 00334212-01 KABEL: STEUERPL.
PIPETTENWECHS. - VENTIL
03022264-01 GROUND WIRE DISTRIBUTOR PCB-
BARCODE READER
03016825-01 CABLE: DISTRIBUTOR, PCB
BARCODE SCANNER
SPARE PART
03021617-02 CABLE PCB-BARCODE F. TSP100
03022264-01 GROUND WIRE DISTRIBUTOR PCB-
BARCODE READER
03016825-01 CABLE: DISTRIBUTOR, PCB
BARCODE SCANNER
SPARE PART
03021617-02 CABLE PCB-BARCODE F. TSP100
03016827-01 CABLE DISTRIBUTOR PCB BARCODE
READER
SPARE PART
17 00371916-01 CABLE SONAR PROXIMITY SWITCH /
LIMIT SWITCH
00372253-01 CABLE STOPPER OPTION LONG PCB
03050810-01 CABLE: POWER SUPPLY
COMPONENTS TABLE D3
00345937-01 CABLE: HS50,PWR.
SOCKET,MACHINE (U.S.A.)
SPARE PART
03017740-01 CABLE 9*0,09 COLOURLESS D4,1
LI12YC11Y
03017740-01 CABLE 9*0,09 COLOURLESS D4,1
LI12YC11Y
18 00335306-02 CABLE HS50: START
/STOP/EMERGENCY-STOP
SPARE PART
182 03047845-01 CABLE /S-D PLACEMENTHEAD SPARE PART
183 03047845-01 CABLE /S-D PLACEMENTHEAD SPARE PART
33 03040327-01 CABLE VALVE ADJUSTING UNIT 1
34 03039351-01 CABLE BERO ADJUSTING UNIT 1 SPARE PART
35 03039352-01 CABLE CYLINDER SWITCH
ADJUSTING UNIT 1
SPARE PART
56 03040328-01 CABLE VALVE ADJUSTING UNIT 2
57 03039353-01 CABLE BERO ADJUSTING UNIT 2 SPARE PART
58 03039354-01 CABLE CYLINDER SWITCH
ADJUSTING UNIT 2
89 03032879-02 CYLINDER SENSOR - CABLE ASSY,
COMPLETE
SPARE PART
03041835-01 CABLE EXTENSION STEPPING SPARE PART
