Conveyour Module DC M-C (03120229-02)_20211118_084705.pdf - 第17页
Conveyour Module DC M-C (03120229-02) Page 17 / 24 18.11.2021
Conveyour Module DC M-C (03120229-02)
Page 16 / 24 18.11.2021
Conveyour Module DC M-C (03120229-02)
Page 17 / 24 18.11.2021
Conveyour Module DC M-C (03120229-02)
Page 18 / 24 18.11.2021

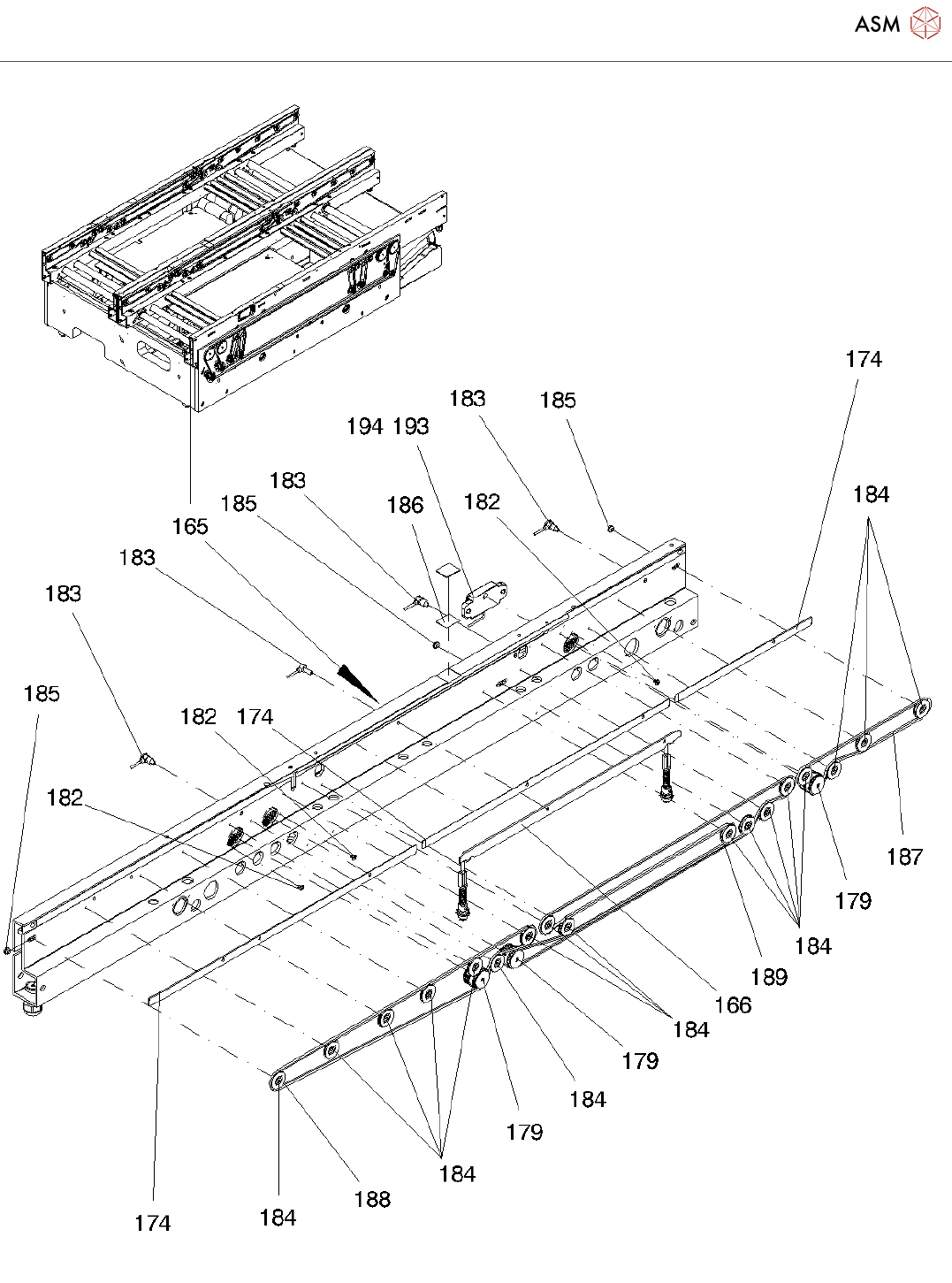

Pos. Item no. Description Part marking
1 03120229-02 CONVEYOR MODULE DC M-C
2 03116179-03 BASE MODULE DC M-C
3 03093387-01 DC-GEAR MOTOR WITH
SYNCHRONIZING DISC SX
SPARE PART
4 03087636-01 BLDC MOTOR BG32X20 W.
GEARBOX/ENCODER
5 03121559-01 TROUGH UPGRADED M-C
6 00356396-01 SCREWLESS END STOP 6MM
249-116
SPARE PART
7 03093294-01 FIBRE OPT.SENSOR WLL180T-M
PRECONFIG SXA
SPARE PART
8 03093295-01 FIBRE OPT.SENSOR WLL180T-F
PRECONFIG SXA
SPARE PART
9 03096011-01 CONVEYOR CONTROL TSP420 A.
BOLTS CPL.
10 03087642S06 CONVEYOR CONTROLLER TSP420
COMPL
SPARE PART
03110653-03 CABLE SET PCB DUAL CONVEYOR
03113836-01 CABLE PCB SENSOR LB11.A1
03113837-01 CABLE PCB SENSOR LB12.A1
03113839-01 CABLE PCB SENSOR LB13.A1
03113840-01 CABLE PCB SENSOR LB14.A1
03113841-01 CABLE PCB SENSOR LB21.A2
03113842-01 CABLE PCB SENSOR LB22.A2
03113843-01 CABLE PCB SENSOR LB23.A2
03113844-01 CABLE PCB SENSOR LB24.A2
03113850-02 SENSOR CABLE BELT MOTOR INPUT
LANE-1
03113851-02 SENSOR CABLE BELT MOT. PLACEM
POS LANE-1
03113852-01 SENSOR CABLE BELT MOTOR
OUTPUT LANE-1
03113854-01 SENSOR CABLE MOTOR WIDTH
ADJUSTMENT L1
03113855-01 SENSOR CABLE BELT MOTOR INPUT
LANE-2
03113856-01 SENSOR CABLE BELT MOT. PLACEM
POS LANE-2
03113857-01 SENSOR CABLE BELT MOTOR
OUTPUT LANE-2
