SIPLACE SmartFeeder 8mm X_20211115_121229.pdf - 第13页

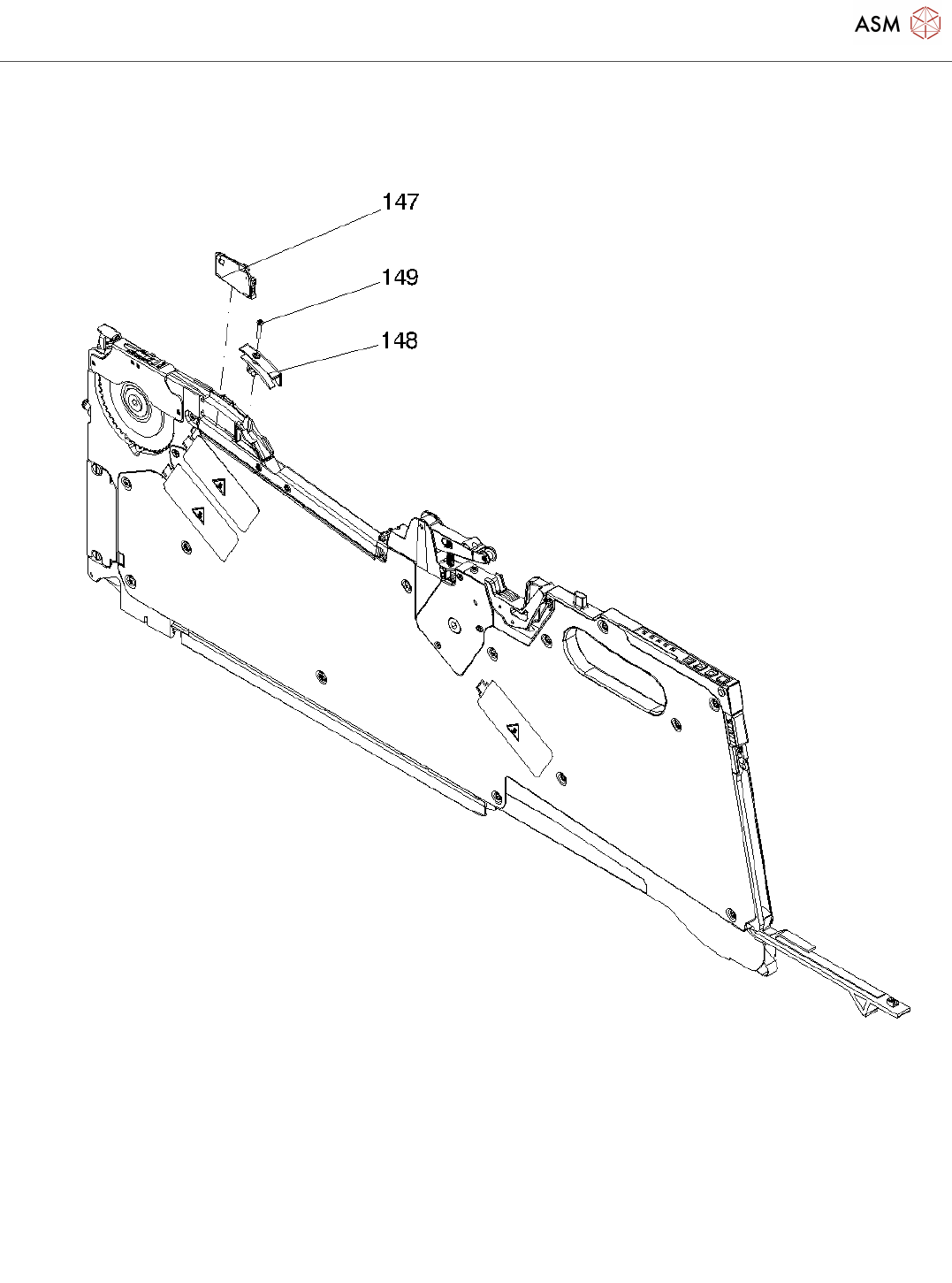

SIPLACE SmartFeeder 8mm X Page 13 / 16 15.11.2021
SIPLACE SmartFeeder 8mm X
Page 12 / 16 15.11.2021
SIPLACE SmartFeeder 8mm X
Page 13 / 16 15.11.2021
SIPLACE SmartFeeder 8mm X
Page 14 / 16 15.11.2021
Pos. Item no. Description Part marking
1 00141370S02 SIPLACE SMARTFEEDER 8MM X
2 03133109-01 SIPLACE SMARTFEEDER 8MM X CPL.
3 03099539-03 SIPLACE SMARTFEEDER 8MM X
4 03104626-03 TAPE DRIVE CPL. X8SMART
5 03005196-01 ROLL, LOCKING X-SERIES SPARE PART
6 03015750-01 ISO 8734 - 3 X 10 - A-ST
7 03019604S01 SLIDING FOIL X-FEEDER SPARE PART
8 03127518S01 EDIF SECONDARY CPL. X8SMART V2 SPARE PART
9 03012683-01 COMPRESSION SPRING D-027 SPARE PART
10 03050957-01 SHOULDER BOLT DIA4X3.15 M3 SPARE PART
11 03042536-01 ISO 4762 - M 2,5 X 12-A2-70 STANDARD PARTS
12 03012488-01 SN 213307-H-M2 X 2.5-A2
13 03103054-01 SPROCKET WHEEL SEALING
X8SMART
SPARE PART
14 03103717-01 SPROCKET WHEEL CPL. X8SMART
15 00388802S01 SMROLE LABELS 9X5 BLACK FLAT
(200 DOT )
CONSUMABLE
16 03050825-01 HOLDING SCREW WEAR PART
17 03099415-02 FOIL DISPOSAL CPL. X8SMART
18 03043774-01 ADJUSTMENT WASHER /D3.1 D15
T0,1
STANDARD PARTS
19 03119123S01 MOTOR CPL. FOIL DISPOSAL
X8SMART
SPARE PART
19 03170813S02 MOTOR FOIL DRIVE W/ 12-BIT
ENCODER
SPARE PART
20 03012488-01 SN 213307-H-M2 X 2.5-A2
21 03071821-01 SN 213307-H-M2,5 X 3-A2-70 STANDARD PARTS
22 03042536-01 ISO 4762 - M 2,5 X 12-A2-70 STANDARD PARTS
23 03023228-01 ISO 7046-2-M2,5 X 6-A2-70-H STANDARD PARTS
24 03050825-01 HOLDING SCREW WEAR PART
25 03102274-01 STUFFING WHEEL KNURLED CPL.
I=50 X8SMART
SPARE PART
26 03106790S01 STRIPPER FOIL DISPOSAL X8SMART SPARE PART
27 03103205-02 FOIL PACKING CPL. X8SMART
28 03100963-04 FOIL BOX W/ TAPE DUCT X8SMART SPARE PART
29 03004081S03 SHAFT D2, FOIL FLAP X8
(1PAC=10EA)
WEAR PART
