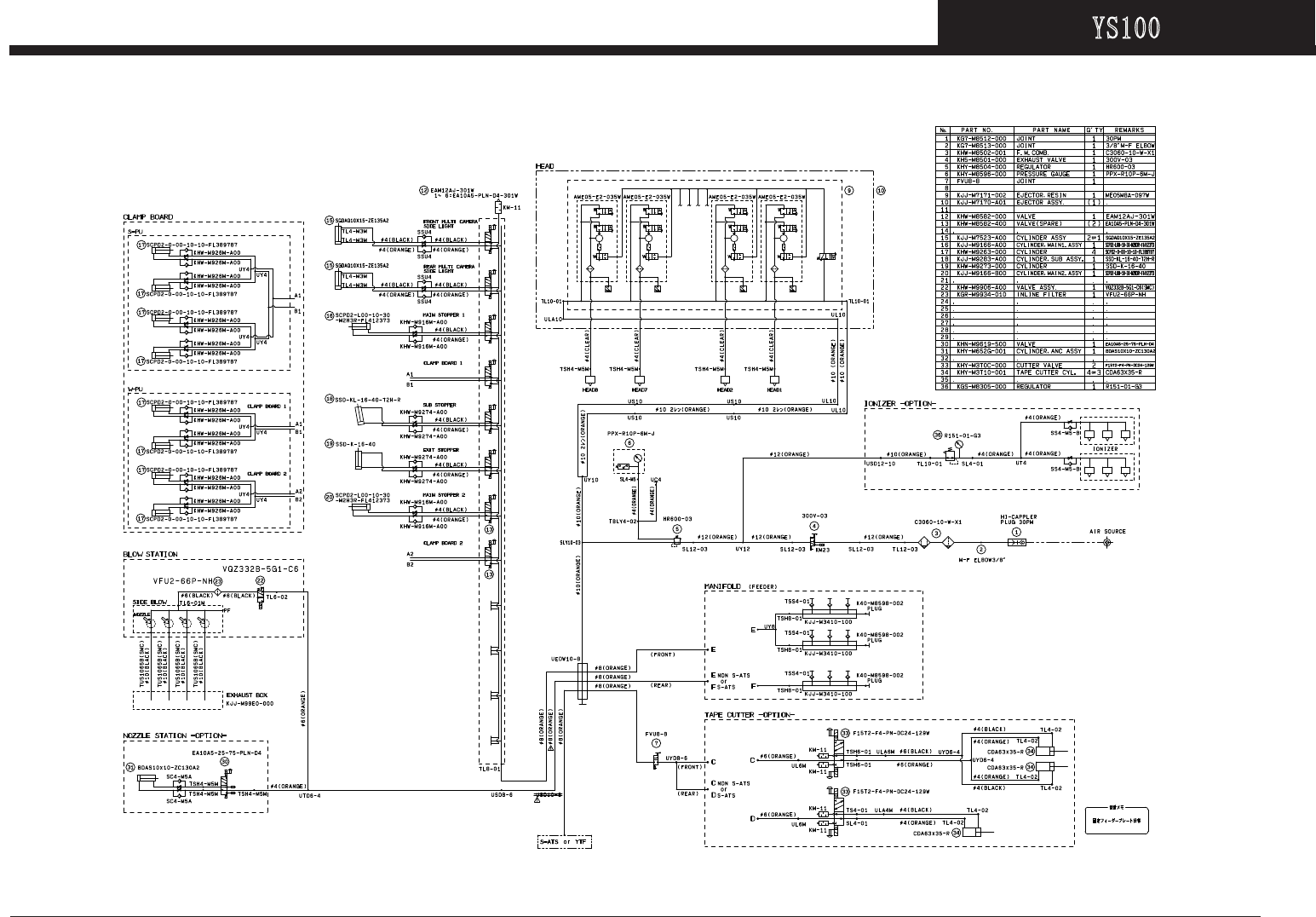

Air circuit (YS100)
PAGE
19
Condential & Proprietary
YS100
H 0 1 3 2 1 2
Air circuit (YS100)FES
W i r i n g p a r t s l i s t
KJJ1001
PAGE
20
Condential & Proprietary
No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks
1 KJJ-M661A-001 HNS,XB11-QS11 1 J0001 39 90K30-544180 HNS,EARTH 1 J0072
2 KJJ-M661L-001 HNS,QF11-TM11 1 J0003 40 90K30-544130 HNS,PE 1300 1 J0073
3 KHY-M661E-000 HNS,TM11-QF31 1 J0004 41 90K30-945070 HNS,EARTH 3 J0075-J0077
4 KHY-M661F-010 HNS,QF31-NF11.GS31 1 J0005 42 90K30-245020 HNS,EARTH 1 J0078
5 KHY-M661G-000 HNS,NF11-KM11 1 J0006 43 90K30-245080 HNS,EARTH 800 1 J0080
6 KHY-M661H-001 HNS,C/R AC230V 1 J0007 44 90K30-444090 HNS,EARTH 1 J0081
7 KHY-M661M-000 HNS,C/R AC100V 1 J0009 45 90K30-245060 HNS,EARTH 2 J0082-J0087
8 KM6-M66M1-102 HNS,TAP CHANGE 10 J0010-J0019 46 90K30-255050 HNS,EARTH 500 3 J0091,J0092
9 KM6-M66M1-202 HNS,TAP CHANGE 1 J0020 47 KJJ-M536A-000 HNS,PE 600 1 J0097
10 KHY-M662A-010 HNS,TC11-QF21 XT21 1 J0021 48 90K30-244035 HNS,FG-CNT.BOX 1 J0099
11 KHW-M66M4-000 HNS,V10 JUMPER 1 J0022 49 KHY-M668A-000 HNS,I/O CMN 1 J0101
12 KHY-M662E-010 HNS,QF21 XT21-GS21 1 J0023 50 KJJ-M668F-000 HNS,I/O CONV CMN 1 J0102
13 KHW-M662G-000 HNS,LCD POWER 1 1 J0024
51 KHY-M66B3-000 HNS,ANC CMN 1 1 J0103
14 KHW-M662G-000 HNS,LCD POWER 1 2 J0024,J0025 52 KJJ-M66RB-000 HNS,FEEDER F1 CMN 1 J0104
15 KGA-M662M-001 HNS,U10 JUMPER 1 J0026 53 KJJ-M66RB-100 HNS,FEEDER R1 CMN 1 J0105
16 KHY-M662F-010 HNS,TM11-TC11 1 J0027
54 KJJ-M66RB-200 HNS,FEEDER CMN 2 1 J0106
17 KHY-M663R-001 HNS,C/R EXT.POWER 1 J0028 55 KJJ-M66RF-200 HNS,FEEDER COM 2 1 J0106,J0107
18 KGA-M662M-001 HNS,U10 JUMPER 1 J0029 56 KJJ-M66RB-200 HNS,FEEDER CMN 2 1 J0107
19 KHW-M66M4-000 HNS,V10 JUMPER 1 J0030
57 KHY-M66X9-000 HNS,TERMINATION 1 J0108
20 KHY-M662E-100 HNS,QF41 XT21-GS22 1 J0031 58 KHY-M66RG-000 HNS,TERMINATION 1 J0108,J0109
21 KJJ-M663E-000 HNS,I/O HEAD DC24V 1 J0042 59 KHY-M66RG-000 HNS,TERMINATION 1 J0109
22 KHY-M663F-000 HNS,Y-FLEX H.PWR EMG 1 J0043 60 KHY-M66X9-000 HNS,TERMINATION 1 J0109
23 KHY-M663G-000 HNS,X-FLEX H.PWR EMG 1 J0044 61 KHY-M66RF-000 HNS,FEEDER I/O 1 J0110,J0111
24 KJJ-M663J-010 HNS,I/O CONV.PWR 1 J0046 62 KHY-M66RF-000 HNS,FEEDER I/O 1 J0111
25 KJJ-M663K-010 HNS,CONV PWR 1 J0047 63 KHY-M66B3-100 HNS,ANC CMN 2 1 J0112
26 KJJ-M66GF-002 HNS,FAN 1 J0048 64 KJJ-M66RF-300 HNS,FEEDER COM 2 1 J0113,J0114
27 KJJ-M663M-000 HNS,MULTI CAM.DC24V 1 J0049 65 KG2-M669R-113 HNS,BUZZER 1 J0119
28 KHY-M663N-000 HNS,ANC POWER 1 J0051 66 KGK-M6680-200 HNS,USB-MEMORY 2M AS 1 J0120
29 KJJ-M664A-000 HNS,GS31-KM12 XT31 1 J0052 67 KHY-M66A1-001 HNS,HEAD SRVB 1 J0121
30 KJJ-M664G-000 HNS,KM12A-RESISTOR 1 J0054 68 KHY-M66A2-000 HNS,Y-FLEX SRV 1 J0122
31 KJJ-M664F-000 HNS,KM12 +48V 1 J0055 69 KJJ-M66A3-000 HNS,X-FLEX SRV 1 J0123
32 KHY-M663V-001 HNS,ANC DC24V 1 J0056 70 KJJ-M66A4-000 HNS,PI1 1 J0124
33 KJJ-M665A-000 HNS,BRAKE SRV2 1 J0061 71 KHY-M66A5-000 HNS,PI2 1 J0125
34 KJJ-M665F-000 HNS,CONV.DRIVER 1 J0062 72 KHW-M66A6-000 HNS,BASE X1P 1 J0126
35 KHW-M665E-000 HNS,CONV. MOTOR 1 J0064 73 KGS-M66A7-000 HNS,Y-FLEX X1P 1 J0127
36 KJJ-M665B-000 HNS,BRAKE SRV1 1 J0066 74 KHW-M66A8-000 HNS,BASE W1P 1 J0128
37 90K30-945035 HNS,EARTH 2 J0069,J0070 75 KHW-M66A9-000 HNS,BASE PUP 1 J0129
38 KV8-M66L1-001 HNS,FG-C/R 1 J0071 76 KHY-M66AA-000 HNS,BASE Y1P 1 J0130
