KLM-1207 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLM-1207
36
37
31
36
37
30
24
27
7
28
14
14
13
29
19
10
35
28
14
19
12
14
13
6
19
19
19
13
24
14
27
14
28
8
34
34
19
17
19
13
33
14
32
10
14
22
6
28
22
11
29
35
12
18
5
26
17
19
34
34
3
1
16
33
22
22
23
11
16
23
25
4
38
2
15
40
21
9
39
20
2
1
Working Area Door
Cover Section
KLM-1207
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLM-M1309-A0 COVER 9 ASSY 1 /
Í
39
90K41-001240 LABEL,WARNING
1
/
2 KLM-M1309-00 COVER 9-1 1 /
40
90K41-001250 LABEL,WARNING
1
/
3 KLM-M130A-00 COVER 9-2 1 /
Í
41
4 KLM-M130B-00 COVER 9-3 1 /
Í
42
5 KL0-M1373-01 BRACKET 1, SCHMEASAL 1 /
Í
43
6 KLM-M1345-00 PLATE,LINK 2 /
Í
44
7 KLM-M134A-00 BRKT. NUT L 1 /
Í
45
8 KLM-M134B-00 BRKT. NUT R 1 /
Í
46
9 KLM-M13E9-00 PLATE,COVER 9 1 /
47
10 KM0-M1331-01 BRACKET, GAS DAMPER 2 /
48
11 KHT-M134A-00 HINGE 2 /
Í
49
12 KGS-M1348-00 GAS,SPRING 2 A
50
13 KHT-M1346-00 BUSH 4 A
51
14 KHT-M1347-00 SPACER 8 A
52
15 KH2-M1324-01 GRIP 1 /
53
16 KJJ-M1348-00 STOPPER 65 2 /
54
17 KGS-M1360-00 BOLT 4 /
Í
55
18 KL0-M1374-00 PLATE 1, SCHMEASAL 1 /
Í
56
19 90990-31J006 BOLT, SHOULDER 8
57
20 90990-46J001 BOLT, THIN HEAD 8
58
21 90990-46J002 BOLT, THIN HEAD 4
59
22 91312-03005 BOLT HEX,SOCKET HEAD 16
60
23 91312-04008 BOLT HEX,SOCKET HEAD 2
61
24 91312-05008 BOLT HEX,SOCKET HEAD 4
62
25 91312-05014 BOLT HEX,SOCKET HEAD 2
63
26 92902-04200 WASHER,PLAIN 2
64
27 92902-05200 WASHER,PLAIN 4
65
28 92902-06200 WASHER,PLAIN 4
66
29 95307-06600 NUT HEXAGON 2
67
30 KLM-M1356-00 PLATE 1,JOINT 1 /
Í
68
31 KLM-M1357-00 PLATE 2,JOINT 1 /
Í
69
32 KW7-M5127-00 SAFETY SWITCH KEY 1 /
Í
70
33 K46-M1374-10 HINGE 2 2 /
Í
71
34 90990-12J002 SCREW, BIN. HEAD W/W 12
72
35 90990-12J006 SCREW, BIN. HEAD W/W 4
73
36 91312-05010 BOLT HEX,SOCKET HEAD 8
74
37 92902-05200 WASHER,PLAIN 8
75
38 KKX-M13D7-00 SEAL 2(YAMAHA) 1 /
76
2
1
Working Area Door
Cover Section
KLM-1207
16
25
25
16
12
2
14
3
14
5
9
40
36
37
39
32
33
29
34
30
35
38
31
5
12
13
17
7
4
24
14
20
19
18
20
19
19
27
23
11
19
9
24
27
9
17
18
19
6
28
7
4
8
21
15
26
19
10
15
20
22
8
26
14
1
2
2

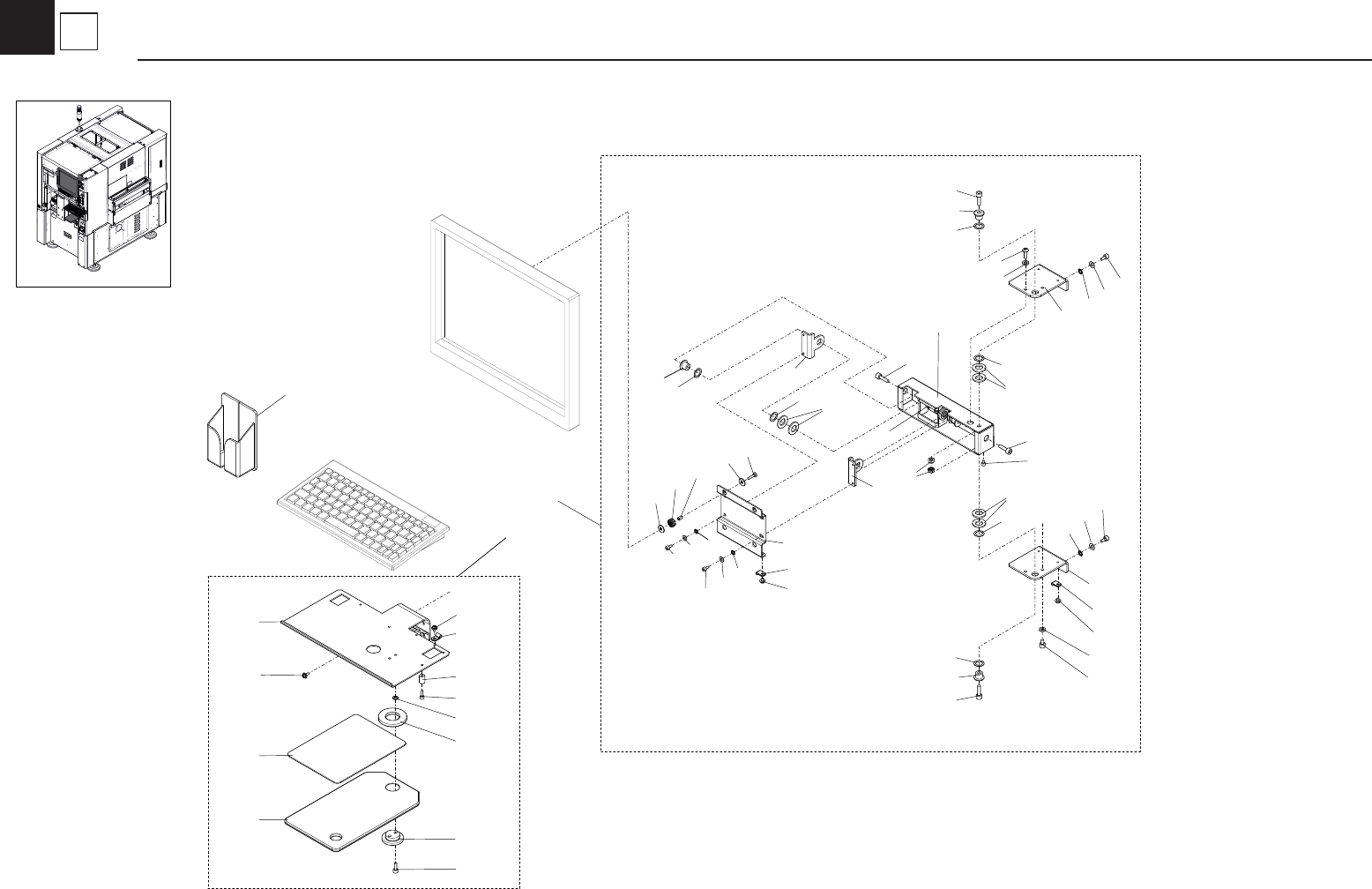

LCD Stay / Bracket Keyboard
Cover Section
