MODEL TCM-X200
0211-003
206
ࠞࡃㇱ COVER SECTION

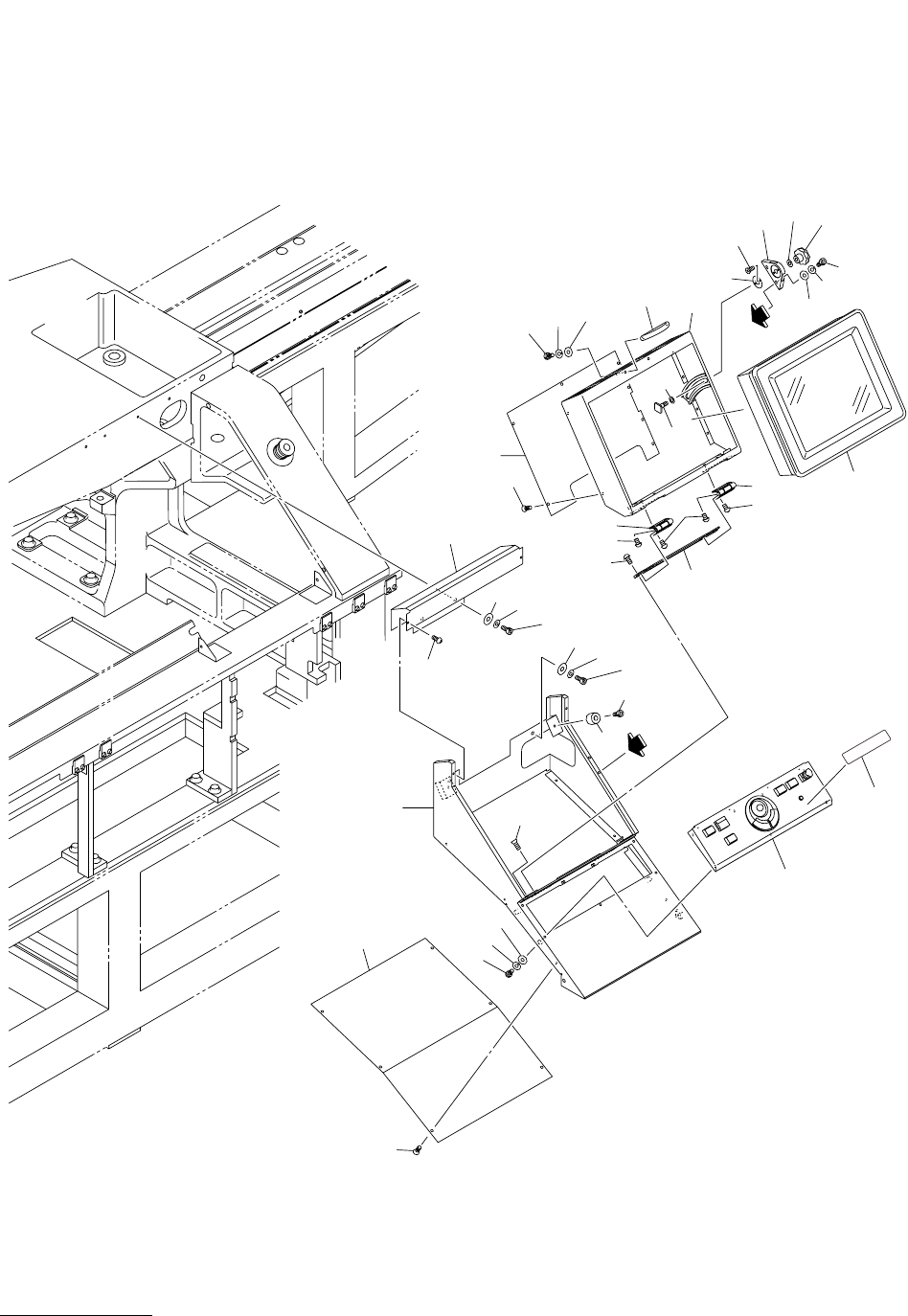

Fig. MA-5 ೨㕙ᠲࡄࡀ࡞ Front Operation Panel
Fig.MA-5
TCM-X200-003
405
417
432
416
415
424
423
422
404
438
414
A
429
401
427
426
425
403
433
412
419
407
420
421
411
409
406
466
430
408
434
410
402
437
A
460
413
418
431
418
413
433
418
428
436
435
MODEL TCM-X200
0304-004
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
207
MA-5
401 630 095 0557 COVER(PANEL) 1 696MA-110-401
402 630 095 0564 COVER(LCD) 1 696MA-110-402
403 630 097 1903 COVER 1 696MA-110-403
404 630 109 6339 SWITCH,KEYBOARD(JOYSTICK) 1 SPB1,LED1,SPB10(LED10),SPB11,
LED11,SPB12(LED12),SPB13(LED13),
SW3 696MA-110-404
405 630 097 7868 COVER 1 696MA-110-405
406 630 097 1286 PIN,GUIDE 1 696MA-110-406
407 630 095 0977 COVER 1 696MA-110-407
408 630 097 2351 HANDLE 1 696MA-110-408
409 630 097 2290 WASHER 1 696MA-110-409
410 630 116 4458 WASHER 1 696MA-110-410
411 630 097 2177 HANDLE(KNOB) 1 696MA-110-411
412 630 116 4441 MECH PARTS(RUBBER) 2 696MA-110-412
413 630 097 2283 HINGE 2 696MA-110-413
414 630 000 7879 BOLT,HEX-SCT 2 696MA-110-414
415 630 000 7756 BOLT,HEX-SCT 2 696MA-110-415
416 411 141 6705 WASHER SPR 5 2 696MA-110-416
417 630 001 0220 WASHER 2 696MA-110-417
418 411 051 1708 SCR TRS 4X6 8 696MA-110-418
419 630 000 7619 BOLT,HEX-SCT 2 696MA-110-419
420 411 141 2905 WASHER SPR 4 2 696MA-110-420
421 411 141 4008 WASHER V 4X9X0.8 2 696MA-110-421
422 630 000 7879 BOLT,HEX-SCT 2 696MA-110-422
423 411 141 3001 WASHER SPR 6 2 696MA-110-423
424 630 001 0237 WASHER 2 696MA-110-424
425 411 042 0703 SCR PAN 3X8 7 696MA-110-425
426 411 086 4408 WASHER SPR 3 7 696MA-110-426
427 411 119 1909 WASHER V 3X7X0.5 7 696MA-110-427
428 411 051 2804 SCR TRS 4X8 4 696MA-110-428
429 411 034 7208 SCR FLT 3X8 4 696MA-110-429
430 630 098 4064 BRACKET 1 696MA-110-430
431 630 095 0472 PLATE 1 696MA-110-431
432 411 140 8304 SCR BIN 4X10 2 696MA-110-432
433 411 035 2707 SCR FLT 4X8 13 696MA-110-433
434 411 141 4503 WASHER V 8X17X1.6 1 696MA-110-434
435 630 000 7534 BOLT,HEX-SCT 2 696MA-110-435
436 411 141 2806 WASHER SPR 3 2 696MA-110-436
437 411 141 3902 WASHER V 3X7X0.5 2 696MA-110-437
438 630 120 7926 NAME PLATE,PARTS 1 696MA-110-438
460 630 085 9300 UNIT,DISPLAY 1 #FP-VM/SVGA-0 696MA-110-460
466 411 002 2600 SCR FLT 3X6 2 696MA-110-466
MODEL TCM-X200
0211-003
208
ࠞࡃㇱ COVER SECTION
Fig. MA-7 ᚻߔࠅ Handrail
Fig.MA-7
TCM-X200-003
4797A-003
606
609
603
643
642
614
644
642
614
648
607
608
647
613
605
648
647
613
607
608
616
616
604
601
643
642
615
644
602
643
642
615
610
644
613
647
649
611
602
642
615
644
601
615
643
642
642
615
644
642
615
642
615
613
647
649
644
642
615
642
615
643
644
642
615
644
642
615
