MODEL TPM-110F/R
0108-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
138
R-3
277 411 051 1708 SCR TRS 4X6 4 748R--210-277
278 411 035 2707 SCR FLT 4X8 8 748R--210-278
279 411 002 2600 SCR FLT 3X6 2 748R--210-279
280 411 113 2407 SCR PAN 4X30 2 748R--210-280
281 411 119 2005 WASHER F 4X8X0.8 2 748R--210-281
282 411 008 1706 WASHER SPR 4 2 748R--210-282
283 411 050 5004 SCR TRS 3X6 8 748R--210-283
MEMO
139
MODEL TPM-110F/R
0108-001
140

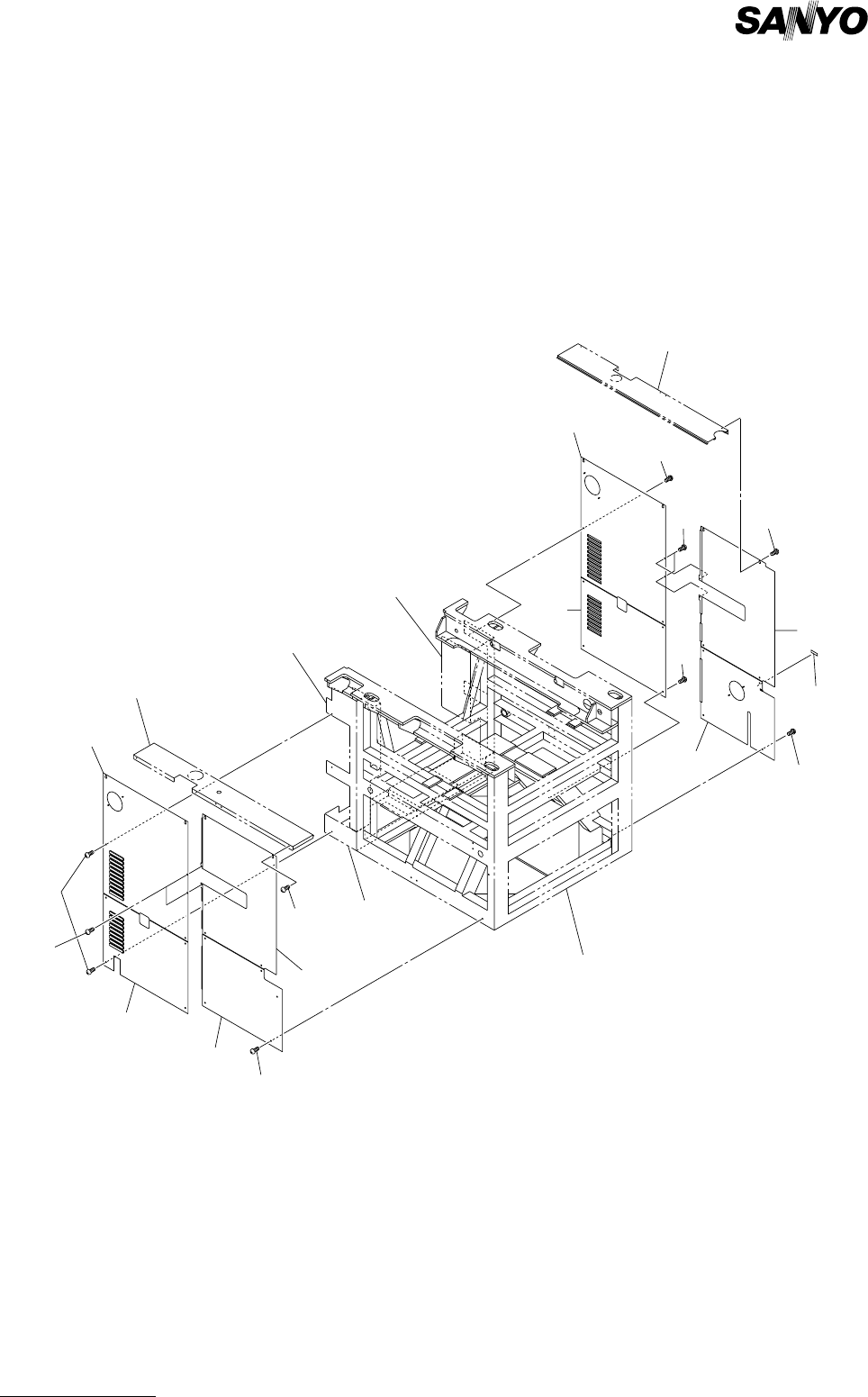

カバー部 COVER SECTION
Fig. R-4 カバー 2 Cover-2
See Fig.R-3
Key No.215
See Fig.R-3
Key No.216
See Fig.K-1
Key No.4
See Fig.R-3
Key No.222
See Fig.K-5
Key No.401
See Fig.K-5
Key No.402
306
361
362
302
301
361
361
361
307
303
361
304
308
361
362
361
305
Fig.R-4
TPM-100F/R
TPM-110F/R
309
